Type: | NLA-410 Agriculture Spraying Drone | Rotor: | 4 |
---|---|---|---|
Hovering Accuracy Horizontal: | +/- 1.5m | Hovering Accuracy Vertical: | +/- 0.5m |
Wind Resistance: | 4~5 | Motor: | 4*100KV |
High Light: | Agriculture Spraying Drone With 4 Rotors,NLA-410 Agriculture Spraying Drone,Pesticide Tank Agriculture Spraying Drone |

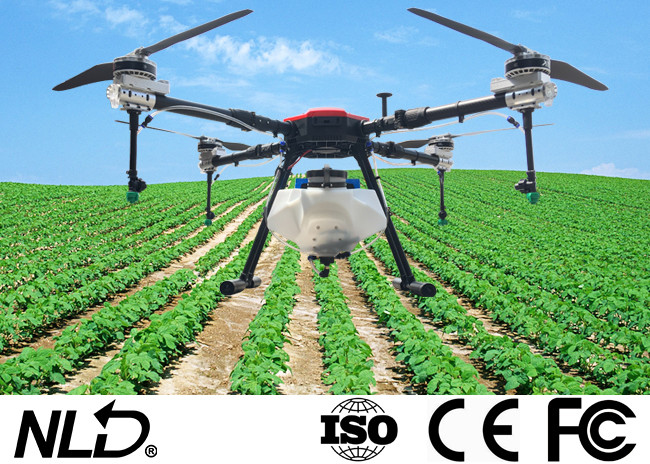

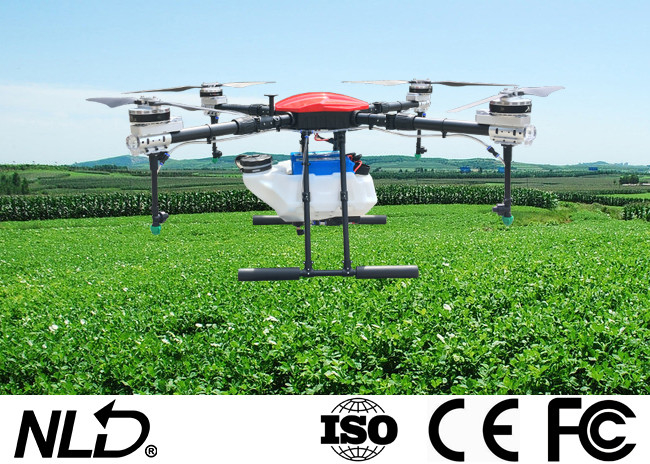

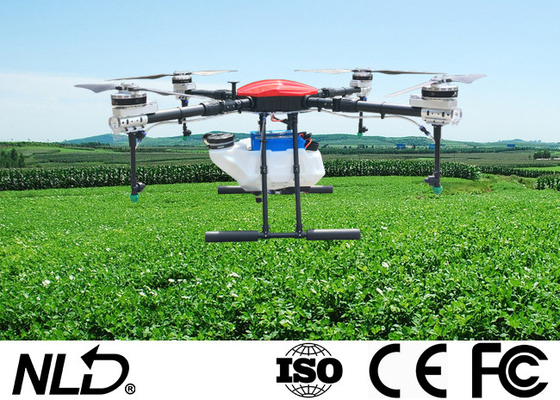

NLA-410 Agriculture Spraying Drone With 4 Rotors Pesticide Tank 10L
Description | NLA410 | NLA416 |
Aircraft Frame | 4 rotors | 4 rotors |
Flight Controller | √ | √ |
GPS Dot Device | √ | √ |
Pesticide Tank | 10L | 16L |
Spray System | Water pump + flow meter + water pipe + nozzle | |
Remote Controller | Remote control + digital transmission 5.5” screen + Android + ground workstation | |
Charger | Dual channel charger | |
Battery | 2*16000mAh | 2*22000mAh |
Aluminum Case | √ | √ |
Quick Details | ||
Flight controller: | 2CPU + 3 IMU | |
Material: | Carbon Fiber + Aviation Aluminum | |
Flight time: | 15~20minutes | |
Spray width: | 3~5m | |
Spray efficiency: | 6~8 Ha/hour | |
Lead time: | 15days | |
Tank: | 10/16/22/30/50L | |
Work mode: | Manual / Workstation |
Model | NLA410 | NLA416 |
Rotor | 4 | 4 |
Hovering accuracy horizontal |
+/- 1.5m | +/- 1.5m |
Hovering accuracy vertical |
+/- 0.5m | +/- 0.5m |
Wind resistance | 4~5 | 4~5 |
Motor | 4*100KV | 4*110KV |
Electronic Speed Control | 80A | 120A |
Motor applicable temperature | -20~50 | -20~50 |
Foldable propeller | 3090 | 3411 |
Pesticide Tank | 10L | 16L |
Take-off Capacity | 28kg | 38kg |
Flying Time (with payload) | 15~20min | 15~20min |
Flying distance | 5000m | 5000m |
Working distance | 2000m | 2000m |
Flying Speed | 0~10m/s | 0~10m/s |
Spray Width | 3~3.5m | 3~3.5m |
Spray Flow | 1.2~2L/min | 1.2~2L/min |
Spray Efficiency | 1000~2100sqm/min | 1000~2100sqm/min |
Expand Size | 1780*1780*567mm | 1848*1848*628mm |
Wheelbase | 1362mm | 1416mm |
Folded Size | 700*658*567mm | 648*671*628mm |
Battery / Quantity | 6S/16000mAh / 2pcs | 6S/22000mAh / 2pcs |
FPV Camera | Optional | Optional |
Obstacle avoidance radar | Optional | Optional |
Terrain following radar | Optional | Optional |
RTK centimeter positioning | Optional | Optional |
1. The whole machine (except for the motor and battery) is dust-proof and waterproof, and the waterproof level reaches IP65. Can be washed directly with water
2. Easy to maintain and repair
3. Efficient
4. Stable
5. Intelligent
6. Quality control
7. Effective
8. Good service
