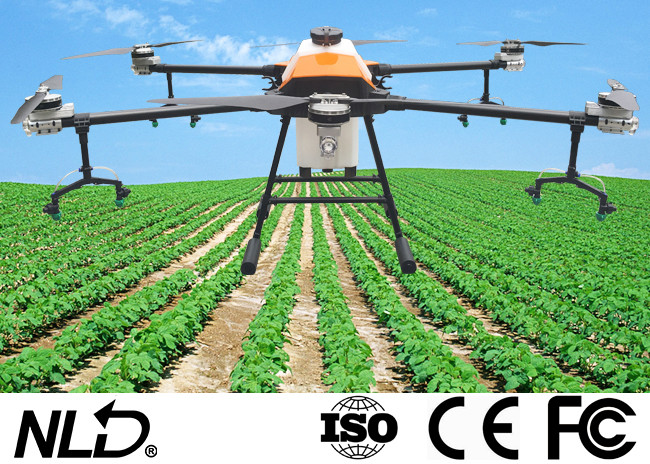

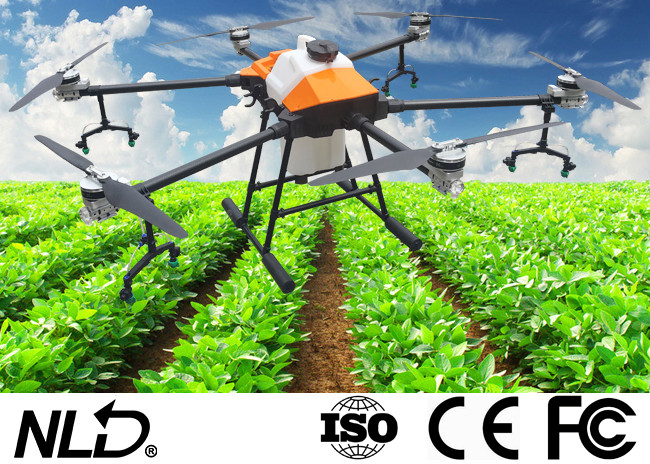

Water Pump 20L Agriculture Spraying Drone 22000mAh NLB - 620 6 Rotors

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NLB-620
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Aluminum Box
Delivery Time: 15~25 days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month.
Type: Agriculture Spraying Drone Aircraft Frame: 6 Rotors
Pesticide Tank: 20L Spray System: Water Pump + Flow Meter + Water Pipe + Nozzle
Charger: Dual Channel Charger Battery: 14S 22000mAh
High Light:

Water Pump Agriculture Spraying Drone


Agriculture 6 Rotors Spraying Drone


22000mAh Agriculture Spraying Drone

Agriculture Spraying Drone NLB-620 Sprayer drone 6 rotors 20L


Quick Details

Flight controller: 2CPU + 3 IMU

Remote Controller: Remote control + digital transmission 5.5” screen + Android + ground workstation

Spray System: Water pump + flow meter + water pipe + nozzle

Charger: Dual channel charger


Agricultural drones let farmers see their fields from the sky. Such an aerial view can reveal many problems, such as irrigation, soil change, pest and fungal infection. The multispectral images can show the near-infrared view and visible spectrum view, so as to show the farmers the difference between healthy plants and unhealthy plants, and this difference can not be clearly seen with the naked eye. Thus, these views can be used to help evaluate the growth and yield of crops.


Model NLB420 NLB620 NLB626 NLB630
Rotor 4 6 6 6

Hovering accuracy


+/- 1.5m +/- 1.5m +/- 1.5m +/- 1.5m

Hovering accuracy


+/- 0.5m +/- 0.5m +/- 0.5m +/- 0.5m
Wind resistance 4~5 4~5 4~5 4~5
Motor 4*100KV 6*110KV 6*100KV 6*100KV
Electronic Speed Control 150A 150A 150A 150A
Motor applicable temperature -20~50 -20~50 -20~50 -20~50
Foldable propeller 3612 3411 3612 3612
Pesticide Tank 20L 20L 26L 30L
Take-off Capacity 42kg 54kg 63kg 63kg
Flying Time (with payload) 15~20min 15~20min 15~20min 15~20min
Flying distance 5000m 5000m 5000m 5000m
Working distance 2000m 2000m 2000m 2000m
Flying Speed 0~10m/s 0~10m/s 0~10m/s 0~10m/s
Spray Width 3.5~4m 3.5~4m 3.5~4m 3.5~4m
Spray Flow 1.2~2L/min 1.2~2L/min 1.2~2L/min 1.2~2L/min
Spray Efficiency 1500~2400sqm/min 1500~2400sqm/min 1500~2400sqm/min 1500~2400sqm/min
Wheelbase 2029mm 2018mm 2018mm 2018mm
Folded Size 1150*600*700mm 1150*600*700mm 1150*600*700mm 1150*600*700mm
Battery / Quantity 14S/22000mAh 14S/22000mAh 14S/25000mAh 14S/28000mAh
FPV Camera Optional Optional Optional Optional
Obstacle avoidance radar Optional Optional Optional Optional
Terrain following radar Optional Optional Optional Optional
RTK centimeter positioning Optional Optional Optional Optional


Workshop display

Water Pump 20L Agriculture Spraying Drone 22000mAh NLB - 620 6 Rotors 0

Founded in 2006, NEWLANDLE is a high-tech enterprise specializing in the R&D, manufacture, sales and service of industrial-grade UAV systems. We manufacture and supply all kind of Agriculture drone, Industrial drone and Camera drone, we establish R&D and production workshop in different countries, we are committed to becoming the leading brand of industrial-grade drones in the world.
