| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | NSA-622 |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Aluminum Box |
| Delivery Time: | 15~25 days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 100sets/month. |
| Type: | Fertilizer Spraying Drone With FPV Camera | Flying Time (with Payload): | 10~15min |
|---|---|---|---|
| Feed Tank: | 22L | Motor: | 6*100KV |
| Solid Particles: | 0.5~6mm | Folded Size: | 1102*979*600mm |
| High Light: | Take Off Capacity Fertilizer Spraying Drone,42kg Fertilizer Spraying Drone,Fertilizer Spraying Drone With FPV Camera |
||

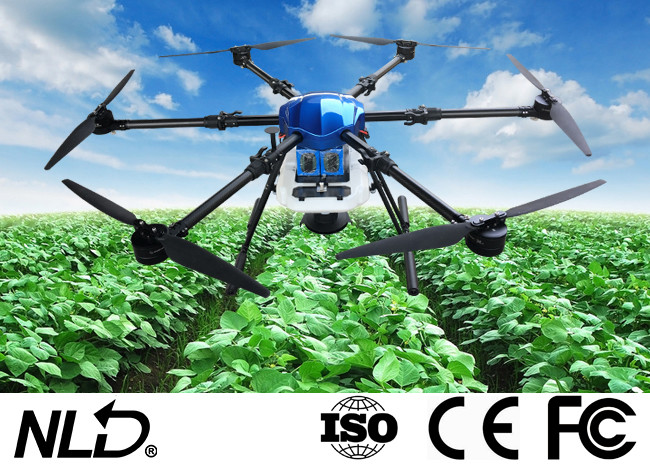

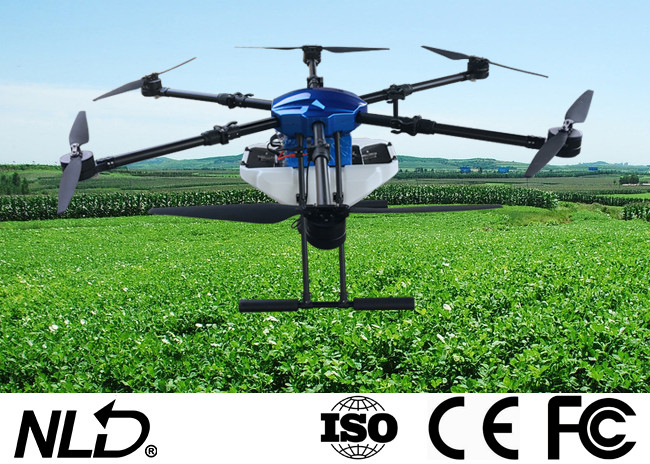

Fertilizer Spraying Drone Take-off Capacity 42kg With FPV Camera
| Model | NSA622 |
| Feed Tank | 22L |
| Rotor | 6 |
|
Hovering accuracy horizontal |
+/- 1.5m |
|
Hovering accuracy vertical |
+/- 0.5m |
| Wind resistance | 4～5 |
| Motor applicable temperature | -20～50℃ |
| Electronic Speed Control | 80A |
| Flying Speed | 0~10m/s |
| Paddle | 3090 |
| Spread Distance | 2~5m |
| Motor | 6*100KV |
| Flying Time (with payload) | 10~15min |
| Flying distance | 5000m |
| Working distance | 2000m |
| Wheelbase | 1648mm |
| Solid particles | 0.5~6mm |
| Expand Size | 2428*2428*600mm |
| Take-off Capacity | 42kg |
| Folded Size | 1102*979*600mm |
| Battery / Quantity | 6S 22000mAh / 2pcs |
| Spreading Width | 3~6m |
| Obstacle avoidance radar | Optional |
| RTK centimeter positioning | Optional |
| Terrain following radar | Optional |
| FPV Camera | Optional |
Qulick Detail:
Other Models
| Model | NSA410 | NSA422 | NSA610 |
| Rotor | 4 | 4 | 6 |
|
Hovering accuracy horizontal |
+/- 1.5m | +/- 1.5m | +/- 1.5m |
|
Hovering accuracy vertical |
+/- 0.5m | +/- 0.5m | +/- 0.5m |
| Wind resistance | 4～5 | 4～5 | 4～5 |
| Motor | 4*100KV | 4*110KV | 6*180KV |
| Electronic Speed Control | 80A | 120A | 80A |
| Motor applicable temperature | -20～50℃ | -20～50℃ | -20～50℃ |
| Paddle | 3090 | 3411 | 2388 |
| Feed Tank | 10L | 22L | 10L |
| Take-off Capacity | 28kg | 38kg | 30kg |
| Flying Time (with payload) | 10~15min | 10~15min | 10~15min |
| Flying distance | 5000m | 5000m | 5000m |
| Working distance | 2000m | 2000m | 2000m |
| Flying Speed | 0~10m/s | 0~10m/s | 0~10m/s |
| Spreading Width | 3~6m | 3~6m | 3~6m |
| Spread Distance | 2~5m | 2~5m | 2~5m |
| Solid particles | 0.5~6mm | 0.5~6mm | 0.5~6mm |
| Expand Size | 1780*1780*567mm | 1848*1848*628mm | 1992*1992*562mm |
| Wheelbase | 1362mm | 1416mm | 1407mm |
| Folded Size | 700*658*567mm | 648*671*628mm | 945*848*562mm |
| Battery / Quantity | 6S/22000mAh / 2pcs | 6S/22000mAh / 2pcs | 6S/22000mAh / 2pcs |
| FPV Camera | Optional | Optional | Optional |
| Obstacle avoidance radar | Optional | Optional | Optional |
| Terrain following radar | Optional | Optional | Optional |
| RTK centimeter positioning | Optional | Optional | Optional |
Workshop
