9 Power System XRotor UAV Parts Combo 110 KV Waterproof Rating IPX7

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: XRotor X9
Minimum Order Quantity: 2 sets
Price: Negotiable
Packaging Details: Carton
Delivery Time: 15~25 days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 2000sets/month.
Type: XRotor X9 Waterproof Rating IPX7 KV Rating: 110 KV
Stator Size: 96* 16mm Bearing: Imported Waterproof Bearing
Mounting Holes For Nozzle: φ28.4mm-2*M3 Recommended Takeoff Weight: 7-9.5kg/Axis (46V, Sea Level)
High Light:

XRotor 9 Power System UAV Parts

,

Waterproof 9 Power XRotor

,

110 KV Power XRotor

UAV Parts XRotor 9 Power System Combo Max. Thrust 19.2kg/Axis



Specifications

Product Name XRotor 9 Power System Combo
Specifications ESC
Max. Thrust 19.2kg/Axis (46V, Sea Level) Recommended LiPo Battery 6-12S LiPo
Recommended Takeoff Weight 7-9.5kg/Axis (46V, Sea Level) PWM Input Signal Level 3.3V/5V(Compatible )
Recommended LiPo Battery 12S (LiPo) Throttle Signal Frequency 50-500Hz
Operating Temperature -20-55°C Operating Pulse Width 1100- 1940us(Fixed or cannot be Programmed)
Combo Weight 1400g Max. Input Voltage 52.2V
Waterproof Rating IPX7 Max. Input Current (Cont.) 120A(w/ Good Heat Dissipation)
Motor Max. Peak Current (10s) 150A(w/ Good Heat Dissipation)
KV Rating 110 KV BEC No
Stator Size 96* 16mm Mounting Holes for Nozzle φ28.4mm-2*M3
Tube Diameter φ40 Propeller
Bearing Imported Waterproof Bearing Diameter x Pitch 34.7x11 inch



Introduction

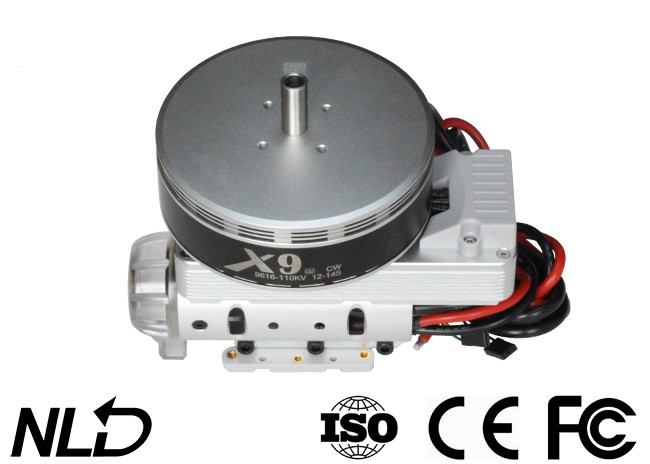

Integrated Structure
  • The x9B power system combo with an light-weight structure design integrates motor, ESC and motor mount together to make the installation & use simple and easy.
  • (Note: the carbon fber tube with a diameter of 40mm is needed here)
More Smart & Compatible
  • Smart upgrades allow the x9B power system combo to have a smoother operation and a better compatibility with various flight controllers.
  • Programmable items like motor direction, response rate, light color, brake guarantee a more stable and reliable performance.
Super Waterproof
  • The x9B power system combo upgrades its waterproof design by adopting an enclosed. motor and a fully-sealed ESC with waterproof & anti-corrosive connect. It’s waterproof to lPX7 standard and applicable to different working/weather conditions
Auxiliary Functional Screw Holes & Wire
  • The screw holes reversed (for installing and fixing nozzle) at the bottom of the x9B power system combo and the built-in brushed centrifugal nozzle ESC (which can be connected to the nozzle via the wire) simplifies the installation for more agricultural drones.
Outstanding Heat-dissipating & Impact-resistant Design
  • The integrated design, which increases the area for heat conduction to allow the use of a higher power (/input), combined with the centrifugal fan on the motor rotor make the operation of the x9B power system combo more reliable. The impact-resistant design beneath the ESC absorbs impact to protect the motor & ESC and reduce damage to the combo caused by crashes.

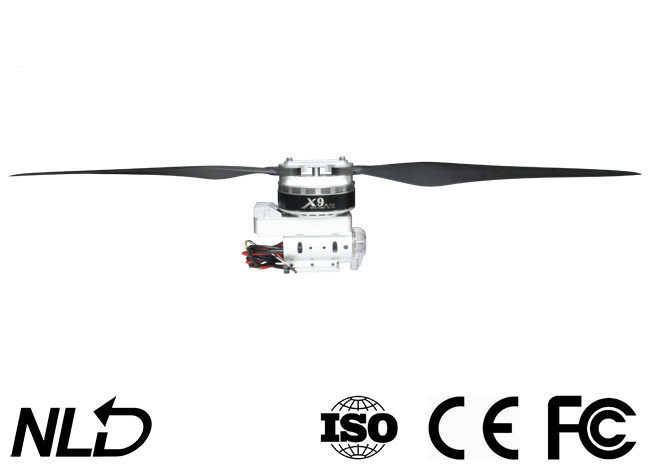

Super Big Load
  • The maximum thrust per axis can reach 22.5kg when pairing the x9B power system combo which features a FOC (Field Oriented Control) ESC with a 34-inch fold. able propeller; this combo is applicable to (7-9.5kg/axis) heavy-duty drones like a quadcopter with a load of 16kg.
