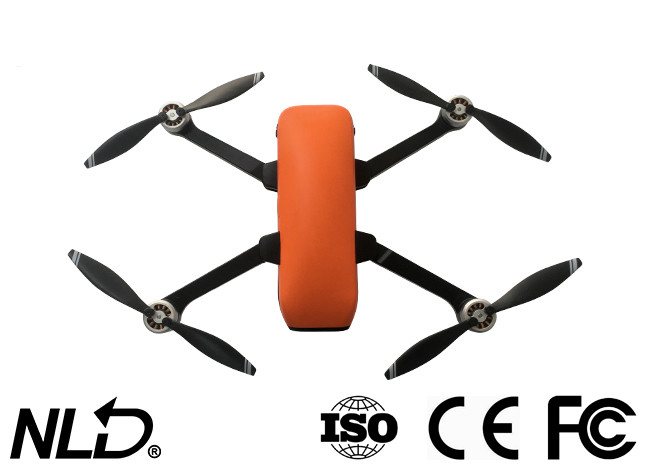

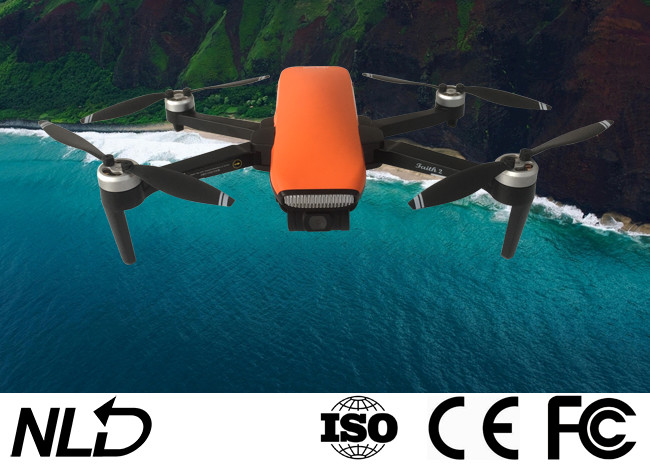

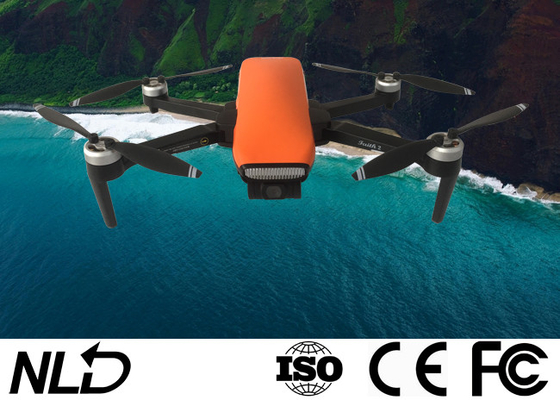

GLONASS GPS Four Axis Aerial Drone Aerial Photography Ambarella A12 SONY CMOS Sensor

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NTA-CFLY
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Box
Delivery Time: 15~25 days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month.
Type: NTA-CFLY Aerial Camera Drones Size(Fold): 170*108*74mm(L*W*H)
Size(Unfold): 180*255*74mm(L*W*H) Wheelbase: 280mm
Weight: 515g Max Service Ceiling Above Sea: 5000m
High Light:

GLONASS gps four axis aerial drone


Ambarella A12 gps four axis aerial drone


SONY CMOS Sensor aerial photography drones

NTA-CFLY Aerial Camera Drones With Ambarella A12 SONY CMOS Sensor


Size(Unfold) 180*255*74mm(L*W*H)



Wheelbase 280mm
Weight 515g
Max Descent Speed Clam mode: 1.5m/s
Normal mode: 1.5m/s
Sport mode: 2m/s
Max Ascent Speed

Clam mode: 2m/s

Normal mode: 2m/s
Sport mode: 5m/s
Max Speed Clam mode: 5m/s

Normal mode: 10m/s

Sport mode: 19m/s

Max Service Ceiling Above Sea 5000m
Operating Temperature Range 0℃-40℃
Max Fight Time 35mins
Maximum Flight Height 120m(Maxumum 500m(Need to change setting on app))
Satellite Positioning Systems GPS/GLONASS
Hover Accuracy Range

Vertiacl: +/-0.5m±0.2m(ultrasonic system, optical flow system works)

Horizonal: +/-1.5m±0.3m(ultrasonic system, optical flow system works)
Camera (Sensor SONY CMOS)
Sensor Ambarella A12, SONY CMOS
Video Recording Resolution 3840*2160
Supported File Systems FAT32(<=32GB)/exFAT(>32GB)
Operating Temperature Range 0℃-40℃
Image Size 5120*3840(20MP)
Maximum Video Bit 60Mbps
Supported SD Cards Micro SDTM Max capacity: 128GB, UHS-I Speed Grade 3 rating required
Shooting mode Single shot
Video MP4
Photo JPEG
3-Axis Gimbal (Fixed Height 3-Axis Micro Gimbal)
Controllable Pitch: -90°-0°
  • Pitch: +30/-120°
  • Roll: ±35°
  • Yaw: ±30°
Ultrasonic altitude system
Operating Except for surface of water or ground of absorbing material(such as thick carpet)
Altitude Range 0.2-4.5m
Velocity Range ≤3m/s
Mobile APP C-Fly 2
Aerial Photography mode dronie, rocket, circle, helix
FPV Transmission Distance 5000m
Required Operating Systems Andrio 5.0 above, ISO 9.0 above
Live View Quality 720P
Optical flow system
Velocity Range ≤1.5m/s at 6.6 ft (2m) above ground
Altitude Range 0.2-4.5m
Operating Environment Surface with clear pattern and adequate lighting(lux>15)
Output 4.35V 0.7A*3
Rated Power 10W
Input 5V 2A(recommend)
Capacity 3100mAh
Net Weight 196g
Voltage 11.4V
Charging Temperature Range 0℃-40℃
Max charging power 35W
Battery Type LiPo 3S
Charge time <5h(with 5V 2A adapter)
Energy 35.34Wh
Remote Controller
Transmitter Power(EIRP) CE: ≤14dBm
SRRC: ≤20dBm
FCC: ≤23dBm
Operating Frequency 5.8GHz
Capacity 2600mAh
Battery Power 9.62Wh
Maximun Charge Power 5W
Battery Capacity(built-in) 3.7V
Max Transmission Distance 5000m
Operating Temperature Range 0℃-40℃
Operating Current/Voltage 500mA @ 3.7V
Charge USB
Battery Type LiPo 18650 1S
Charge Time <3h(with 5V 2A adapter)
Supported Mobile Device Size Thickness Supported: 6.5-8.5mm
