| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | NLB420 |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Box |
| Delivery Time: | 15~25 days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 100sets/month. |
| Type: | Agriculture Spraying Drone | Aircraft Frame: | 4 Rotors |
|---|---|---|---|
| Pesticide Tank: | 20L | Hovering Accuracy Horizontal: | +/- 1.5m |
| Hovering Accuracy Vertical: | +/- 0.5m | Motor Applicable Temperature: | -20～50 |
| High Light: | UAV crop spraying drone,4 Rotors crop spraying drone,Agriculture drone for spraying pesticides |
||

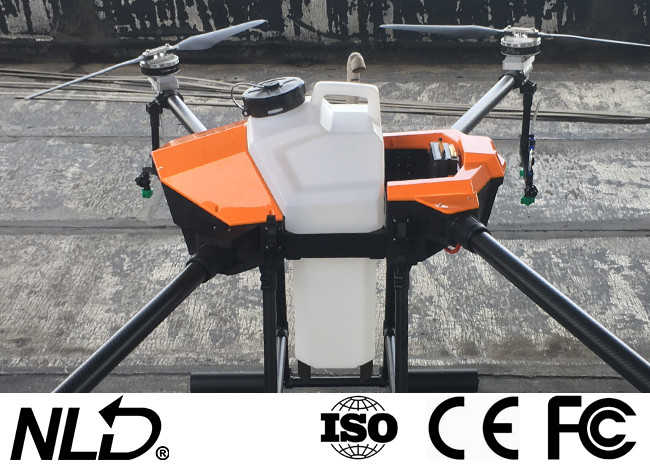

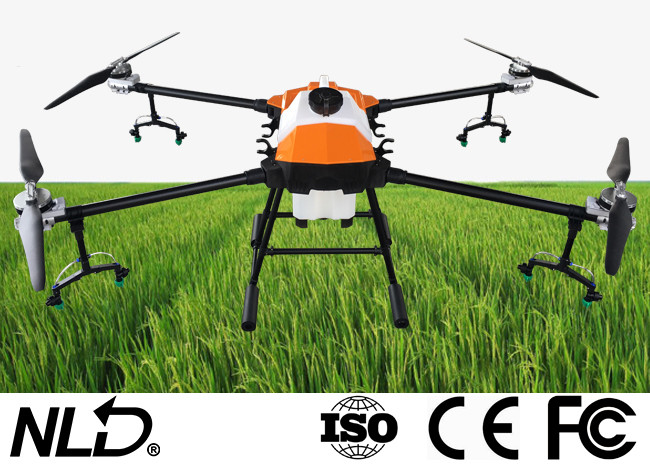

NLB-420 Agriculture Spraying Drone UAV For Crop Sprayer With 4 Rotors
| Model | NLB420 |
| Rotor | 4 |
|
Hovering accuracy horizontal |
+/- 1.5m |
|
Hovering accuracy vertical |
+/- 0.5m |
| Wind resistance | 4～5 |
| Motor | 4*100KV |
| Electronic Speed Control | 150A |
| Motor applicable temperature | -20～50 |
| Foldable propeller | 3612 |
| Pesticide Tank | 20L |
| Take-off Capacity | 42kg |
| Flying Time (with payload) | 15~20min |
| Flying distance | 5000m |
| Working distance | 2000m |
| Flying Speed | 0~10m/s |
| Spray Width | 3.5~4m |
| Spray Flow | 1.2~2L/min |
| Spray Efficiency | 1500~2400sqm/min |
| Wheelbase | 2029mm |
| Folded Size | 1150*600*700mm |
| Battery / Quantity | 14S/22000mAh |
| FPV Camera | Optional |
| Obstacle avoidance radar | Optional |
| Terrain following radar | Optional |
| RTK centimeter positioning | Optional |
Why choose NEWLANDLE sprayer drone?
Waterproof
The whole machine (except for the motor and battery) is dust-proof and waterproof, and the waterproof level reaches IP65. Can be washed directly with water
Stable
Flight controller Dual CPU configuration, Triple redundant IMU, Dual redundant barometer;
Efficient
11-18 acres/hour.
Effective
Each nozzle is under the propeller, the chemical fog can be directly pressed to all levels of the crop by the strong air flow generated by the propellers.
Intelligent
a). One-key take off & land, autonomous fly with way points controlled by Mobile phone APP;
b). Low voltage, no signal, return automatically;
c). Fail safe protection;
d). Spray flow control;
e). Intelligent automatic obstacle avoidance;
f). Intelligent terrain following;
g). FPV Camera;
h). RTK centimeter positioning.
Quality control
Every drone is tested and has to pass through a rigorous quality control test to confirm it meets the highest standards in performance and durability.
Easy to maintain and repair
We have office and engineer in Indonesia and India, we supply local service in this countries. We always utilize high grade components. The parts are interchangeable and can be replaced by customer self, therefore the maintenance costs are very low.
Good service
Customers can get free training in our company; Remote on-line video technical support; One year warranty for drone frame and three months for wearing parts.
APP Ground Workstation
1. Android mobile phone ground workstation, Control and adjust drone’s flying parameter, provide google map, check FPV video.
2. Support hand held GPS dot device,RTK dot device,Drone GPS dot and Map for choosing, set up Automatic, semi-automatic AB working mode, flying height, spray mode, flight line spacing, flying speed, Terrain following, automatic obstacle avoidance, course adjustment, fail-sail back.
3. Query job record, flight time, spray width, dose etc.
