| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | NLB-420 |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Box |
| Delivery Time: | 15~25 days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 100sets/month. |
| Type: | Agriculture Spraying Drone For Plant Protection | Take-off Capacity: | 42kg |
|---|---|---|---|
| Charger: | Dual Channel Charger | Electronic Speed Control: | 150A |
| Foldable Propeller: | 3612 | Wheelbase: | 2029mm |
| High Light: | Agricultural spraying drone With Remote Controller,150A Agricultural spraying drone,Agriculture uav For Plant Protection |
||

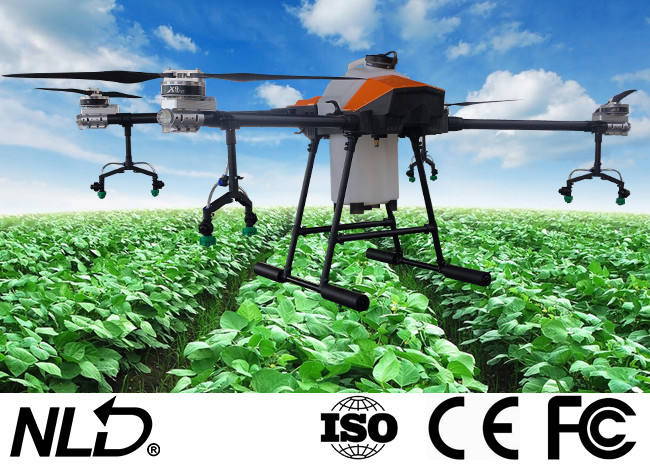

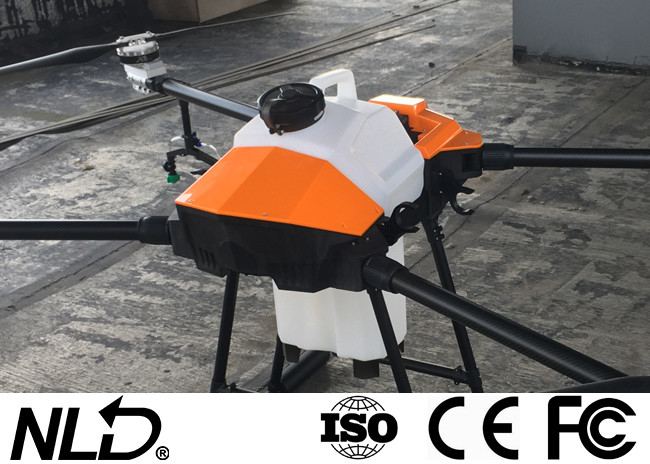

Agriculture Spraying Drone for Plant Protection with Remote Controller
| No. | Description | NLB420 | NLB620 | NLB626 | NLB630 |
| 1 | Aircraft Frame | 4 rotors | 6 rotors | 6 rotors | 6 rotors |
| 2 | Flight Controller | √ | √ | √ | √ |
| 3 | GPS Dot Device | √ | √ | √ | √ |
| 7 | Pesticide Tank | 20L | 20L | 26L | 30L |
| 8 | Spray System | Water pump + flow meter + water pipe + nozzle | |||
| 9 | Remote Controller | Remote control + digital transmission 5.5” screen + Android + ground workstation | |||
| 10 | Charger | Dual channel charger | |||
| 11 | Battery | 14S 22000mAh | 14S 22000mAh | 14S 25000mAh | 14S 28000mAh |
| 12 | Aluminum Case | √ | √ | √ | √ |
|
Quick Details |
|
| Flight controller: | 2CPU + 3 IMU |
| Material: | Carbon Fiber + Aviation Aluminum |
| Flight time: | 15~20minutes |
| Spray width: | 3~5m |
| Spray efficiency: | 11~18 Ha/hour |
| Lead time: | 15days |
| Tank: | 20/26/30L |
| Work mode: | Manual / Workstation |
|
Product Description |
|
|
Hovering accuracy horizontal |
+/- 1.5m |
|
Hovering accuracy vertical |
+/- 0.5m |
| Foldable propeller | 3612 |
| Spray Flow | 1.2~2L/min |
| Motor | 4*100KV |
| Spray Efficiency | 1500~2400sqm/min |
| Motor applicable temperature | -20～50 |
| Flying distance | 5000m |
| Electronic Speed Control | 150A |
| Battery / Quantity | 14S/22000mAh |
| Flying Time (with payload) | 15~20min |
| Wheelbase | 2029mm |
| Working distance | 2000m |
| Flying Speed | 0~10m/s |
| Spray Width | 3.5~4m |
| Wind resistance | 4～5 |
| Take-off Capacity | 42kg |
| Folded Size | 1150*600*700mm |
| Terrain following radar | Optional |
| RTK centimeter positioning | Optional |
| Obstacle avoidance radar | Optional |
| FPV Camera | Optional |
|
Ground Defense Radar |
|
Ground defense radar uses millimeter-wave radar technology. Through the continuous scanning of the radar, the drone can sense the terrain change of the flight direction and adjust the flight height in time according to the terrian and the crop height to realize the ground defense flight and ensuring uniform spraying in flight. Ground defense radar has stable detection performance and good environment practicality, strong anti-interference ability, not affected by light, far detection distance, with all-weather and all-day characteristics. |
|
Characteristic: 1. Strong penetration, not affected by light. 2.Strong anti-interference ability and good environmental applicability. 3. Stable performance with detection range of 15m. 4. Power saving and efficient, total power consumption is only 1.5W 4. 5. All day work. |
