| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | NLB-626 |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Box |
| Delivery Time: | 15~25 days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 100sets/month. |
| Type: | Agriculture Spraying Drone With FPV Camera | Aircraft Frame: | 6 Rotors |
|---|---|---|---|
| Pesticide Tank: | 26L | Take-off Capacity: | 63kg |
| Motor: | 6*100KV | Flying Distance: | 5000m |
| High Light: | insecticide spraying drone With FPV Camera,6 rotors insecticide spraying drone,Remote Control farm drone sprayer |
||

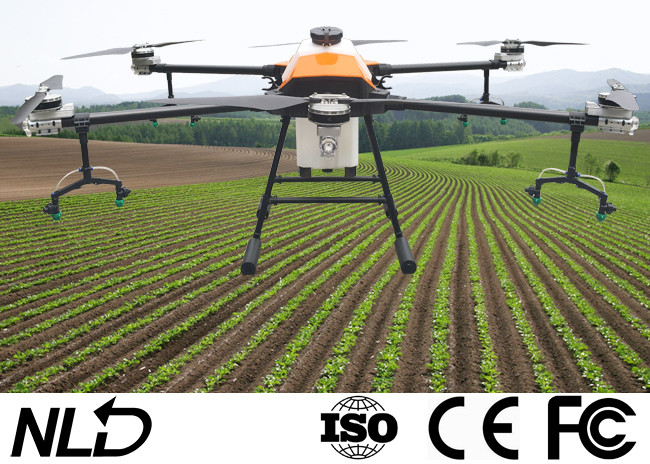

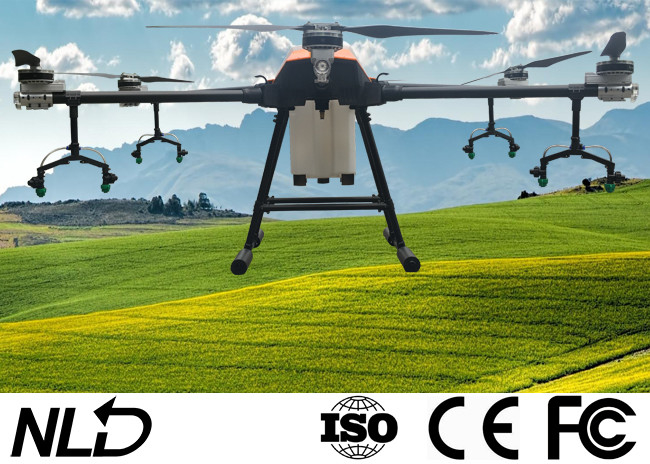

NLB-626 Remote Control Agriculture Spraying Drone with FPV Camera
| Model | NLB420 | NLB620 | NLB626 | NLB630 |
| Rotor | 4 | 6 | 6 | 6 |
|
Hovering accuracy horizontal |
+/- 1.5m | +/- 1.5m | +/- 1.5m | +/- 1.5m |
|
Hovering accuracy vertical |
+/- 0.5m | +/- 0.5m | +/- 0.5m | +/- 0.5m |
| Wind resistance | 4～5 | 4～5 | 4～5 | 4～5 |
| Motor | 4*100KV | 6*110KV | 6*100KV | 6*100KV |
| Electronic Speed Control | 150A | 150A | 150A | 150A |
| Motor applicable temperature | -20～50 | -20～50 | -20～50 | -20～50 |
| Foldable propeller | 3612 | 3411 | 3612 | 3612 |
| Pesticide Tank | 20L | 20L | 26L | 30L |
| Take-off Capacity | 42kg | 54kg | 63kg | 63kg |
| Flying Time (with payload) | 15~20min | 15~20min | 15~20min | 15~20min |
| Flying distance | 5000m | 5000m | 5000m | 5000m |
| Working distance | 2000m | 2000m | 2000m | 2000m |
| Flying Speed | 0~10m/s | 0~10m/s | 0~10m/s | 0~10m/s |
| Spray Width | 3.5~4m | 3.5~4m | 3.5~4m | 3.5~4m |
| Spray Flow | 1.2~2L/min | 1.2~2L/min | 1.2~2L/min | 1.2~2L/min |
| Spray Efficiency | 1500~2400sqm/min | 1500~2400sqm/min | 1500~2400sqm/min | 1500~2400sqm/min |
| Wheelbase | 2029mm | 2018mm | 2018mm | 2018mm |
| Folded Size | 1150*600*700mm | 1150*600*700mm | 1150*600*700mm | 1150*600*700mm |
| Battery / Quantity | 14S/22000mAh | 14S/22000mAh | 14S/25000mAh | 14S/28000mAh |
Remote controller
1080p Digital HD image transmission
NIRC10-3HDS integrated digital image transmission system supports two video source inputs of HDMI and network port, supports more video devices, such as cameras, PTZ, pods and built-in HD FPV applications, supports video floating window function, can be displayed on any ground station application image, supports video window scaling of any size, supports original qgroundcontrol video display function, Open the video SDK for video integrated development.
Ultra long transmission distance
The new remote image transmission system and the latest anti-jamming RF algorithm are adopted. The image remote control distance can reach 10-20km, allowing you to explore a wider space in flight operation without worrying about the flight distance.
Grade protection of industrial equipment
Unmanned aerial vehicles work in harsh outdoor conditions. NIRC10-3HDS can prevent dust and splashes on the body, control switch and peripheral interface to ensure stable and stable operation of the equipment in harsh environment.
Highlight HD display
5.5-inch high brightness HD display can clearly view real-time display information under strong light conditions.
Detachable high performance lithium battery
High performance lithium battery, low internal resistance, long battery life of 6 hours and stable battery curve provide stable power supply for the IUAV operating system, and can quickly replace the battery to ensure continuous operation
