| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | NLB-626 |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Box |
| Delivery Time: | 15~25 days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 100sets/month. |
| Type: | Plant Protection UAV | Material: | Carbon Fiber + Aviation Aluminum |
|---|---|---|---|
| Flight Controller: | 2CPU + 3 IMU | Wind Resistance: | 4～5 |
| Foldable Propeller: | 3612 | Folded Size: | 1150*600*700mm |
| High Light: | Plant Protection insecticide spraying drone,26L Agriculture Spraying Pesticide Drone,Aviation Aluminum pesticide sprayer drone |
||

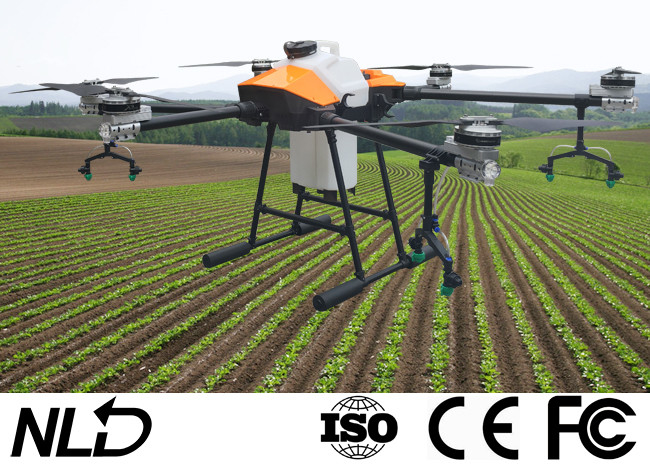

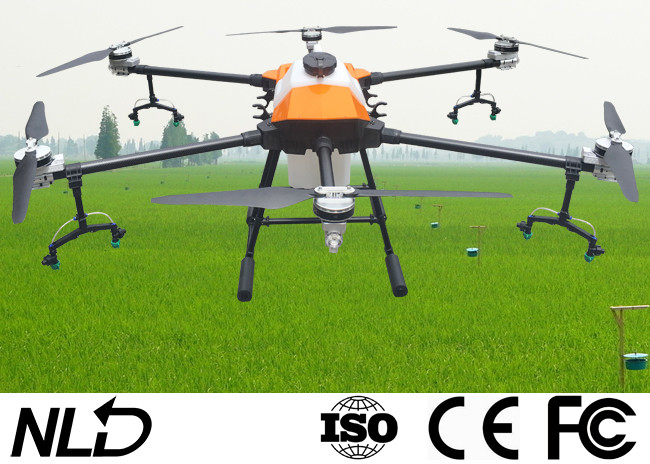

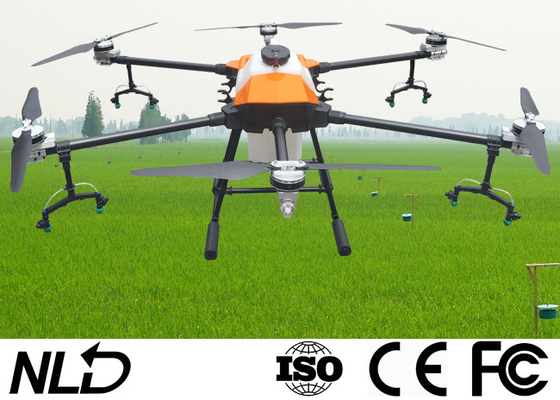

Agriculture Spraying Drone Plant Protection UAV for Agriculture
Product Description
| Model | NLB626 |
Aircraft Frame | 6 rotors |
Pesticide Tank | 26L |
Material | Carbon Fiber + Aviation Aluminum |
Hovering accuracy | +/- 1.5m |
Hovering accuracy | +/- 0.5m |
| Wind resistance | 4～5 |
| Motor | 6*100KV |
| Flying distance | 5000m |
| Motor applicable temperature | -20～50 |
| Foldable propeller | 3612 |
Flight controller | 2CPU + 3 IMU |
| Electronic Speed Control | 150A |
| Take-off Capacity | 63kg |
| Flying Time (with payload) | 15~20min |
| Spray Flow | 1.2~2L/min |
| Working distance | 2000m |
| Flying Speed | 0~10m/s |
| Spray Width | 3.5~4m |
| Folded Size | 1150*600*700mm |
Remote Controller | Remote control + digital transmission 5.5” screen + Android + ground workstation |
| Spray Efficiency | 1500~2400sqm/min |
| Wheelbase | 2018mm |
Spray System | Water pump + flow meter + water pipe + nozzle |
| Battery / Quantity | 14S/25000mAh |
Charger | Dual channel charger |
Work mode | Manual / Workstation |
| FPV Camera | Optional |
| Obstacle avoidance radar | Optional |
| Terrain following radar | Optional |
| RTK centimeter positioning | Optional |
Why choose NEWLANDLE sprayer drone? |
Waterproof |
The whole machine (except for the motor and battery) is dust-proof and waterproof, and the waterproof level reaches IP65. Can be washed directly with water |
Stable |
Flight controller Dual CPU configuration, Triple redundant IMU, Dual redundant barometer; |
Efficient |
11-18 acres/hour. |
Effective |
Each nozzle is under the propeller, the chemical fog can be directly pressed to all levels of the crop by the strong air flow generated by the propellers. |
Intelligent |
One-key take off & land, autonomous fly with way points controlled by Mobile phone APP; |
Fail safe protection; |
Low voltage, no signal, return automatically; |
Intelligent terrain following; |
Spray flow control; |
RTK centimeter positioning. |
Intelligent automatic obstacle avoidance; |
FPV Camera; |
Quality control |
Every drone is tested and has to pass through a rigorous quality control test to confirm it meets the highest standards in performance and durability. |
Good service |
Customers can get free training in our company; Remote on-line video technical support; One year warranty for drone frame and three months for wearing parts. |
Easy to maintain and repair |
We have office and engineer in Indonesia and India, we supply local service in this countries. We always utilize high grade components. The parts are interchangeable and can be replaced by customer self, therefore the maintenance costs are very low. |
