| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | NLB-630 |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Box |
| Delivery Time: | 15~25 days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 100sets/month. |
| Type: | NLB-630 Agriculture Spraying Drone | Flight Controller: | 2CPU + 3 IMU |
|---|---|---|---|
| Folded Size: | 1150*600*700mm | Motor Applicable Temperature: | -20～50 |
| Electronic Speed Control: | 150A | Spray Flow: | 1.2~2L/min |
| High Light: | Pesticide Tank 30L fertilizer sprayer Drone,2L/min Agriculture Spraying Drone,30L agri sprayer drone |
||

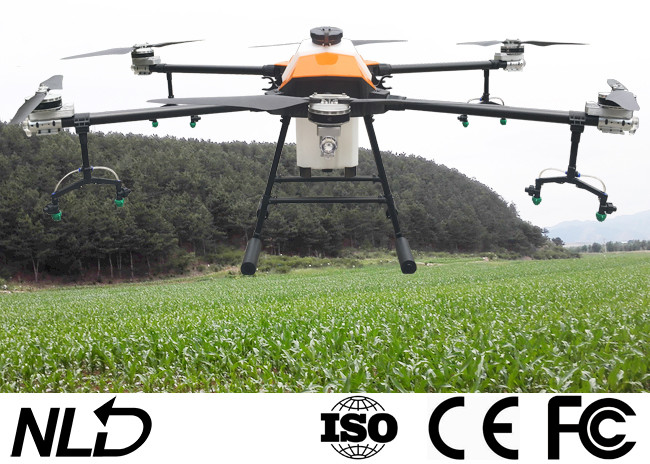

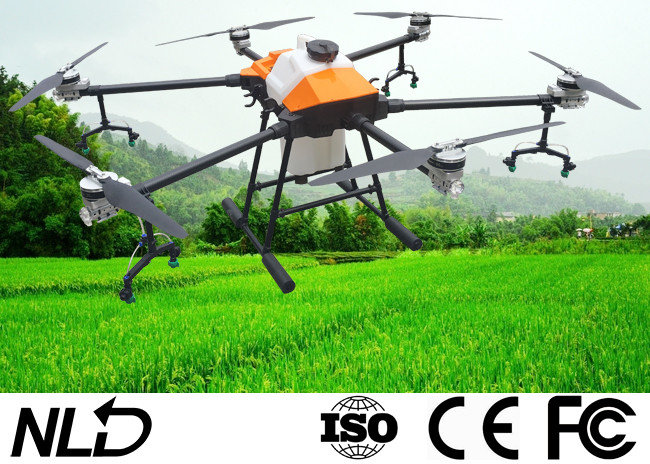

Pesticide Tank 30L Agriculture Spraying Drone with Remote Control
Product Description
| Model | NLB420 | NLB620 | NLB626 | NLB630 |
|
Flight controller |
2CPU + 3 IMU |
2CPU + 3 IMU |
2CPU + 3 IMU |
2CPU + 3 IMU |
| Rotor | 4 | 6 | 6 | 6 |
|
Hovering accuracy horizontal |
+/- 1.5m | +/- 1.5m | +/- 1.5m | +/- 1.5m |
|
Hovering accuracy vertical |
+/- 0.5m | +/- 0.5m | +/- 0.5m | +/- 0.5m |
|
Material |
Carbon Fiber + Aviation Aluminum |
Carbon Fiber + Aviation Aluminum |
Carbon Fiber + Aviation Aluminum |
Carbon Fiber + Aviation Aluminum |
| Wind resistance | 4～5 | 4～5 | 4～5 | 4～5 |
| Motor | 4*100KV | 6*110KV | 6*100KV | 6*100KV |
| Electronic Speed Control | 150A | 150A | 150A | 150A |
| Motor applicable temperature | -20～50 | -20～50 | -20～50 | -20～50 |
| Wheelbase | 2029mm | 2018mm | 2018mm | 2018mm |
| Pesticide Tank | 20L | 20L | 26L | 30L |
| Take-off Capacity | 42kg | 54kg | 63kg | 63kg |
| Flying Time (with payload) | 15~20min | 15~20min | 15~20min | 15~20min |
| Spray Width | 3.5~4m | 3.5~4m | 3.5~4m | 3.5~4m |
| Flying distance | 5000m | 5000m | 5000m | 5000m |
| Foldable propeller | 3612 | 3411 | 3612 | 3612 |
| Working distance | 2000m | 2000m | 2000m | 2000m |
| Flying Speed | 0~10m/s | 0~10m/s | 0~10m/s | 0~10m/s |
| Spray Flow | 1.2~2L/min | 1.2~2L/min | 1.2~2L/min | 1.2~2L/min |
| Spray Efficiency | 1500~2400sqm/min | 1500~2400sqm/min | 1500~2400sqm/min | 1500~2400sqm/min |
| Folded Size | 1150*600*700mm | 1150*600*700mm | 1150*600*700mm | 1150*600*700mm |
|
Spray System |
Water pump + flow meter + water pipe + nozzle |
Water pump + flow meter + water pipe + nozzle |
Water pump + flow meter + water pipe + nozzle |
Water pump + flow meter + water pipe + nozzle |
| Battery / Quantity | 14S/22000mAh | 14S/22000mAh | 14S/25000mAh | 14S/28000mAh |
|
Remote Controller |
Remote control + digital transmission 5.5” screen + Android + ground workstation |
Remote control + digital transmission 5.5” screen + Android + ground workstation |
Remote control + digital transmission 5.5” screen + Android + ground workstation |
Remote control + digital transmission 5.5” screen + Android + ground workstation |
|
Charger |
Dual channel charger |
Dual channel charger |
Dual channel charger |
Dual channel charger |
|
Work mode |
Manual / Workstation |
Manual / Workstation |
Manual / Workstation |
Manual / Workstation |
|
GPS Dot Device |
√ |
√ |
√ |
√ |
|
Aluminum Case |
√ |
√ |
√ |
√ |
