| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | NLB-630 |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Box |
| Delivery Time: | 15~25 days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 100sets/month. |
| Spray Flow: | 1.2~2L/min | Spray System: | Water Pump + Flow Meter + Water Pipe + Nozzle |
|---|---|---|---|
| Take-off Capacity: | 63kg | Spray Efficiency: | 1500~2400sqm/min |
| Flying Distance: | 5000m | Type: | Agriculture Spraying Drone |
| High Light: | 30L Pesticide Tank spraying drone agriculture,14S 28000mAh Lipo Battery spraying drone agriculture,6 rotors farming spray drone |
||

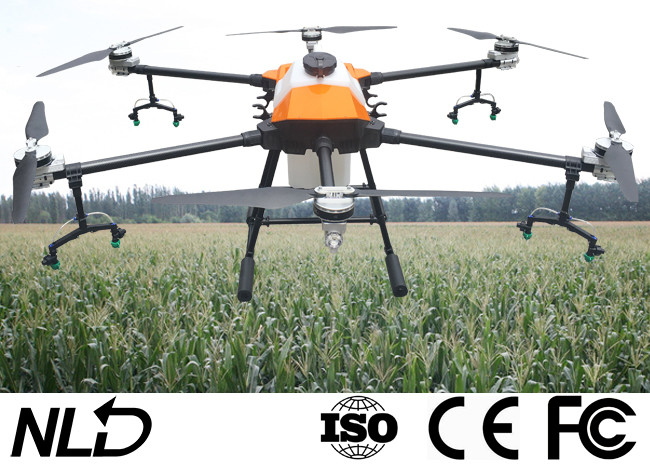

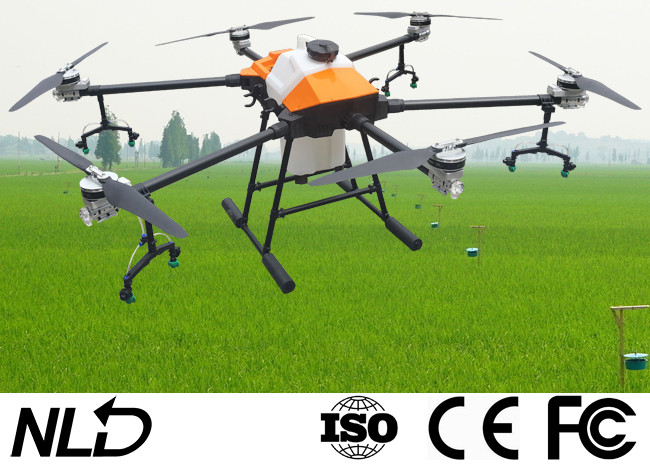

NLB-630 Agriculture Spraying Drone with 14S 28000mAh Lipo Battery
Product Description
| Model | NLB620 | NLB626 | NLB630 | |
|
Flight controller |
2CPU + 3 IMU |
2CPU + 3 IMU |
2CPU + 3 IMU |
|
| Pesticide Tank | L | 20 | 26 | 30 |
|
Aircraft Frame |
6 rotors |
6 rotors |
6 rotors |
|
|
Hovering accuracy horizontal |
m | +/- 1.5 | +/- 1.5 | +/- 1.5 |
|
Hovering accuracy vertical |
m | +/- 0.5 | +/- 0.5 | +/- 0.5 |
|
Material |
Carbon Fiber + Aviation Aluminum |
Carbon Fiber + Aviation Aluminum |
Carbon Fiber + Aviation Aluminum |
|
| Wind resistance | 4～5 | 4～5 | 4～5 | |
| Flying Time (with payload) | min | 15~20 | 15~20 | 15~20 |
| Motor | KV | 6*110 | 6*100 | 6*100 |
| Electronic Speed Control | A | 150 | 150 | 150 |
| Motor applicable temperature | ºC | -20～50 | -20～50 | -20～50 |
| Flying Speed | m/s | 0~10 | 0~10 | 0~10 |
| Take-off Capacity | kg | 54 | 63 | 63 |
| Spray Width | m | 3.5~4 | 3.5~4 | 3.5~4 |
| Flying distance | m | 5000 | 5000 | 5000 |
| Wheelbase | mm | 2018 | 2018 | 2018 |
| Working distance | m | 2000 | 2000 | 2000 |
| Spray Flow | L/min | 1.2~2 | 1.2~2 | 1.2~2 |
| Spray Efficiency | sqm/min | 1500~2400 | 1500~2400 | 1500~2400 |
| Battery / Quantity | 14S/22000mAh | 14S/25000mAh | 14S/28000mAh | |
| Folded Size | mm | 1150*600*700 | 1150*600*700 | 1150*600*700 |
|
Spray System |
Water pump + flow meter + water pipe + nozzle |
Water pump + flow meter + water pipe + nozzle |
Water pump + flow meter + water pipe + nozzle |
|
| Foldable propeller | 3411 | 3612 | 3612 | |
|
Remote Controller |
Remote control + digital transmission 5.5” screen + Android + ground workstation |
Remote control + digital transmission 5.5” screen + Android + ground workstation |
Remote control + digital transmission 5.5” screen + Android + ground workstation |
|
|
Charger |
Dual channel charger |
Dual channel charger |
Dual channel charger |
|
|
Work mode |
Manual / Workstation |
Manual / Workstation |
Manual / Workstation |
|
|
Lead time |
days |
15 |
15 |
15 |
|
GPS Dot Device |
√ |
√ |
√ |
|
|
Aluminum Case |
√ |
√ |
√ |
|
|
Obstacle avoidance radar |
Optional |
Optional |
Optional |
|
|
RTK centimeter positioning |
Optional |
Optional |
Optional |
|
|
Terrain following radar |
Optional |
Optional |
Optional |
|
|
FPV Camera |
Optional |
Optional |
Optional |
|
