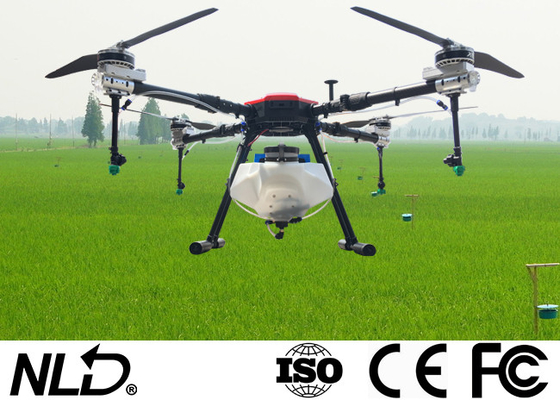

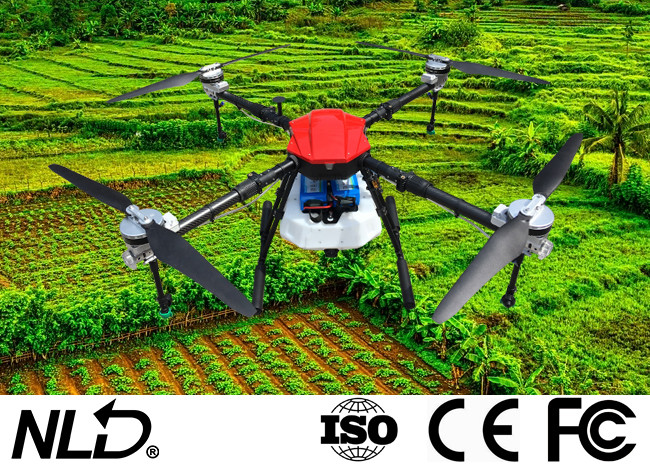

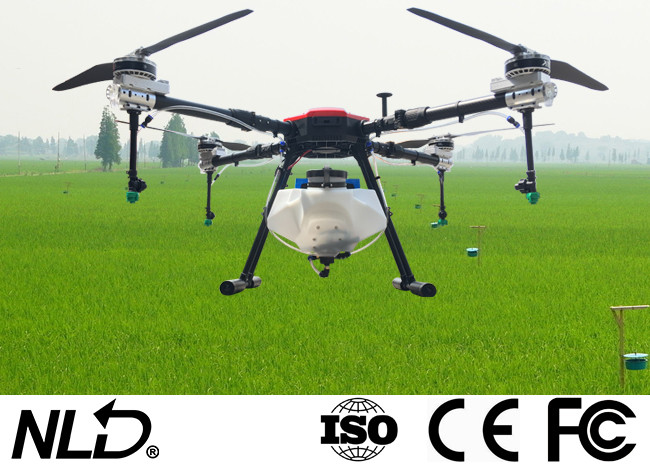

Remote Control Agriculture Spraying Drone 5m With Ground Workstation

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NLA-410
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Aluminum Box
Delivery Time: 15~25 days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month.
Type: Agriculture Spraying Drone Aircraft Frame: 4 Rotors
Pesticide Tank: 10L Charger: Dual Channel Charger
Flight Controller: 2CPU + 3 IMU Material: Carbon Fiber + Aviation Aluminum
High Light:

Agriculture Drone With Ground Workstation

,

5m Agriculture Spraying Drone

,

Remote Control 10L Agriculture Spraying Drone

Agriculture Spraying Drone Remote Control With Ground Workstation



Description

Model

NLA410

Aircraft Frame

4 rotors

Pesticide Tank

10L

Flight controller

2CPU + 3 IMU

Material

Carbon Fiber + Aviation Aluminum

Flight time

15~20minutes

Spray width

3~5m

Spray efficiency

6~8 Ha/hour

Lead time

15days

Work mode

Manual / Workstation

Spray System

Water pump + flow meter + water pipe + nozzle

Remote Controller

Remote control + digital transmission 5.5” screen + Android + ground workstation

Charger

Dual channel charger

Flight Controller

GPS Dot Device

Aluminum Case



Remote Control Agriculture Spraying Drone 5m With Ground Workstation 0



Model NLA416
Rotor 4

Hovering accuracy

horizontal

+/- 1.5m

Hovering accuracy

vertical

+/- 0.5m
Wind resistance 4~5
Motor 4*110KV
Electronic Speed Control 120A
Motor applicable temperature -20~50
Foldable propeller 3411
Pesticide Tank 16L
Take-off Capacity 38kg
Flying Time (with payload) 15~20min
Flying distance 5000m
Working distance 2000m
Flying Speed 0~10m/s
Spray Width 3~3.5m
Spray Flow 1.2~2L/min
Spray Efficiency 1000~2100sqm/min
Expand Size 1848*1848*628mm
Wheelbase 1416mm
Folded Size 648*671*628mm
Battery / Quantity 6S/22000mAh / 2pcs
FPV Camera Optional
Obstacle avoidance radar Optional
Terrain following radar Optional
RTK centimeter positioning Optional



Remote controller

1080P digital HD image transmission

NIRC10-3HDS integrated digital image transmission system, supports HDMI and network port two video source input, supports more video devices such as cameras, PTZ, pods, built-in HD FPV APP, supports video floating window function, can be displayed on any ground station APP Image, support video window scaling of any size, support the original QGroundControl video display function, open the video SDK for video integrated development.

Highlight HD display

The 5.5-inch high-brightness high-definition display can clearly view real-time display information under strong light conditions.

Removable high-performance lithium battery

The high-performance lithium battery, low internal resistance, 6 hours long battery life, and stable battery curve provide stable power for the iUAV OS system, and can quickly replace the battery to ensure continuous operation

Industrial equipment level protection

Unmanned aerial vehicles work in harsh outdoor conditions. The NIRC10-3HDS is protected from dust and splashes on the fuselage, control switches, and peripheral interfaces to ensure stable and smooth operation of the equipment in harsh environments.

Ultra long transmission distance

Using the new long-distance image transmission system, with the latest anti-interference radio frequency algorithm, the image remote control distance is as far as 10~20km, allowing you to explore a wider space without worrying about the flying distance during flight operations.
