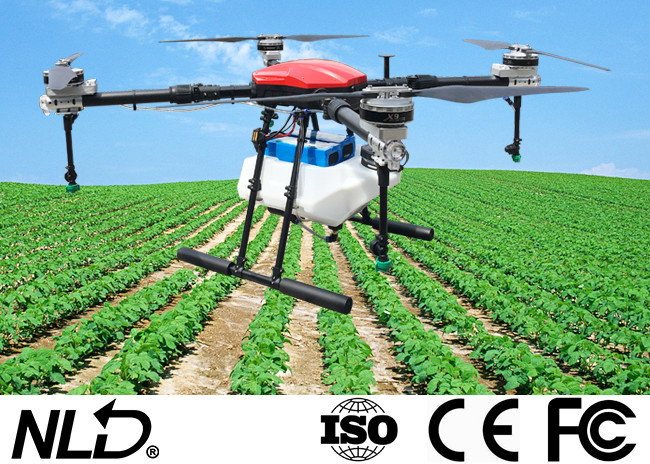

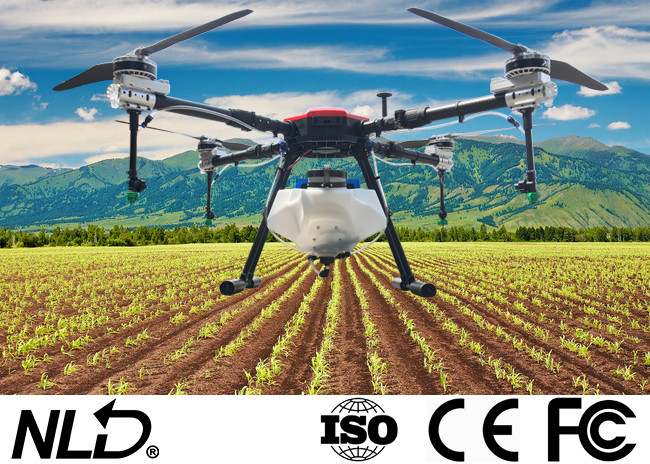

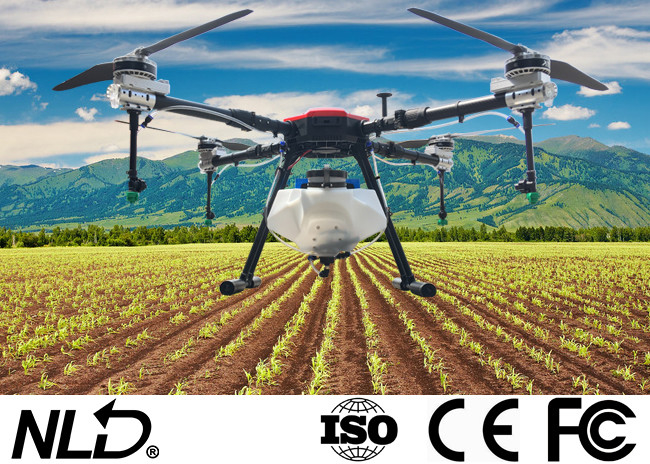

NLA-410 Agriculture Spraying Drone 4*100KV Motor 28kg Take Off Capacity

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NLA-410
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Aluminum Box
Delivery Time: 15~25 days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month.
Type: Agriculture Spraying Drone Pesticide Tank: 10L
Aircraft Frame: 4 Rotors Flight Controller: 2CPU + 3 IMU
Motor Applicable Temperature: -20~50 Foldable Propeller: 3090
High Light:

Agriculture Spraying Drone 4*100KV

,

2CPU Agriculture Spraying Drone

,

Aviation Aluminum Agriculture Spraying Drone

NLA-410 Agriculture Spraying Drone 4*100KV Motor 28kg Take-off Capacity



Model NLA410
Rotor 4

Flight controller

2CPU + 3 IMU

Hovering accuracy

horizontal

+/- 1.5m

Hovering accuracy

vertical

+/- 0.5m

Material

Carbon Fiber + Aviation Aluminum

Wind resistance 4~5
Motor 4*100KV
Electronic Speed Control 80A
Motor applicable temperature -20~50
Foldable propeller 3090
Pesticide Tank 10L
Take-off Capacity 28kg
Flying Time (with payload) 15~20min
Flying distance 5000m
Working distance 2000m
Flying Speed 0~10m/s
Spray Width 3~3.5m
Spray Flow 1.2~2L/min
Spray Efficiency 1000~2100sqm/min
Expand Size 1780*1780*567mm
Wheelbase 1362mm
Folded Size 700*658*567mm
Battery / Quantity 6S/16000mAh / 2pcs

Spray System

Water pump + flow meter + water pipe + nozzle

Remote Controller

Remote control + digital transmission 5.5” screen + Android + ground workstation

Charger

Dual channel charger

FPV Camera Optional
Obstacle avoidance radar Optional
Terrain following radar Optional
RTK centimeter positioning Optional



NLA-410 Agriculture Spraying Drone 4*100KV Motor 28kg Take Off Capacity 0

Why choose NEWLANDLE sprayer drone?

  • The whole machine (except for the motor and battery) is dust-proof and waterproof, and the waterproof level reaches IP65. Can be washed directly with water
  • Stable: Flight controller Dual CPU configuration, Triple redundant IMU, Dual redundant barometer;
  • Efficient: 11-18 acres/hour.
  • Effective: Each nozzle is under the propeller, the chemical fog can be directly pressed to all levels of the crop by the strong air flow generated by the propellers.
  • Intelligent
  1. One-key take off & land, autonomous fly with way points controlled by Mobile phone APP;
  2. Low voltage, no signal, return automatically;
  3. Fail safe protection;
  4. Spray flow control;
  5. Intelligent automatic obstacle avoidance;
  6. Intelligent terrain following;
  7. FPV Camera;
  8. RTK centimeter positioning.
  • Quality control: Every drone is tested and has to pass through a rigorous quality control test to confirm it meets the highest standards in performance and durability.
  • Easy to maintain and repair: We have office and engineer in Indonesia and India, we supply local service in this countries. We always utilize high grade components. The parts are interchangeable and can be replaced by customer self, therefore the maintenance costs are very low.
  • Good service: Customers can get free training in our company; Remote on-line video technical support; One year warranty for drone frame and three months for wearing parts.
