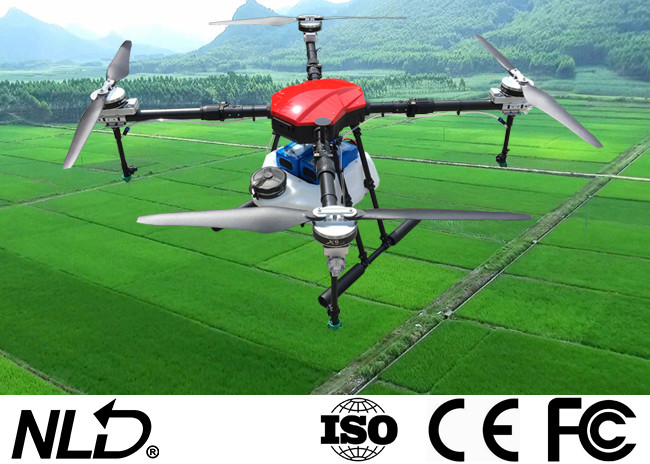

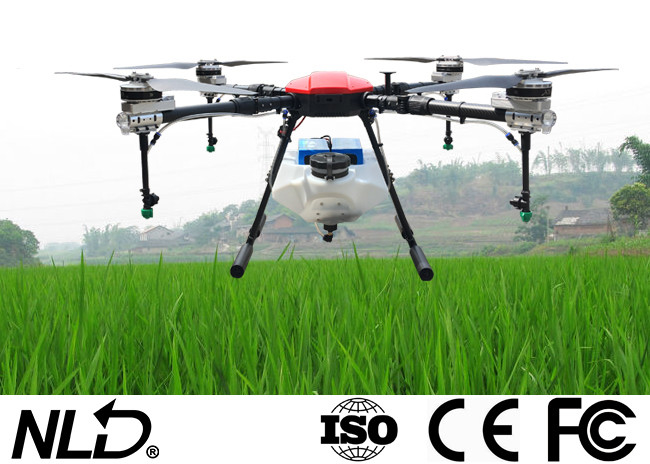

10L Agriculture Spraying Pesticides Drone For Plant Protection 8 Ha/Hour

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NLA-410
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Aluminum Box
Delivery Time: 15~25 days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month.
Type: Agriculture Spraying Pesticides Drone Material: Carbon Fiber + Aviation Aluminum
Spray Efficiency: 6~8 Ha/hour Flight Time: 15~20minutes
GPS Dot Device: YES Charger: Dual Channel Charger
High Light:

Agriculture Spraying Pesticides Drone For Plant


10L Agriculture Spraying Pesticides Drone


Agriculture Spraying Pesticides Drone 8 Ha/hour

Agriculture Spraying Drone for Spraying Pesticides 15~20min Flying Time


Product Description
Model: NLA410
Rotor: 4
Material: Carbon Fiber + Aviation Aluminum
Pesticide Tank: 10L
Take-off Capacity: 28kg
Hovering accuracy horizontal: +/- 1.5m
Hovering accuracy vertical: +/- 0.5m
Electronic Speed Control: 80A
Wind resistance: 4~5
Flight controller: 2CPU + 3 IMU
Wheelbase: 1362mm
Motor applicable temperature: -20~50
Motor: 4*100KV
Flying Speed: 0~10m/s
Flying Time (with payload): 15~20min
Foldable propeller: 3090
Spray Flow: 1.2~2L/min
Flying distance: 5000m
Expand Size: 1780*1780*567mm
Working distance: 2000m
Folded Size: 700*658*567mm
Spray Width: 3~3.5m
Spray Efficiency: 1000~2100sqm/min


10L Agriculture Spraying Pesticides Drone For Plant Protection 8 Ha/Hour 0


Ground Defense Radar

  • Ground defense radar uses millimeter-wave radar technology.
  • Ground defense radar has stable detection performance and good environment practicality, strong anti-interference ability, not affected by light, far detection distance, with all-weather and all-day characteristics.
  • Through the continuous scanning of the radar, the drone can sense the terrain change of the flight direction and adjust the flight height in time according to the terrian and the crop height to realize the ground defense flight and ensuring uniform spraying in flight.


  1. Strong penetration, not affected by light.
  2. Strong anti-interference ability and good environmental applicability.
  3. Power saving and efficient, total power consumption is only 1.5W 4. 5. All day work.
  4. Stable performance with detection range of 15m.

Obstacle avoidance radar

  • Obstacle avoidance radar adopts 24GHZ radar technology, which can work all-weather under the environment of strong light, high temperature, fog, dust, wind and night.
  • Obstacle avoidance radar is mainly used to measure the relative distance between the UAV and the obstacle in front of the flight, so as to effectively avoid the obstacle.
  • Obstacle avoidance radar sensitivity is high, the detection distance is long, the signal transmission is fast and stable, and it can detect a diagonal pull of more than 1cm Electric wires, small trees with 10cm trunks, 1.7m high people and 15cm electric poles, have a good obstacle avoidance function for high-speed running drones, and are very suitable for plant protection drones to operate in complex outdoor environments.


  1. High sensitivity
  2. Strong environmental adaptability
  3. Far detection distance
  4. All day work
  5. Signal transmission is fast and stable

J-RTK centimeter-level precision positioning system

  • J-RTK is a new generation of high-precision navigation and positioning system.
  • J-RTK can also ensure reliable operation in the environment of strong magnetic interference such as high-voltage lines and metal buildings.
  • J-RTK uses real-time dynamic differential technology to improve the three-dimensional positioning accuracy from meters to centimeters.
  • J-RTK has the characteristics of high positioning accuracy and strong anti-magnetic interference.
  • J-RTK makes up for the deficiencies of traditional GPS and barometer solutions, and provides accurate and reliable positioning solutions for high-precision applications.


  1. Centimeter-level positioning accuracy, powerful multi-path effect and interference suppression technology.
  2. High sensitivity, stable and reliable.
  3. Dual antennas with high precision orientation and strong anti-magnetic interference.
