| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | NLA-610 |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Aluminum Box |
| Delivery Time: | 15~25 days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 100sets/month. |
| Type: | 6 Rotors Plant Protection Drone | Pesticide Tank: | 10L |
|---|---|---|---|
| Remote Controller: | Remote Control + Digital Transmission 5.5” Screen | Flight Time: | 15~20minutes |
| Battery: | 2*16000mAh | Work Mode: | Manual / Workstation |
| High Light: | NLA610 6 Rotors fertilizer spraying drone,2*16000mAh fertilizer spraying drone,Plant Protection Agri Fertilizer Spraying Drone |
||

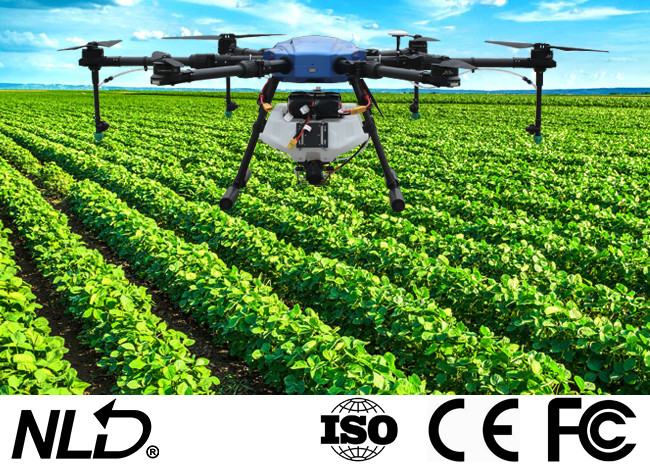

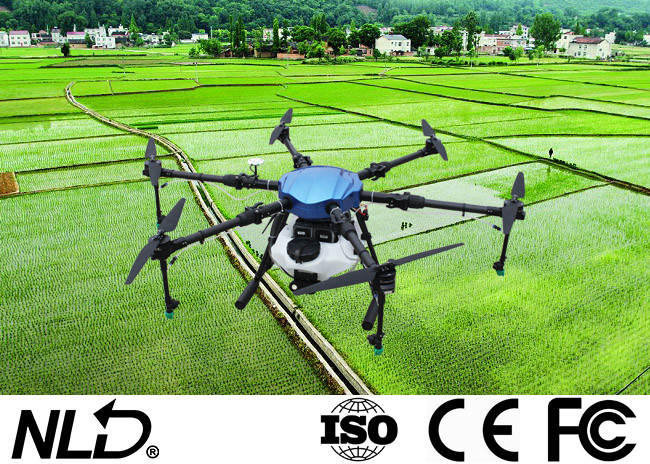

NLA610 6 Rotors Plant Protection Drone Agriculture Spraying Drone
Fully waterproof body
The fuselage adopts an integrated waterproof design that supports cleaning (excluding motor and battery components). The surface of the housing adopts a star bright blue coating, which has a beautiful appearance and eye-catching color.
New folding part
Unique C-arm clamp design. It can be used to fix the arm after folding, avoiding problems such as arm swinging and sagging during handling.
| Model | NLA610 |
| Rotor | 6 |
|
Hovering accuracy horizontal |
+/- 1.5m |
|
Hovering accuracy vertical |
+/- 0.5m |
| Wind resistance | 4～5 |
| Motor | 6*180KV |
| Electronic Speed Control | 80A |
| Motor applicable temperature | -20～50 |
| Foldable propeller | 2388 |
| Pesticide Tank | 10L |
| Take-off Capacity | 30kg |
| Flying Time (with payload) | 15~20min |
| Flying distance | 5000m |
| Working distance | 2000m |
| Flying Speed | 0~10m/s |
| Spray Width | 3.5~4m |
| Spray Flow | 1.2~2L/min |
| Spray Efficiency | 1500~2400sqm/min |
| Expand Size | 1992*1992*562mm |
| Wheelbase | 1407mm |
| Folded Size | 945*848*562mm |
| Battery / Quantity | 6S/16000mAh / 2pcs |
| FPV Camera | Optional |
| Obstacle avoidance radar | Optional |
| Terrain following radar | Optional |
| RTK centimeter positioning | Optional |
Other Models
| Model | NLA616 | NLA622 | NLA630 |
| Rotor | 6 | 6 | 6 |
|
Hovering accuracy horizontal |
+/- 1.5m | +/- 1.5m | +/- 1.5m |
|
Hovering accuracy vertical |
+/- 0.5m | +/- 0.5m | +/- 0.5m |
| Wind resistance | 4～5 | 4～5 | 4～5 |
| Motor | 6*100KV | ||
| Electronic Speed Control | 80A | ||
| Motor applicable temperature | -20～50 | -20～50 | -20～50 |
| Foldable propeller | 3090 | ||
| Pesticide Tank | 16L | 22L | 30L |
| Take-off Capacity | 42kg | ||
| Flying Time (with payload) | 15~20min | 15~20min | 15~20min |
| Flying distance | 5000m | 5000m | 5000m |
| Working distance | 2000m | 2000m | 2000m |
| Flying Speed | 0~10m/s | 0~10m/s | 0~10m/s |
| Spray Width | 3.5~4m | 3.5~4m | 3.5~4.5m |
| Spray Flow | 1.2~2L/min | 1.5~2.5L/min | 1.5~2.5L/min |
| Spray Efficiency | 1500~2400sqm/min | ||
| Expand Size | 2428*2428*600mm | ||
| Wheelbase | 1648mm | ||
| Folded Size | 1102*979*600mm | ||
| Battery / Quantity | 6S 22000mAh / 2pcs | 6S 22000mAh / 2pcs | 6S 30000mAh / 2pcs |
| FPV Camera | Optional | Optional | Optional |
| Obstacle avoidance radar | Optional | Optional | Optional |
| Terrain following radar | Optional | Optional | Optional |
| RTK centimeter positioning | Optional | Optional | Optional |
