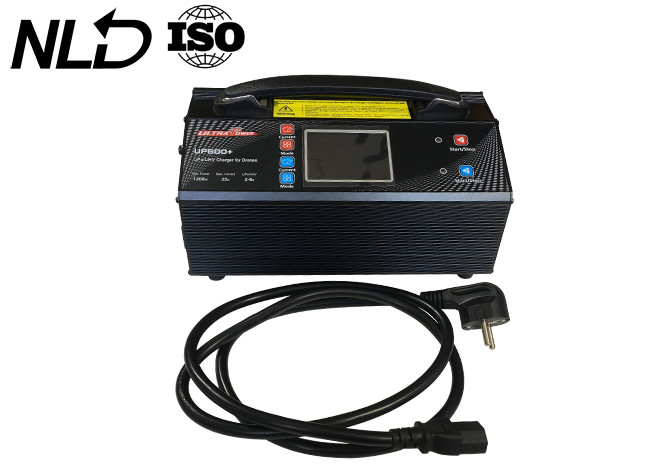

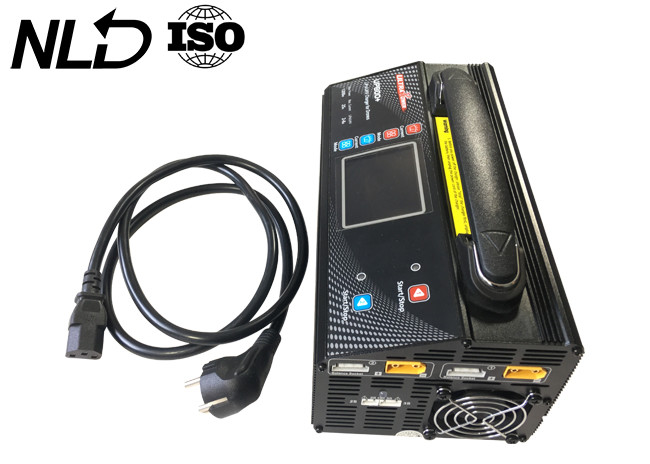

1200W LiPo LiHV 2S 3S 6S Lithium Battery Charger Dual Channels 110V 220V 25A

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001
Model Number: UP600+
Minimum Order Quantity: 1set
Price: Negotible
Packaging Details: Carton
Delivery Time: 15days
Supply Ability: 100set/month
Input Voltage: AC110V Or 220V Battery Type: LiPo/LiHV
Output Power: 600W*2 Battery Cell Count: 2~6S
Working Mode: Charge / Storge Charge Current: 5A~25A
High Light:

6S Lithium Battery Charger


3S lithium battery charger


1200W 6s battery charger

Lithium Battery Charger 1200W Dual Channels LiPo LiHV 2S 3S 6S Max Current 25A Input Voltage 110V 220V


Quick details:

1. Dual channels fast charger

2. Input voltage: 110 / 220V AC

3. Outpot power: 1200W

4. Battery type: 2S, 3S, 6S

5. Discharge power: 80W

6. Max charge current: 25A



It is specifically designed for dual channels LiPo/LiHV charger of big drones, it can charge & storage 2pcs of 2-6S LiPo/LiHV battery packs simultaneously, with "one-button charge" function, easy to operate. In addition, UP600+ has over-voltage, over-current, reverse polarity, and over-temperature protection to ensure maximum safety.

1200W LiPo LiHV 2S 3S 6S Lithium Battery Charger Dual Channels 110V 220V 25A 0



Input Voltage: AC 110V or 220V

Input Voltage: AC 110V or 220V

Charge Output Power: 1200W(600W x2)

Battery Cell Count: 2-6S(also can charge 2s/3s radio battery)

Discharge Power: 80W(40WX2)

Working Mode: Charge / Storage

Charge Current : 5A/10A/15A/20A/25A

Dimension: 268X 140X127mm

Balance Current: 1.5A/cell

Net Weight: 3.1KG



1.Support charging 2 pcs of 2-6S LiPo/LiHV batteries.

2.With independent radio battery connection port, support charge 2S/3S redio battery. (Only one radio battery can be charged one time).

3.Charging current is adjustable: 5A/10A/15A/20A/25A.

4.Two working modes: Balance charge mode, Storage mode.

5.Memorizing last charging current.

6. Multiple protection function: over-voltage, over-current, reverse polarity. and over-temperature protection.


Charging Process:

1200W LiPo LiHV 2S 3S 6S Lithium Battery Charger Dual Channels 110V 220V 25A 1


Important information tips:

When the charger appear below abnormal situations, the two-color indicators will flash in red, and LCD display screen will appear fault message, please refer to below specific message notification and reasons.

Fault message Cause analysis
Connection Break No battery connected: check if the battery main port correctly connected to the device.
Reverse Polarity Battery polarity reversed: check the battery main port, polarity connected.
Cell Voltage High Balance socket voltage abnormality: check if the battery balance port correctly connected to the device; check the battery voltage is normal or not.
INT. TEMP High Temperature protection: check the cooling fan runing is normal or not and check if the external environment temperature is too high.
Over Load! Current overload protection: the device wil stop charging once the currert over 30A.


Important warning and safety instruction:

These warnings and safety instructions are particularly important. Please follow the instructions for maximum safety. Otherwise the charger and the battery can be damaged or at worst it can catch fire.
1. Never leave the charger unattended when it is connected to its power supply. If any malfunction is found, TERMINATE THE PROCESS AT ONCE and refer to the operation manual.
2. Keep the charger away from dust, moist, rain, heat, direct sunshine and vibration.
3. The input voltage is AC 110V or AC 220V, before connect to the power source, please keep its input voltage is the same as the charger's.
4. Default battery type is standard LiPo battery type with charge mode. Before connecting the battery, please keep the battery type comply with the charger setting.
