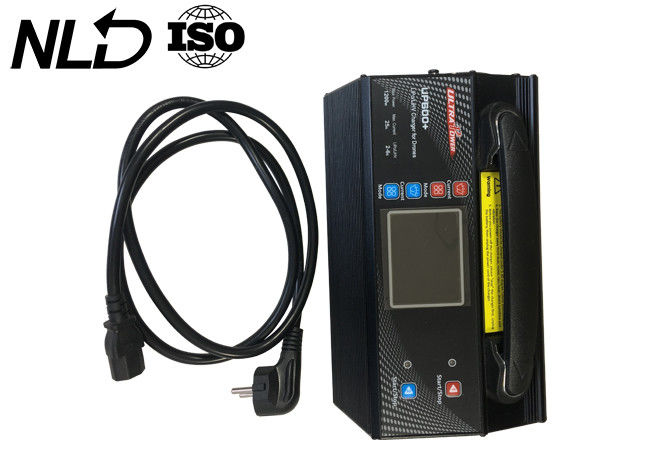

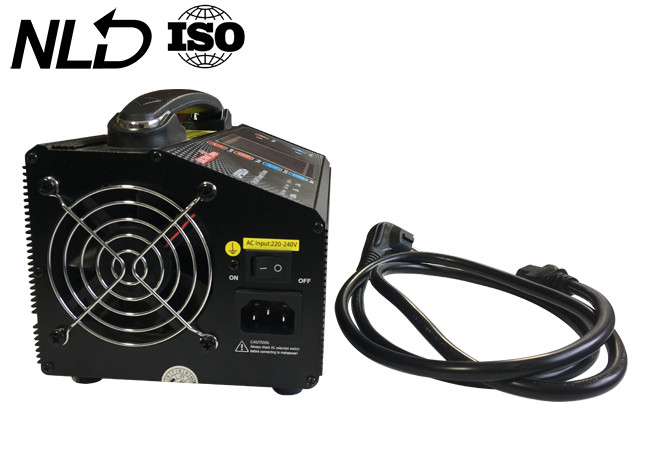

1200W lithium 110V 220V 5A 10A 15A Dual Battery Charger

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001
Model Number: UP600+1
Minimum Order Quantity: 1set
Price: Negotible
Packaging Details: Carton
Delivery Time: 15days
Supply Ability: 100sets/month
Charge Current: 5A/10A/15A/20A/25A Input Voltage: AC 110V 220V
Charge Output: 1200W Battery Type: LiPo LiHV 2S 3S 6S
Discharge: 40w*2 Work Mode: Charge Storage
High Light:

15A Dual Battery Charger


10A dual battery charger


1200W lithium battery charger

1200w Two Lithium Battery Charging Together Fast Charger AC 110/220V Input Voltage Current 25A


Production Description:

It can charge or storage two 2S 3S 6S LiPo or LiHV batteries together. 1200W High output power and max 25A current.

Easy to use one button charge function, over voltage, over current, reverse polarity and over tempature protection



Working Mode: Charge or Storage

Charge Current : 5A/10A/15A/20A/25A

Input Voltage: AC 110V 220V

Charge Output Power: 1200W(600W x2)

Discharge Power: 40WX2

Battery Cell Count: 2-6S

Battery Type: LiPo or LiHV

Balance Current: 1.5A per cell

Dimension: 268X 140X127mm

Net Weight: 3.1kgs


Operation Procedure
1.Power on: Connect to the power source and turn on the power switch. The two-color indicators will illuminate for 2 seconds, and the LCD display screen will show the start-up page for 2 seconds, and then it will enter into the standby page.

1200W lithium 110V 220V 5A 10A 15A Dual Battery Charger 0

2.Battery connection: Please connect your batteries according to below picture.

1200W lithium 110V 220V 5A 10A 15A Dual Battery Charger 1

3.Setting the charging parameter.
1) Press Current button to choose the appropriate current, 5A, 10A, 15A, 20A, 25A (Normally, we suggest to charge with 1C charge current).

2) Press Mode button to choose the mode you need, the default mode is charge mode.
3) Long press Start/Stop for 2 seconds until heard "beep" sound, the two-color indicator will flash, now the charger is under charging process.
Stop: If you want to stop in working process, please press Start/Stop button.


Switch with LiPo battery and LiHV battery

Please take seriously with this function, wrong battery type connected will damage battery even catch fire explosion.

1) LiPo battery switch to LiHV battery
Press the Current and Mode simultaneously for 3 secods, the device wil go into LiHV battery mode.
2) LiHV battery switch to LiPo battery
Only need to press the Current and Mode simultlneously, the device will go into LiPo battry mode.

(LiPo cut off voltage: 4.2v, LiHV cut off voltage: 4.35V).


Storage mode

If a Lithium battery is not used for long time, it's highly recommended to charge or discharge the battery to 3.80V with Storage mode so as to extend the battery's life. when the battery voltage is higher than 3.80V per cell, the charger will discharge the battery; on the opposite, when the battery voltage lower than 3.80V per cell, the charger will charge the battery under Storage mode.
Press the "Mode" button, choose the Storage mode.
Long press the "Start/Stop" button, enter into the Storage mode.


Warranty and Service

We guarantee this product to be free of manufacturing and assembly defects for a period of one year from the time of purchase. The warranty only applies to material or operational defects, which are present at the time of purchase. During that period, we will repair or replace free of service charge for products deemed defective due to those causes.
You will be required to produce proof of purchase (invoice or receipt), This warranty is not vaid for any damage or subsequent damage arising as a result of misuse, modification or as a result of failure to observe the procedures outlined in this manual.
