| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 FCC |
| Model Number: | NLVD32 |
| Minimum Order Quantity: | 1set |
| Price: | Negotible |
| Packaging Details: | Carton |
| Delivery Time: | 20days |
| Supply Ability: | 100sets/month |
| Feature: | Remote Control, Data Transmission, Image Transmission 3 In 1 | Channels: | 16 Channels |
|---|---|---|---|
| Language: | Chinese / English | Joystick Resolution: | 4096 Grades |
| Battery: | 8000mAh Lipo 1S | Battery Life: | 8 Hours |
| High Light: | 4km UAV Remote Control,8000mAh uav remote control,ISO9001 16 Channels fpv drone remote |
||

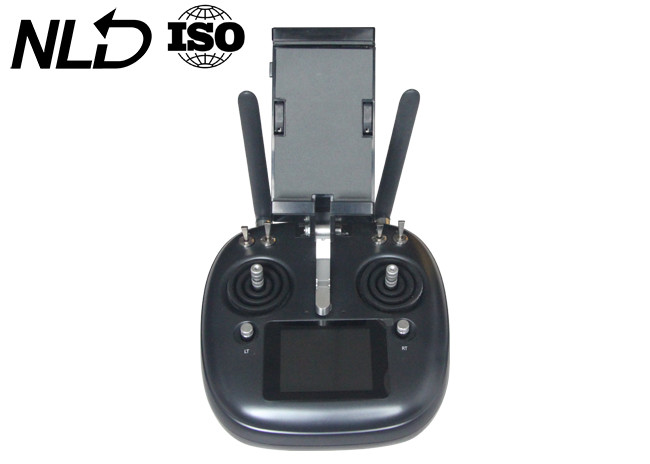

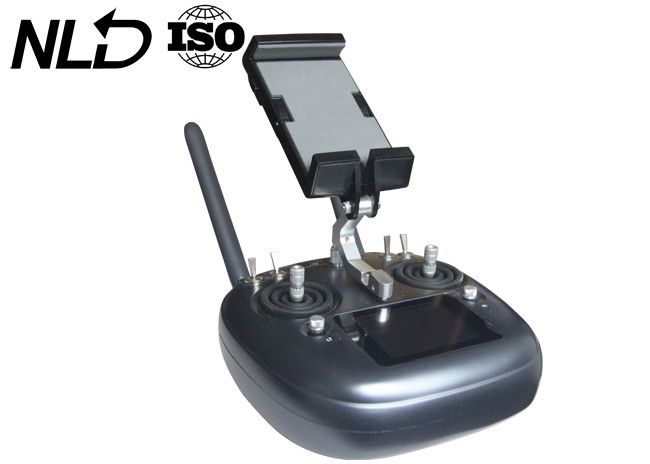

Remote Controller Max 4km Rang 16 Idependent Digital Output Channels Date Image Transmission Three in One
Quick details:
Control Range: Max 4km;
Screen type: 2.8" high brightness colorful LCD screen
Wireless type & function: 2.4G ISM / Bluetooth
Charger: 5V 2A
Specification:
VD32 is a professional, intelligent and universal radio transmitting system integrated with 2.4G Hz datalink and video-link, applied with advaned SHTT digital frequency hopping technology. It supports maximum 4 km control range and 16 independent digital output channels, perfectly comatible with major commercial flight controllers on market. It also supports parameter adjustment through the built-in touchscreen, easy and convenient.
| Channels | 16 Channels |
| Applicable Model |
Planes / Helicopters / Gliders / Quadcopters / Multi-rotors / Vehicles / Boats / Robots |
|
Compatible FC |
Open Source Flight Controllers: PIX/APM, etc. |
| Model Data Memory | 64 sets(extensible) |
| Language Display | Chinese / English |
| Joystick Resolution | 4096 grades |
| Frequency Band | 2.400 MHz - 2.483 MHz |
| Transmitting Power | 100 mW (20 dBm) E.I.R.P |
|
RF Spreading Technology |
FHSS |
| Receiving Sensibility | -101 dBm |
| Control Range |
4 km / 2.5 miles (unobstructed, free of interference) 2 km / 1.2 miles (ground to ground) |
| PC Software | SIYI Assistant v1.2.0 |
| Battery Type & Power |
Chargeable Built-in 3.7V 8000mAh Li-Po 1S battery 29.6 Wh |
| Battery Life | 8 Hours |
|
Working Current |
Transmitter: 200 mA, Receiver: 80 mA, Idle: 60 mA |

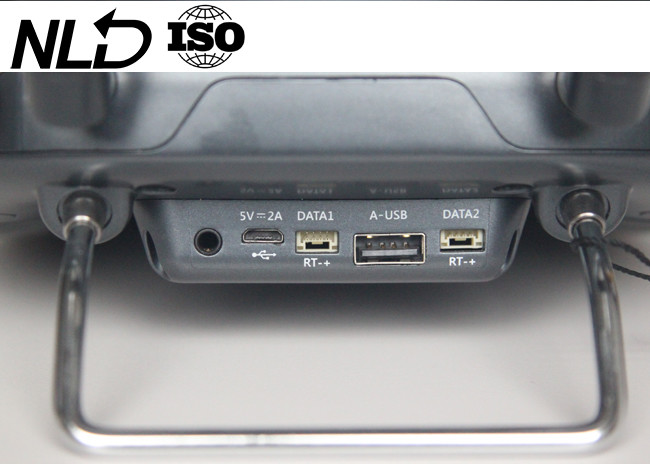

| Charging Port | Micro-USB Port |
| Screen Type |
2.8-Inch High Brightness Colorful LCD Screen Display Resolution: 240x320 |
| Charging Port | Micro-USB Port |
|
Wireless Type & Function |
2.4G ISM (radiolink/datalink/videolink) Bluetooth (datalink communication) |
| Packing Size | 245X190X170 mm |
| Packing Weight | 1350 g |
| Mobile APP & Function |
SIYI TX SIYI FPV |
Ground Station (Transmitter)
| Battery Type & Power |
Chargeable Built-in 3.7V 8000mAh Li-Po 1S battery 29.6 Wh |
| Battery Life | 8 Hours |
| Battery Working Temperature | 0 ~ 55 (℃) |
| Charging Port Type | Micro-USB; 5V/2A |
|
Charging Time |
5 Hours |
| Dimensions | 184.5X180X114 mm |
| Net Weight | 780 g |
Sky Station (Receiver)
| Signal Output | 14 channels of SBUS, 5 channels of PWM |
| Datalink Ports (to FC) | UART, CAN (optional) |
| Antenna Gain | 5 dBi |
| Working Voltage | 15 – 50V |
| Telemetry Voltage | 15 – 50V |
| Operating Temperature | -10 to 55 (℃) |
| Dimensions | 59 x 59 x 16 mm (without antenna) |
| Net Weight | 50g (without antenna) |
