Unmanned 2-4mm Rope 5KG 6 Rotors Aerial Inspection Drone

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NPA-601
Minimum Order Quantity: 1set
Price: Negotible
Packaging Details: Aluminum Box
Delivery Time: 20days
Supply Ability: 100sets/month
Material: Carbon Aluminum Rotor: 6 Rotors
Axle Distance: 960mm Max Take-off Weight: 10.4kgs
Max Payload: 5kgs Usage: Transmission Line Construction Mission
High Light:

ISO9001 6 Rotors Aerial Inspection Drone


Unmanned aerial inspection drone


ISO9001 5kg aerial survey drone

Unmanned Aerial Vehicle Drone Transmission Line Construction Mission Using Stringing Traction Rope Dyneema Rope 2~4mm


Quick details:

Ready to Fly: 6 Rotors Unmanned Aerial Vehichle 1set;

Battery: 16000mAh 6S 2pcs;

Remote controller: 2km;

Flight controller: DJI Naza V2

Unmanned 2-4mm Rope 5KG 6 Rotors Aerial Inspection Drone 0


Axle distance/Height 960mm/400mm Camera with
Fail-Safe with GPS with
Maximum tension 5kg No-load endurance 25-30min
Maximum take-off weight 10.4kg Load endurance 12-15min
Flying speed 0.15m/min Flight mode Manual control; ATT; GPS
Empty weight 3.4kg Battery 16000mAh 6S
Maximum flight distance 2-4km Flight height 0-1000m (adjustable)
Working Temperature -5℃---50℃ Diameter of traction rope 2-4mm
GPS positioning, full-auto return, semi-auto return, runaway protection, headless mode, heading lock, low-voltage protection alarm, battery power backhaul, national exclusive high beam function, OSD flight data real-time backhaul, etc.


1.The above configuration remote control, battery, charger are brand accessories, better quality and more powerful. Equipped with brand battery, better quality. If the amount of engineering is large and the drone needs to work for a long time, you can contact the procurement of batteries at any time in the later stage.
2. The drone function of our company covers all the functions in the market, features include but are not limited to: GPS positioning, semi-automatic return, fully automatic return, headless mode, locked heading, low voltage protection alarm, out of control return, on-board electrical display, high beam, camera OSD return (power voltage, aircraft Distance from home point, control mode, out-of-control protection status, attitude in pitch direction, attitude in roll direction, flight speed, number of satellites, nose pointing, vertical speed, attitude line, compass error prompt, azimuth angle, airport flight limit prompt ...)
3. Generally, you can learn how to operate it after only 1-2 days’ training.


Precautions for landing:
① Keep the landing speed below 1.5m/s..
② Check whether the position of the landing point is open and flat before landing, and evacuate the crowd.
③ When control the drone to land, pay attention to the speed of the drone and the height from the ground. When the drone descends one meter away from the ground, slow down the speed and let the drone slowly descend until the drone approaches the ground. The operator pulls the throttle down to the extreme, powers off, and the drone landed.
8. After completing the mission, remove the propellers and retract the landing gear. Wipe the dust and other dirt of the drone fuselage and collect it into the aviation aluminum case.


Flight considerations:

1. There should be no obstacles around the take-off place and the view is wide.

2. All personnel involved in the operation, please carefully confirm whether someone/car is close to the venue.

3. Ensure that operators and destination observers can communicate smoothly through the intercom before taking off.

4. Slowly raise the drone and fly smoothly after the attitude is stable.

4. Please observe local standards such as flight altitude, flight speed and flight distance.

5. Please observe local standards such as flight altitude, flight speed and flight distance.

6. The buffer area must be reserved. Please do not fly to the side with obstacles.

7. The remote control operator and safety officer should promptly communicate whether the flight path has obstacles and whether the flight direction is correct.

8. To use the vehicle to move the drone, the operator must never operate the drone on the moving car.

9. In the case of landing for power supply, the operator, safety officer, and operator assistant should confirm the safety of the location.

10. The battery replacement must be performed after confirming that the motor has stopped.

11. Take the rest of the drone every one hour.

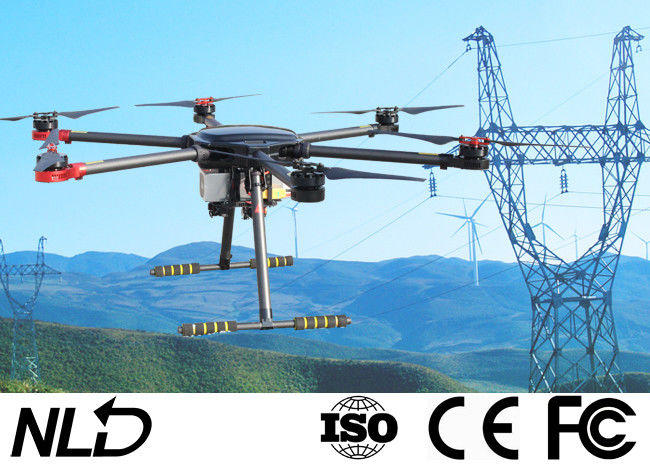

Unmanned 2-4mm Rope 5KG 6 Rotors Aerial Inspection Drone 1

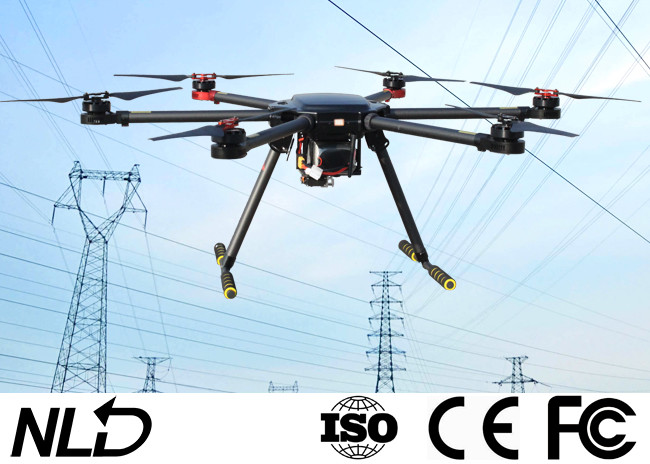

Unmanned 2-4mm Rope 5KG 6 Rotors Aerial Inspection Drone 2

Unmanned 2-4mm Rope 5KG 6 Rotors Aerial Inspection Drone 3
