22L Fertilizer Spraying Drone

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NSA-622-2
Minimum Order Quantity: 1set
Price: Negotible
Packaging Details: Aluminum Box
Delivery Time: 20days
Supply Ability: 100sets/month
Name: Intelligent Herbicide Fertilizer Usage: Pesticide Crop Sprayer
Hovering Accuracy Horizontal: +/- 1.5m Hovering Accuracy Vertical: +/- 0.5m
Wind Resistance: 4~5 Motor: Brushless Motor
ESC: 80A Motor Applicable Temperature: -20~50Celsius
High Light:

22L Fertilizer Spraying Drone

,

FCC Fertilizer Spraying Drone

,

ISO9001 crop spraying drone

22L Intelligent Herbicide Fertilizer Pesticide Drone Spreader Agricultural UAV Crop Sprayer With GPS



Quick details:

Feed tank: 22L;

Paddle: 3090;

Take-off capacity: 42kgs;

Flying time: 10~15min with payload

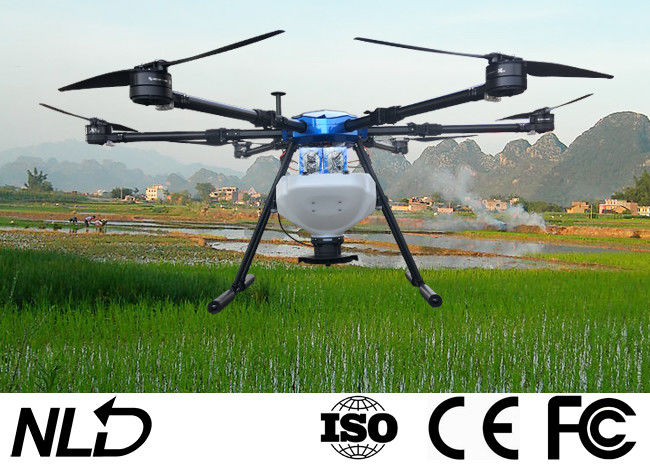

22L Fertilizer Spraying Drone 0



Specification:

Usage: Pesticide Crop Sprayer

FC: 2 CPU + 3 IMU

Tank: 22L

Main Material: Carbon & aviation aluminum

Flight time: 10~15minutes with payload

Spreading width: 3~6meters

Solid particles: 0.5~6mm

one set ready to fly (RTF);

Single drone packing: 100x100x70cm (approximately);

Single case gross weight: 50kgs (approximately);

Package type: Aluminum case

Item NSA410 NSA422 NSA610 NSA622
Axis 4 4 6 6
Feed Tank 10L 22L 10L 22L
Take-off Capacity 28kg 38kg   42kg
ESC 80A 120A   80A
Brushless Motor 100KV 110KV   100KV
Flying distance 5km 5km   5km
Working distance 2km 2km   2km
Paddle 3090 3411   3090
Obstacle avoidance radar Optional
Terrain following radar
FPV Camera
RTK centimeter positioning
Battery 6S/22000mAh / 2pcs 6S/22000mAh / 2pcs   6S 22000mAh / 2pcs
Solid particles 0.5~6mm 0.5~6mm   0.5~6mm
Expand Size 1780*1780*567mm 1848*1848*628mm   2428*2428*600mm
Wheelbase 1362mm 1416mm   1648mm
Folded Size 700*658*567mm 648*671*628mm   1102*979*600mm



Spreading Tank:

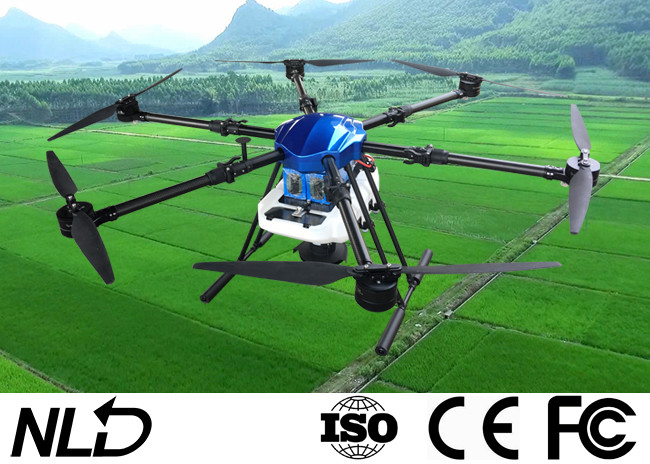

22L Fertilizer Spraying Drone 1

The size of the outlet valve and speed of the turntable can be adjusted, so the discharge volume and the discharge speed can be controlled accurately. At the same time, a stirring device is equipped with the spreader  to prevent the discharge from being blocked, to improve the accuracy and reliability of the spreading operation.



Chassis of Drone

Fully waterproof fuselage

The fuselage is designed the integrated waterproof, Excluding motor and battery parts, the drone is support washing, and the shell surface of the drone adopts the bright blue coating, and eye-catching color beautiful shape. The C-type arm fixing clip design. It can be fixed the arm after the arm is folded, avoiding the problems such as arm swing and sag in the process of handling.

22L Fertilizer Spraying Drone 2



Radar:

Ground defense radar use millimeters-wave radar technology. Through the continuous scanning, the drone sense the terrain change of the flight direction and adjust the height according to the terrain. Strong penetration, not affected by light, all day work, small in size and light in weight;

Obstacle avoidance radar use to effectively avoid the obstacle, it can work all-weather, detect a diagonal pull of more than 1cm cable, 10cm small tree, 15cm electric pole and 1.7m high people. High sensitivity; strong environmental adaptability.



APP Ground Workstaton:

22L Fertilizer Spraying Drone 3
