| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | MK-15 |
| Minimum Order Quantity: | 1set |
| Price: | Negotible |
| Packaging Details: | Carton |
| Delivery Time: | 20days |
| Supply Ability: | 100sets/month |
| Display: | 5.5" LCD High Brightness | Max Brightness: | 1000cd/m2 |
|---|---|---|---|
| Definition: | 1920*1080 | Date Transmission: | 15km |
| Image Transmission: | 15km | System: | Android 9.0 |
| High Light: | IP53 UAV Parts,2K UAV Parts,FPV portable ground control station for uav |
||

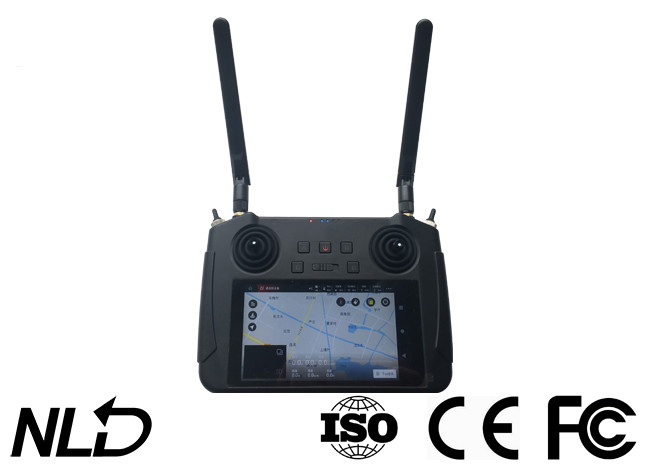

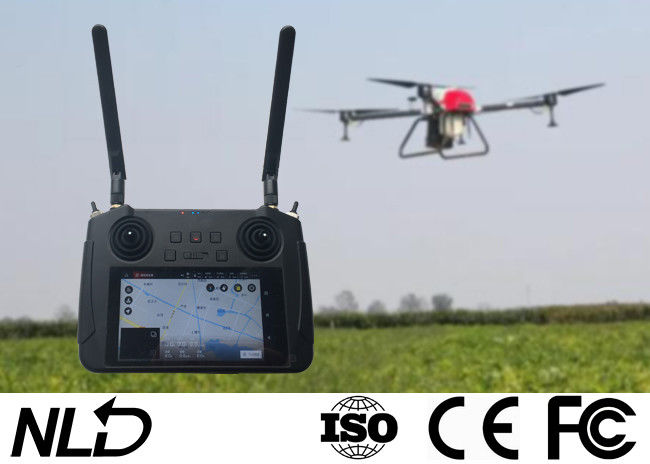

Mini Handheld Ground Station 15 Kilometer Image Transmission Dual 1080P FPV 5.5" 2K High Brightness LCD Screen Display
15KM 1080P Image Transmission
The technology comes with a smart ability to adapt its transmission to better frequency bands, which means it always goes to work on the band with least interference. With the standard omni directional antennas, MK15 system’s effective range can reach up to 15 kilometers. With the long-range antennas coming with MK15 enterprise combos, the range can be up to 30 kilometers with full HD image transmission, real-time telemetry, and stable control.
Dual Full HD Low-Latency Video Stream Display
MK15 receiver supports standard RTSP video stream input through its standard ethernet port directly or converted by HDMI module. The stream is up to two-way 1080p video simultaneously, latency low to *180ms. The pre-installed FPV application supports switching display of two video streams between the main screen and the floating window, and the video stream SDK is fully open to developers.
1000 cd/m2 High Brightness, 1920*1080 High-Definition Monitor
MK15 has a 5.5-inch high-definition and high-brightness LCD screen. Display definition is 1920*1080 pixels. Max brightness is 1000cd/m2, which is almost two times of usual smartphones, crystal clear under direct sunshine.
Specification:
| Overall | |
| Max Transmission Distance | 15 km (unobstructed, free of interference) |
| AG Control Range |
3.5 km (flying at 3-meter height) |
| Channels | 13 |
|
Datalink Supported FC |
PIX / APM |
|
Videolink Supported GCS (Standard RTSP video stream) |
QGroundControl MissionPlanner |
| Transmitter (Ground Unit) | |
|
Monitor |
5.5-inch High Definition and High Brightness LCD Touchscreen |
|
System |
Android 9.0 2G RAM, 16G ROM |
| Dimension (Antenna Folded) |
189 x 138 x 41 mm |
| Weight | 850 g |
| Battery Capacity & Type | 10200 mAh 7.4V 2S Li-on |
| Fast Charging Protocol | PD 30W |
| Battery Life | 15 hours |
|
Interface & Ports |
Charging: Type-C Firmware Upgrade: DATA (4-Pin) Mobile Network: SIM Card Slot External Storage: TF Card Slot Tripod Connect: 1/4-inch Screw Hole Video Output: Standard HDMI External RTK: DATA (4-Pin) Data Transfer: USB-A |
| Waterproof Level | IP53 |
| Working Temperature | -10℃ ~ 55℃ |
| Receiver (Air Unit) | |
| Signal Output |
16 channels of SBUS 5 channels of PWM |
|
Interface & Ports |
S.BUS: 3-Pin Datalink (to FC): UART 4-Pin PWM Channel 1-5: 6-Pin Video Input: 8-Pin Firmware Upgrade: Type-C |
| Dimension (Antenna Excluded) | 70 x 55 x 16 mm |
|
Weight (Antenna Excluded) |
100 g |
| Antenna Gain | 5 dBi |
| Power Input |
25.2 ~ 58.8 V (6S ~ 14S) |
| Working Temperature | -10℃ ~ 55℃ |
| Camera & Searchlight | |
| Camera Angle | FOV 120° |
| Dimension | 106 x 25 x 41 mm |
| Weight | 108 g |
|
Searchlight Power Consumption |
8 W |
| Luminous Flux | 1 W / 120 ~ 140 lm |
| LED Type | Transparent |
| LED Angle | 120° |
| Waterproof Level | IP67 |
| Working Temperature | -10℃ ~ 55℃ |
