| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO CE |
| Model Number: | T10-1 |
| Minimum Order Quantity: | 1set |
| Price: | Negotible |
| Packaging Details: | Carton |
| Delivery Time: | 20days |
| Supply Ability: | 100sets/month |
| Data Transmission: | Max 20Km | Video Transmission: | Max 10Km |
|---|---|---|---|
| Support: | S.Bus PPM PWM | Duration: | Max 20 Hours |
| Technology: | New FHSS | Application: | Multi-rotor; Fix-Wing |
| High Light: | PWM drone flight controller,PPM drone flight controller,2.4Ghz uav flight controller |
||

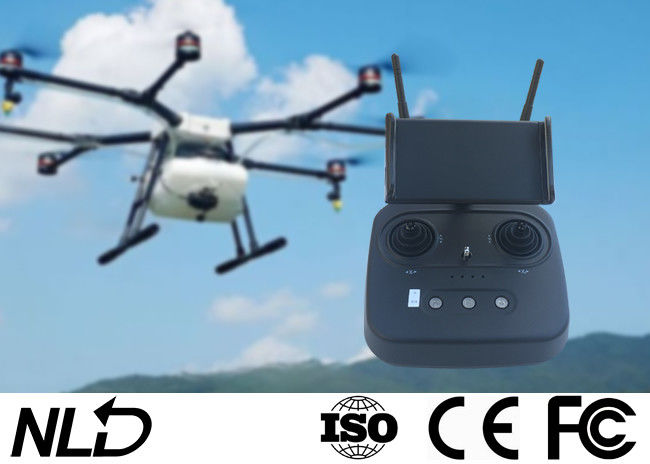

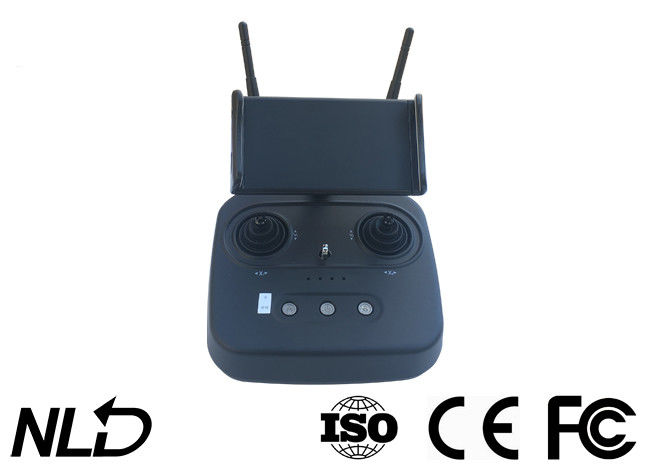

Remote control for Drone Date Transmission 20Km Video Transmisison 10Km Parameter Adjustment Via APP 2.4Ghz
Quick details:
1. The remote control uses the Latest in FHSS (Frequency Hopping Spread Spectrum) technology to achieve perfect control and operation.
2. Integrated with digital video transmission, farthest to 10KM, Integrated with data transmission, farthest to 20KM.
3. Parameter adjustments via APP with upgraded traditional OSD to touch panel control.
4. Connected via Bluetooth or USB, also supports S.BUS, PPM, PWM, Serial ports and external devices, etc.
5. Connects the APP via Bluetooth, switching the operation model, adjusting the data of forward and reverse, rudder volume, channel binding, runaway protection value, SBUS, PPM output and digital baud rate. Providing parameter saving and loading functions.
6. Based on the APP to ensure optimal compatibility with Pixhawk systems. A large map view allows for easy waypoint selection and route planning including one key return to home. Also supports Tower, QGC, JIYI,TOPXGUN and BOYING APR
7. Using 2 pcs of 18650 batteries(Need buy separatedly),endurance over 20 hours with 20DBm transmission frequency.
8. High integrated datalink with video & data transmission and telemetry all in-one unit. Ultra-small size, with folding brackets, strong and stable.
9. A Number of optional cameras can be selected for your application, such as mini digital camera, digital camera with LED, 20 times zoom camera, etc.
Specification:
| Remote Control | |||
| Model | T10 | Channels | 10 |
| Working voltage | 4.2V | Working Current | 100mA |
| Frequency | 2.400-2.483GHz | Modulation | New FHSS |
| Firmware | APP online | Weight | 525g |
| Dimension | 160x150x50mm | Battery Capacitor | 4Ah |
| Duration | Max 20 h | Charge Port | Micro-USB |
| Application | Multi-rotors, Fixed wing, Quadcopter, Car, Boat | ||
| Receiver | |||
| Model | RIO | Channels | 10 |
| Working Current | 100mA | Weight | 20g |
| Working voltage | 4.5~5.5V | Dimension | 50x31x12mm |
| MINI Camera | |||
| Model | MINIDCAM | Size | 30x29x26mm |
| Working Current | 180mA | Weight | 15.6g |
| No. | Description | No. | Description |
| 1 | 2.4G 3dB Antenna | 8 | Power on/off |
| 2 | USB1/video output | 9 | Button B |
| 3 | Three lever switch E | 10 | Right joystick X2 Y2 |
| 4 | Jog wheel C | 11 | Jog wheel D |
| 5 | Left joystick X1 Y1 | 12 | Three lever switch F |
| 6 | battery indicator | 13 | Charging/data transmission |
| 7 | Button A |
| No. | Description |
| 1 | Antenna |
| 2 | Power indicator |
| 3 | Pairing button |
| 4 | Firmware updating |
| 5 | Antenna |
| 6 | Power indicator |
| 7 | Pairing button |
| 8 | Firmware updating |
Environment Condition
EnvironmentTemperature: -10C 〜+55C.
StorageTemperature: -25C〜+70C.
Relative Humidity: Do not exceed 85%.
Atmosphericpressure: 86kPa〜106kPa.
Work!ng environment should not contain explosive material or any corrosive or harmful gas that may cause interference in the operation of the product.
Always work under shelter to prevent rain, snow, wind, sand and dust contamination.
