Single Axis GPS CE Powerline Drone Gimbal Camera For Taking Video And Photo

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NPA-805H-3
Minimum Order Quantity: 1set
Price: Negotible
Packaging Details: Aluminum Box
Delivery Time: 20days
Supply Ability: 100sets/month
Flight Control: DJI NAZA With GPS Name: UAV For Powerline
Use: Powerline String Pilot Rope Rotor: 8 Rotors
Arm Folding: Foldable Battery: Tattu 16000mAh Lithium Battery
High Light:

CE Powerline Drone

,

GPS Powerline Drone

,

Single Axis camera drone camera drone

Drone for Power Line for String Pilot Rope Single Axis Gimbal Camera Use for Taking Video and Photo

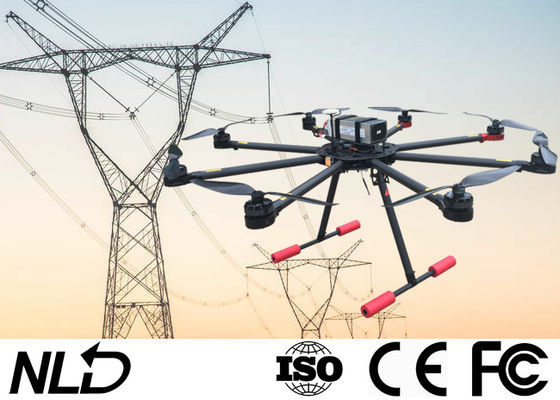

Single Axis GPS CE Powerline Drone Gimbal Camera For Taking Video And Photo 0

Specification:

Modle: NPA-805H
Gimbal Single axis Camera 720P
Fail-Safe Included GPS Included
Motor axle distance 1080mm Height with support 450mm
Max payload 8kg No-load endurance 25-30min
Max take-off weight 14kg Load endurance 12-18min
Flying speed 0~15m/min Flight mode Manual control; ATT; GPS
Drone empty weight 4kg Battery Tattu 16000mAh 6S Lip
Max flight distance 2~4km Flight height 0~1000m
Working Temperature -5℃~50℃ Diameter of pilot rope 2~4mm
Functions: GPS positioning, full-auto return, semi-auto return, runaway protection, headless mode, heading lock, low-voltage protection alarm, battery power backhaul, national exclusive high beam function, OSD flight data real-time backhaul, etc.

Component
1 Drone DJI NAZA V2 flight control with GPS 1 set
2 Professional Dual Channel Battery charger 1 set
3 Professional remote controller T10 1 set
4 16000mAh Tattu lithium battery 2 pcs
5 Battery for remote controller 1 pcs
6 Battery voltage capacity checker 1 set
7 Tool kits 1 set
8 Aviation aluminum case 1 pcs
9 Spare screws 1 pack
10 Backup battery strap 4 pcs
11 Spare propeller 8 pcs
12 6.5" Mobile phone as dispaly



Remote control

Controller data
Model T10 Skydroid Channels 10
Voltage 4.2V Current 100mA
Frequency 2.400~2.483GHz Modulation FHSS
Firmware APP Weight 525g
Dimension 160*150*50mm Battery Capacitor 4000mAh
Duration 10h Charge Port Micro-USB
Receiver Specifications
Model RIO Size 50*31*12mm
Current 100mA Weight 20g
Voltage 4.5~5.5V Channels 10



Digital Camera

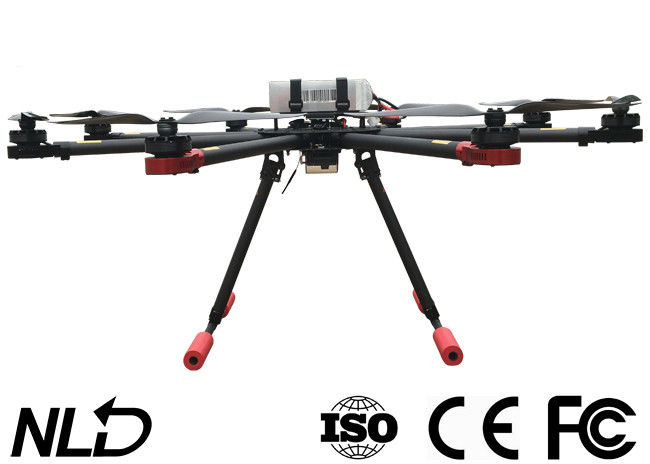

Single Axis GPS CE Powerline Drone Gimbal Camera For Taking Video And Photo 1

General Parameter
Product Digital camera
Working voltage 5V
Working current 180mA
Weight 67g
Size 71*51*48mm
Interface Type Network interface
Control display mode Windows system PC; Android phone, tablet
Environment parameter
Working environment temp. -10℃ ~ 50℃
Gimbal parameter
Gimbal Single axis
Controllable rotation range Pitch: +10°~90°
Camera parameter
Resolution 720P
Working method Video, photo
Support memory card type Micro SD card 128G (maximum)



Notes:

The configuration remote control, battery, charger are brand accessories, better quality and more powerful. Equipped with brand Tattu lithium battery, best quality. If the amount of engineering is large and the drone needs to work for a long time, you can contact the procurement of batteries at any time in the later stage.



More photos

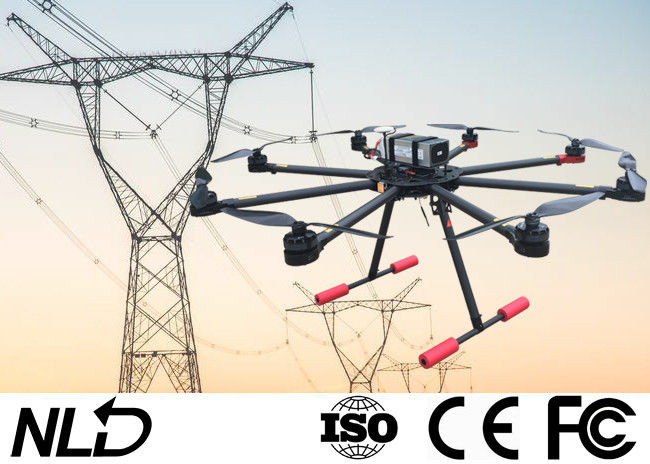

Single Axis GPS CE Powerline Drone Gimbal Camera For Taking Video And Photo 2

Single Axis GPS CE Powerline Drone Gimbal Camera For Taking Video And Photo 3

Single Axis GPS CE Powerline Drone Gimbal Camera For Taking Video And Photo 4

and Take-up Reel
