| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | NPA-805H-7 |
| Minimum Order Quantity: | 1set |
| Price: | Negotible |
| Packaging Details: | Aluminum Box |
| Delivery Time: | 20days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 100sets/month |
| Flight Duration: | 25~30minutes | Flight Control: | DJI NAZA With GPS |
|---|---|---|---|
| Max Video Transmission: | 10km | Remote Control: | Skydroid T10 |
| Material: | Carbon Fiber & Aluminum | Battery: | 16000mAh Lithium Battery |
| High Light: | Single Axis Powerline Drone,ISO9001 Powerline Drone,T10 power drone |
||

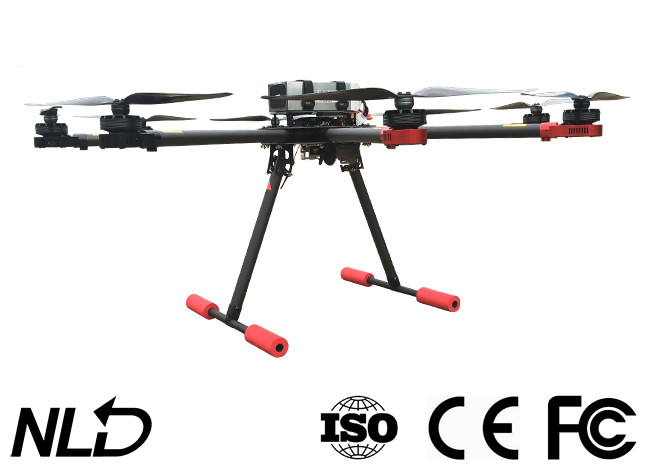

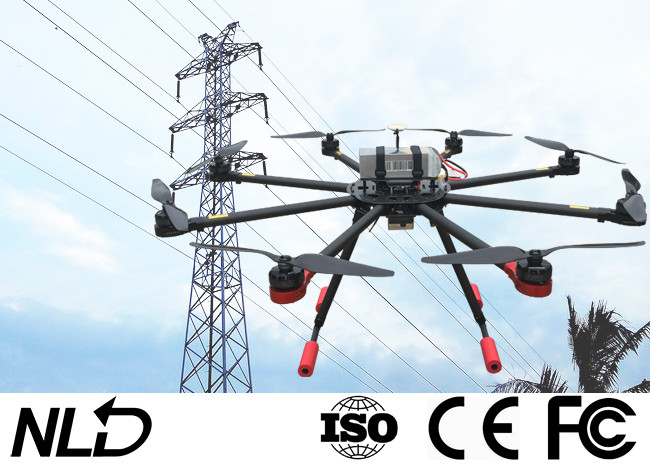

Professional Drone to String Power Line Long Flight Duration Electric Powered with Intelligent Flight Control
Specification:
| Modle number | NPA-805H | ||
| Rotor | 8 | Propeller | 8 |
| Motor | 8 brushless | Aircraft arm | 8 foldable |
| Gimbal | Single axis | Camera | 720P |
| Fail-Safe | DJI flight system | GPS | DJI system |
| Motor axle distance | 1080mm | Height | 450mm |
| Maxinum payload | 8kg | No-load flying time | 25-30min |
| Maxinum take-off weight | 14kg | Load flying time | 12-18min |
| Maxinum flying speed | 15m/min | Flight mode | Manual control; ATT; GPS |
| Drone empty weight | 4kg | Battery | Tattu 16000mAh 6S |
| Max flight distance | 2~4km | Flight height | from 0~1000m |
| Working Temperature | -5℃~50℃ | Diameter of pilot rope | 2~4mm |
| Functions: battery power backhaul, national exclusive high beam function, OSD flight data real-time backhaul, full-auto return, semi-auto return, low-voltage protection alarm, GPS positioning, runaway protection, headless mode, heading lock, etc. | |||
| 1 | Drone with DJI Intelligent flight control system | 1 set |
| 2 | Dual Channel Battery Charger 200W | 1 set |
| 3 | Remote controller T10 with Charger | 1 set |
| 4 | 16000mAh lithium battery Tattu | 2 pcs |
| 5 | Battery for remote controller | 1 pcs |
| 6 | Battery voltage checker | 1 set |
| 7 | Drone Tools | 1 set |
| 8 | Aviation aluminum case box | 1 pcs |
| 9 | Spare screws | 1 pack |
| 10 | Backup battery strap | 4 pcs |
| 11 | Spare propeller | 8 pcs |
| 12 | 6.5" Mobile phone | 1 set |
Remote control
| Remote Controller | |||||||||
| Model | T10 remote control | Channels | 10 channels | ||||||
| Voltage | 4.2V | Current | 100mA | ||||||
| Frequency | 2.400~2.483GHz | Modulation | New FHSS | ||||||
| Dimension | 160x150x50mm | Battery | 4000mAh | ||||||
| Duration | 10h | Charge Port | Micro-USB | ||||||
| Receiver | |||||||||
| Model | RIO | Size | 50x31x12mm | ||||||
| Current | 100mA | Weight | 20g | ||||||
| Voltage | 4.5~5.5V | Channels | 10 channels | ||||||
Digital Camera
| Camera | |
| Resolution | 720P |
| Working method | Video, photo |
| Support memory card type | Micro SD card Max 128G |
| Working voltage | 5V |
| Working current | 180mA |
| Camera Weight | 67g |
| Camera Size | 71x51x48mm |
| Interface Type | Network interface |
| Control display mode | Windows system PC; Android phone, tablet |
| Environment | |
| Working environment temp. | -10℃ ~ 50℃ |
| Gimbal | |
| Camera Gimbal | Single axis gimbal |
| Controllable rotation range | Pitch: +10°~90° |
Notes:
The configuration T10 remote control, DJI flight control, Tatty battery, charger mobile phone are famous brand accessories, better quality and more powerful. Flight control from DJI company, quality guarantee, Mobil phone as display from Redmi brand, and our drone equipped with brand Tattu lithium battery, the best quality. If the amount of engineering is large and the drone needs to work for a long time, you can contact the procurement of our company at any time in the later stage.
