| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | NPA-805H-9 |
| Minimum Order Quantity: | 1set |
| Price: | Negotible |
| Packaging Details: | Aluminum Box |
| Delivery Time: | 20days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 100sets/month |
| Flight Control: | DJI NAZA | Name: | Drone For Transmission Line Cable Construction |
|---|---|---|---|
| Use: | String Pilot Rope | Rotor: | 8 Rotors |
| Arm Folding: | Arm Foldable | Battery: | Tattu 16000mAh Lithium Battery |
| High Light: | UAV Powerline Drone,DJI NAZA Powerline Drone,CE uav drone |
||

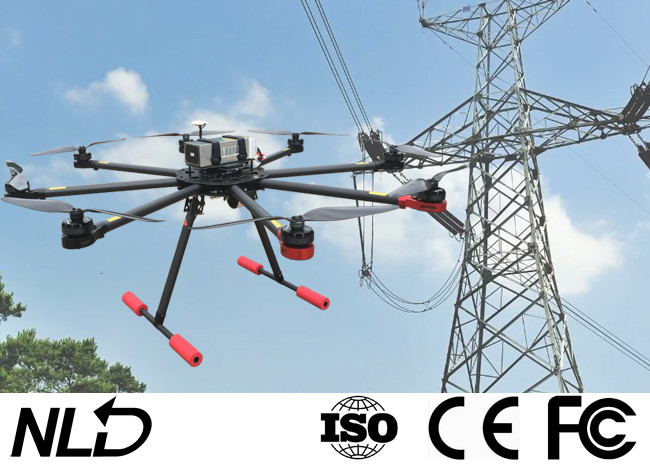

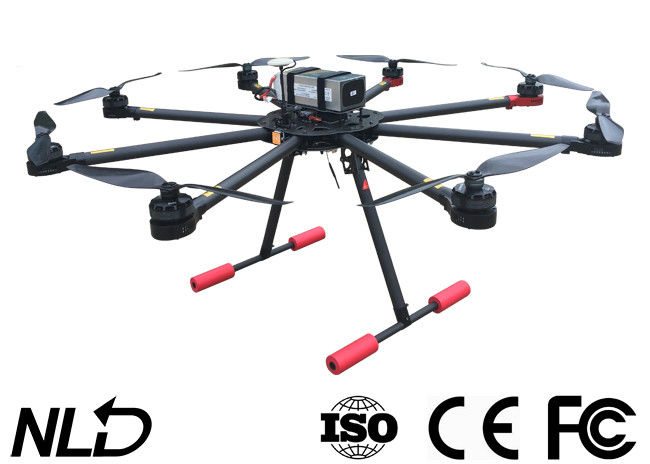

Profession UAV Transmission Line Cable Construction Mission Drone Reliable with Tattu Lithium Battery and Take-up Reel
Specification:
| Model: NPA-805H | |||
| Working Temperature | -5℃~50℃ | Pilot rope | 2~4mm |
| Flying speed | Maxinum 15m/min | Flight mode | ATT; GPS; Manual |
| Fail-Safe | Dji system | GPS | Dji GPS |
| Maximum tension | 8kg | No-load endurance | 25-30min |
| Maximum take-off weight | 14kg | Load endurance | 12-18min |
| Empty weight | 4kg | Battery | 16000mAh 6S |
| Maximum flight distance | 2-4km | Flight height | 0-1000m (adjustable) |
| Axle distance/Full height | 1080mm/450mm | Camera | with 720P camera |
| GPS positioning | Full-auto return | Semi-auto return |
| Runaway protection | Headless mode | Heading lock |
| Low-voltage protection alarm | Battery power backhaul | National exclusive high beam function |
| OSD flight data real-time backhaul |
| 1 | Drone DJI NAZA V2 flight control | 1 set |
| 2 | Dual channel lithium battery charger | 1 set |
| 3 | Professional remote control | 1 set |
| 4 | 16000mAh Tattu battery | 2 pcs |
| 5 | Remote control battery with charger | 1 pcs |
| 6 | Battery voltage checker | 1 set |
| 7 | Tool kits | 1 set |
| 8 | Aviation AL box | 1 pcs |
| 9 | Spare screws | 1 pack |
| 10 | Backup battery strap | 4 pcs |
| 11 | Spare propeller | 8 pcs |
| 12 | 6.5" display mobile phone 5M + 13M camera | 1 set |
Remote control
| Remote Controller details: | |||||||||
| Working voltage | 4.2V | Working Current | 100mA | ||||||
| Frequency | 2.400-2.483GHz | Modulation | New FHSS | ||||||
| Firmware | APP online | Weight | 525g | ||||||
| Dimension | 160*150*50mm | Battery Capacitor | 4000mA | ||||||
| Duration | 10(Hours) | Charge Port | Micro-USB | ||||||
| Receiver Specifications | |||||||||
| Model | RIO | Size | 50*31*12mm | ||||||
| Working Current | 100mA | Weight | 20g | ||||||
| Working voltage | 4.5~5.5V | Channels | 10 | ||||||
| Camera Specifications | |||||||||
| Gimbal | Single axis | Size | 71*51*48mm | ||||||
| Controllable rotation range | Pitch +10°~90° | Weight | 67g | ||||||
| Working Current | 180mA | Working temperature | -10°C~50°C | ||||||
Notes:
1. The above configuration remote control, flight control, battery, charger are branded accessories, better quality and more powerful. Equipped with Tatty brand batteries, DJI brand flight control. If the amount of engineering is large and the drone needs to work for more long time, you can contact us at any time in the later stage.
2. Our drone function covers all the functions in the market. The features include but are not limited to: GPS positioning, semi-automatic return, fully automatic return, headless mode, locked heading, low voltage protection alarm, out of control return, on-board electrical display, high beam, camera OSD return (data information like: power voltage, aircraft Distance from home point, control mode, out-of-control protection status, attitude in pitch direction, attitude in roll direction, flight speed, number of satellites, nose pointing, vertical speed, attitude line, compass error prompt, azimuth angle, airport flight limit prompt ...)
More photos
Tattu battery
DJI NAZA V2 flight control system
Take-up reel
