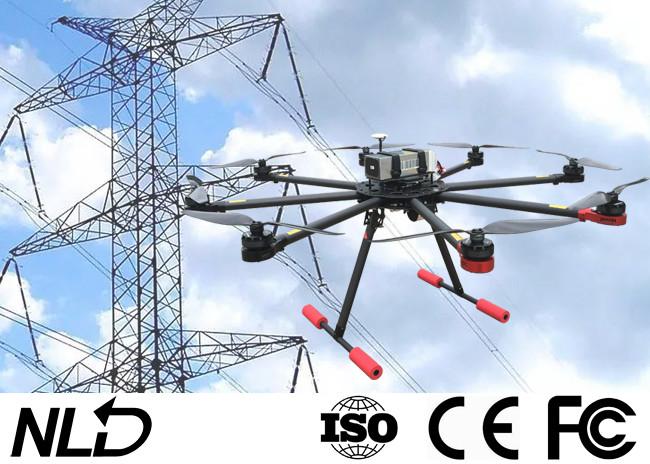

2-4mm Pilot Rope CE T10 Unmanned Aerial Vehicle Drone

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NPA-805H-13
Minimum Order Quantity: 1set
Price: Negotible
Packaging Details: Aluminum Box
Delivery Time: 20days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month
Flight Control: DJI NAZA Flight System Name: UAV For Power Line Construction
Use: String Pilot Rope Remote Controller: Skydroid T10
Arm Folding: Foldable Arm For Easy Packing Battery: Tattu Lithium 16000mAh
High Light:

T10 Unmanned Aerial Vehicle Drone


CE Unmanned Aerial Vehicle Drone


Aerial powerful drone

UAV Unmanned Aerial Vehicle for Power Line Construction Stringing 2~4mm Pilot Rope and Release Through Manual Hook
2-4mm Pilot Rope CE T10 Unmanned Aerial Vehicle Drone 0

Item: NPA-805H
HookManual operateDiameter of pilot rope2~4mm
Max payload8kgsMax takeoff weight14kgs
Flight controlDJI NAZARemote controlSkydroid T10
Motor wheelbase1080mmCamera720P Camera
Height450mmNo-load endurance25-30min
Maximum take-off weight14kgLoad endurance12-18min
Flying speed0~15m/minFlight modeATT; GPS
Empty weight4kgBattery16000mAh 6S
Maximum flight distance2~4kmFlight height0~1000m (adjustable)
Working Temperature-5℃~50℃
Functions: GPS positioning + full-auto return + semi-auto return + runaway protection + headless mode + heading lock + low-voltage protection alarm + battery power backhaul + OSD flight data real-time backhaul, etc.
1Drone DJI NAZA flight control1 set
2Skydroid remote control1 set
3Tattu 16000mAh battery1 set
4200W dual channel 6S battery charger1 set
5Remote control battery charge1 set
6Redmi Mobile Phone 6.5" 5000mAh 13M+5M camera1 pcs
7Battery voltage capacity checker1 set
8Tool kits1 set
9Aviation aluminum box1 pcs
10Spare screws1 pack
11Backup battery strap4 pcs
12Spare propeller8 pcs

Remote control

Remote Controller Skydroid
Date transmission20kmsImage transmission 10kms
Working voltage4.2VWorking Current100mA
Frequency2.400~2.483GHzModulationNew FHSS
FirmwareAPP onlineWeight525g
Dimension160-150-50mmBattery Capacitor4000mA
Duration20(Hours)Charge PortMicro-USB
Remote Control Receiver Specifications
Working Current100mAWeight20g
Working voltage4.5~5.5VChannels10
Camera Specifications
Working Current180mAWeight67g
GimbalSingl axisWorking methodVideo & Photo
Interface typeNetwork interfaceControl displayAndroid phone

1. The configuration flight control, remote control, lithium battery, battery charger are branded accessories, better quality and more powerful. Equipped with Tatty brand battery, Dji flight control, Skydroid remote control, ISDN battery charger. If the amount of engineering is large and the drone needs to work for a long time, you can contact with us at any time in the later stage.
2. The drone function of our company covers all the functions in the market. Features include but are not limited to: GPS positioning, semi-automatic return, fully automatic return, headless mode, locked heading, low voltage protection alarm, out of control return, on-board electrical display, high beam, camera OSD return ( We also can supply upgraded version of flight control system to supply flight control information return function: power voltage, aircraft Distance from home point, control mode, out-of-control protection status, attitude in pitch direction, attitude in roll direction, flight speed, number of satellites, nose pointing, vertical speed, attitude line, compass error prompt, azimuth angle, airport flight limit prompt ...)
More photos

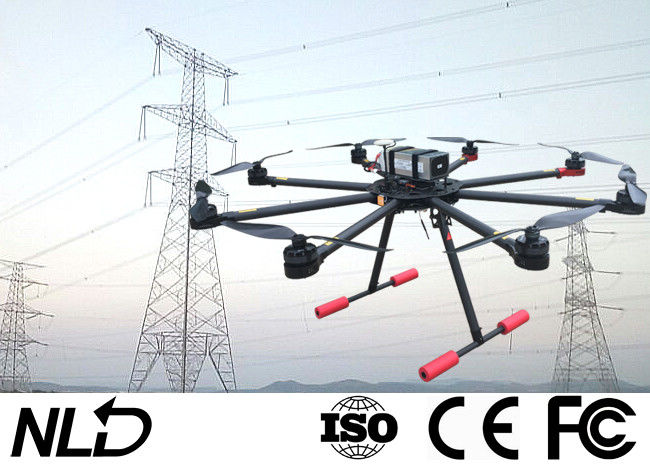

2-4mm Pilot Rope CE T10 Unmanned Aerial Vehicle Drone 1

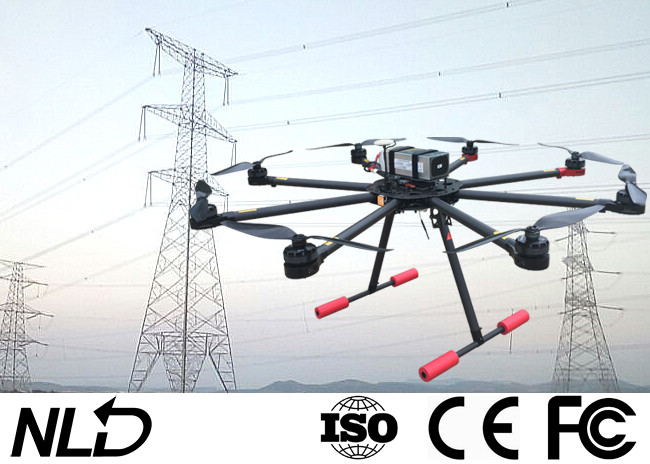

2-4mm Pilot Rope CE T10 Unmanned Aerial Vehicle Drone 2
Tattu battery
DJI NAZA flight control
2-4mm Pilot Rope CE T10 Unmanned Aerial Vehicle Drone 3
Take-up reel
