ISO9001 1260W Lipo 240V 12S Lithium Battery Charger

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: PC1260
Minimum Order Quantity: 1set
Price: Negotible
Packaging Details: Carton
Delivery Time: 20days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month
Name: 12S Lipo Battery Charger Working Modes: Fast, Balance, Storage
Display: LCD Display Battery Port: XT90
Input Voltage: 100~240V Output Power: 1260W
High Light:

240V 12S Lithium Battery Charger

,

1260W 12s lithium battery charger

,

ISO9001 12s lipo battery charger

Dual Channel 12S Lipo Lithium Battery Charger 3 Working Modes, Fast Charger, Balance Charger and Storage

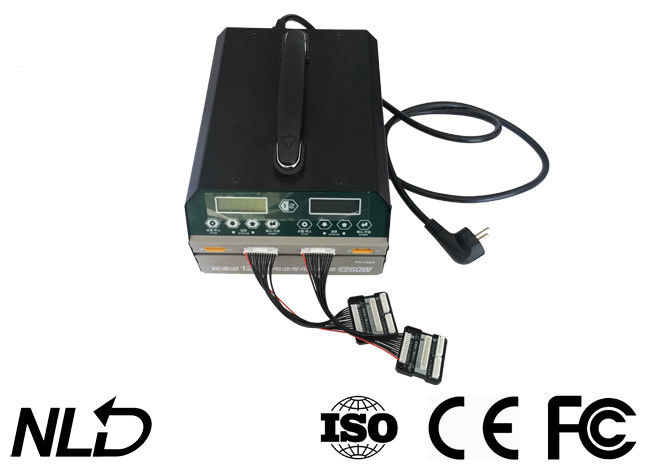

ISO9001 1260W Lipo 240V 12S Lithium Battery Charger 0

Introduction:

PC1260 is a dual channel LiPo battery charger, which is capable of balance charging 2 packs of 12 cell LiPo batteries simultaneously. There are three working modes, fast charge, balance charge and storage.
PC1260 is easy to operate, and its Master-Slave mode can help avoid unnecessary settings. With this mode available, pieces of PC1260 charger units are able to be connected and controlled for synchronous settings through data cables, thus significantly saving time for setting. In addition, PC1260 has short-circuit, reverse polarity and over-heat protection to ensure maximum safety.

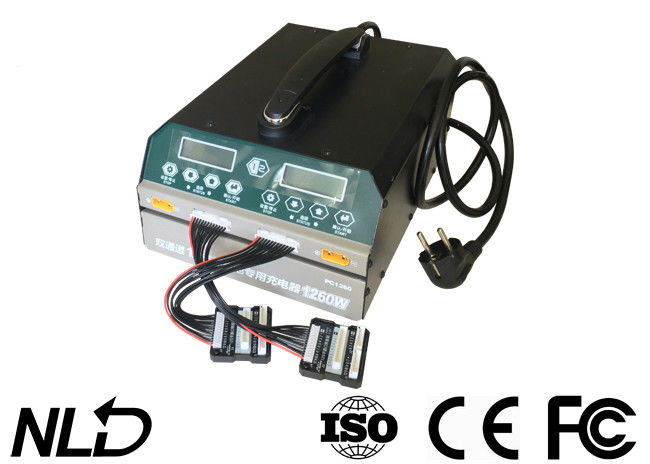

ISO9001 1260W Lipo 240V 12S Lithium Battery Charger 1

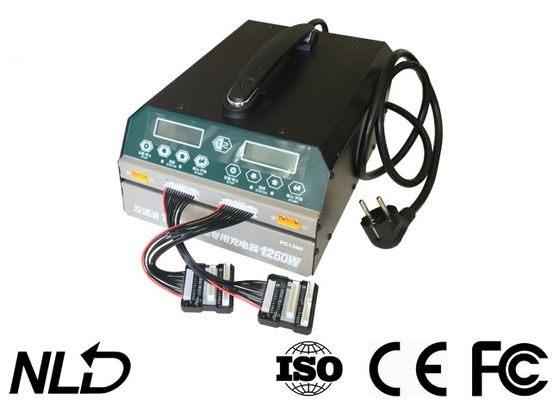

ISO9001 1260W Lipo 240V 12S Lithium Battery Charger 2
Feathres
Support charging 2 packs of 12s LiPo batteries simultaneously Support LiPo high voltage (LiHV) battery
Memorizing last charging current Three working modes: fast charge, balance charge & storage
Mater-Slave mode available Synchronize 2 or more chargers via data cable
Maximum safety: short circuit protection, reverse polarity protection & over heat protection Adjustable charge current (1.0-12.0A)
2x16 LCD screen Battery voltage meter
Battery internal resistance meter Firmware upgrade via USB port

Specifications
Input Voltage: 100-240V
Output Power: 1260W (630W*2)
Discharge Power: 100W (50W*2)
Charge Current: 1.0-12.0A*2
Balance Current: 1.5A
Battery Type: LiPo/LiHV
Battery Cell: 12S*2
Working Mode: Fast charge / Balance charge / Storage
Size: 272*202*118.6mm
Weight: 4.88kg

Warning and safety precautions
These warnings and safety notes are particularly important. Please follow the instructions for maximum safety.
Otherwise the charger and the battery can be damaged or at worst it can catch fire.
Never leave the charger unattended when it is connected to its power supply. If any malfunction is found, TERMINATE THE PROCESS AT ONCE and refer to the operation manual.
Keep the charger well away from dust, moist, rain, heat, direct sunshine and vibration.
Never drop it.
The allowable AC input voltage is AC 100-240V.
This charger and the battery should be put on a heat-resistant, non-inflammable and non-conductive surface.
Never place them on a car seat, carpet or the like. Keep all the inflammable and volatile materials away from
the operating area.
Make sure you know the specifications of the battery to be charged or discharged to ensure it meets the requirements of this charger. If the program is set up incorrectly, the battery and charger may be damaged. It can cause fire or explosion due to overcharging.
Never attempt to charge or discharge the following types of batteries
A battery pack which consists of different types of cells (including different manufacturers)
A battery already fully charged or just slightly discharged
Non-rechargeable batteries (Explosion hazard)
A battery requires a different charge technique
A faulty or damaged battery
A battery fitted with an integral charge circuit or a protection circuit.
Batteries installed in other devices or connected to other parts.
Batteries that are not expressly stated by the manufacturer to be suitable for the currents the charger delivers during the charge process.
