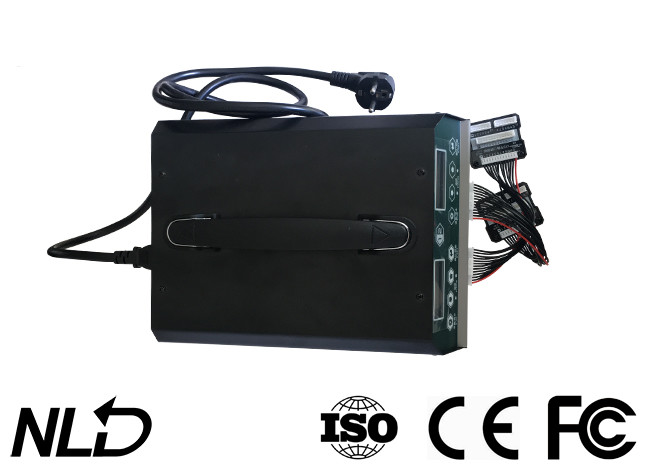

2x12A Discharge Power 100W UAV Parts , FCC 12S Battery Charger

2x12A Discharge Power 100W UAV Parts , FCC 12S Battery Charger
2x12A Discharge Power 100W UAV Parts , FCC 12S Battery Charger 2x12A Discharge Power 100W UAV Parts , FCC 12S Battery Charger
Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: PC1260-2
Minimum Order Quantity: 1set
Price: Negotible
Packaging Details: Carton
Delivery Time: 20days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month
Contact Now
Name: 12S Lipo LiHv Battery Charger Output Power: 1260W
Discharge Power: 100W Charge Currency: 12A*2
Balance Current: 1.5A Battery Cell: 12S*2
High Light:

ISO9001 100W UAV Parts

,

ISO9001 12A UAV Parts

,

ISO9001 FCC 12S Battery Charger

12S Lipo LiHv Lithium Battery Charger Two Channels Output Power 1260W, Discharge Power 100W, Charge Currency 12A*2

2x12A Discharge Power 100W UAV Parts , FCC 12S Battery Charger 0

Warranty and service
We guarantee this product to be free of manufacturing and assembly defects for a period of one year from the time of purchase. The warranty only applies to material or operational defects, which are present at the time of purchase.
During that period, we will repair or replace free of service charge for products deemed defective due to those causes.
This warranty is not valid for any damage or subsequent damage arising as a result of misuse, modification or as a result of failure to observe the procedures outlined in this manual.

Specifications
Battery Type: LiPo/LiHV Battery Cell: 12S*2
Working Mode: Fast charge / Balance charge / Storage Input Voltage: 100-240V
Output Power: 1260W (630W*2) Discharge Power: 100W (50W*2)
Charge Current: 1.0-12.0A*2 Balance Current: 1.5A
Size: 272*202*118.6mm Weight: 4.88kg

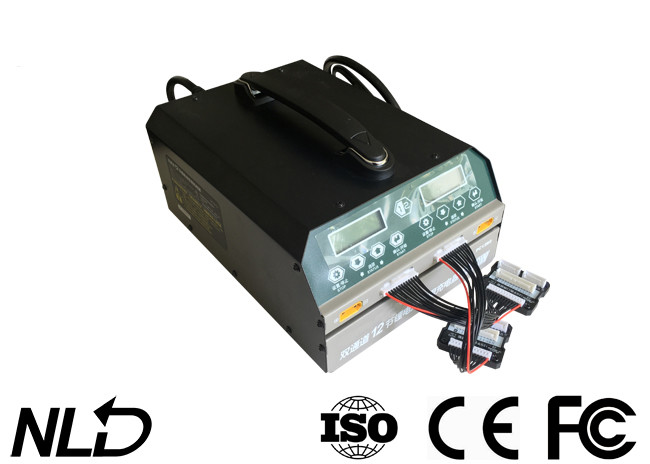

2x12A Discharge Power 100W UAV Parts , FCC 12S Battery Charger 1

Feathres
Support charging 2 packs of 12s LiPo batteries simultaneously Support LiPo high voltage (LiHV) battery
Memorizing last charging current Three working modes: fast charge, balance charge & storage
Mater-Slave mode available Synchronize 2 or more chargers via data cable
Maximum safety: short circuit protection, reverse polarity protection & over heat protection Adjustable charge current (1.0-12.0A)
2x16 LCD screen Battery voltage meter
Battery internal resistance meter Firmware upgrade via USB port

Warning and safety precautions
Please bear in mind the following points before beginning charging:
Did you select the appropriate program suitable for the type of battery you are charging?
Did you set up adequate current for charging?
Have you checked that all connections are firm and secure?
Make sure there are no intermittent contacts at any point in the circuit.

Charging
During the charge process, a specific quantity of electrical energy is fed into the battery. The charge capacity is calculated by multiplying charge current by charge time. The maximum permissible charge current varies depending on the battery type or its performance, and can be found in the information provided by the battery manufacturer. Only batteries that are expressly stated to be capable of quick-charge are allowed to be charged at rates higher than the standard charge current.
Connect the battery to the terminal of the charger. Red is positive and black is negative. Due to the difference between resistance of cable and connector, the charger cannot detect resistance of the battery pack. The essential requirement for the charger to work properly is that the charge lead should be of adequate conductor cross-section and that high quality connectors which are normally gold-plated should be fitted to both ends.
Always refer to the manual by the battery manufacturer about charging methods, recommended charging current and charging time. Especially, the lithium battery should be charged strictly according to the charging instruction provided by the manufacturer.
Special attention should be paid to the connection of lithium battery.
Do not attempt to disassemble the battery pack arbitrarily.
Be aware that lithium battery packs can be wired in parallel or in series. When the battery is connected in parallel, its capacity is calculated by multiplying the single battery capacity by the number of cells with the total voltage staying the same. Voltage imbalance may cause fire or explosion. Lithium battery is recommended for charging in series.
The charger is not suitable for children under 14 years old. People with behavior disturbance, mental disorder or no experience should use it under the supervision and guidance . Children are forbidden to play with it. They are also NOT allowed to clean and maintain the device without the supervision.
If the power cord is damaged, please return it back to the us, supplier or technicians for replacement for fear of danger.
