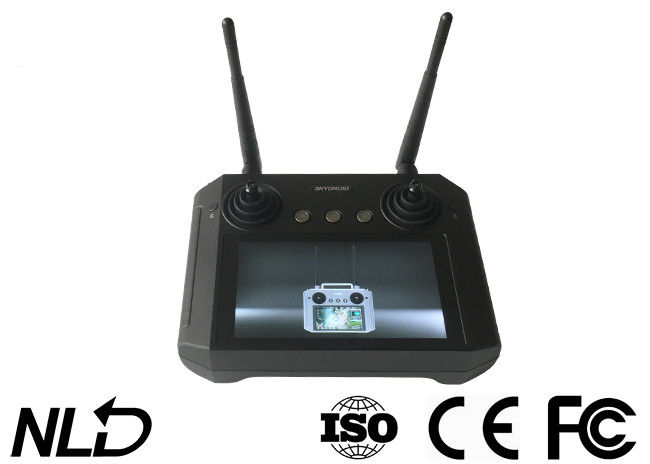

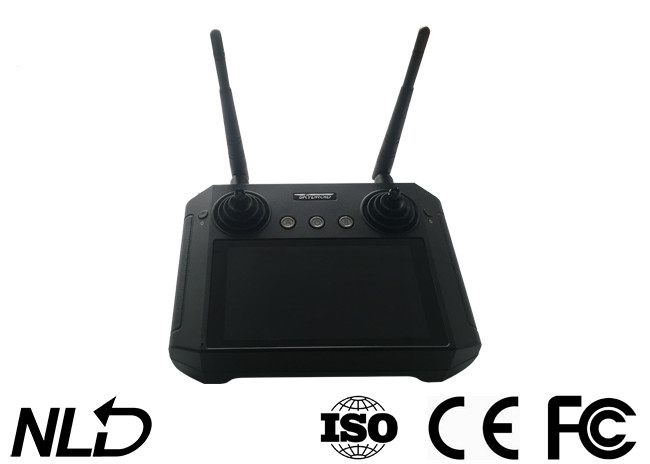

ISO9001 H12 10000mAh UAV Parts , 1920x1080 IPS FPV Drone Remote

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: H12
Minimum Order Quantity: 1set
Price: Negotible
Packaging Details: Carton
Delivery Time: 20days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month
Name: H12 Remote Controller Dispaly: 5.5" High Brightness
Datalink Distance: 5~30km Battery: 10000mAh
Endurance: 6~20hours Screen Pixels: 1920x1080
High Light:

10000mAh UAV Parts


H12 UAV Parts


1080 IPS fpv drone remote

Remote Controller 5.5" High Brightness Display Ultra-long Datalink 5~30km, 10000mAh Built-in Battery Max 20 Hours

ISO9001 H12 10000mAh UAV Parts , 1920x1080 IPS FPV Drone Remote 0


H12 series uses newest Qualcomm processor, equipped with an Android embedded system and advanced SDR technology and super protocol stack. Make the image clearer, lower the latency, longer distance, stronger anti-infection, whether it is drones, robots, industrial control equipment, etc. can be applied. Supports SIM, digital camera, serial port, sbus and other richful interfaces. Agricultural drones, FPV security, fire protection, electricity, surveying and mapping robots, border defense, etc. can all be handy likes on-site experience. Using waterproof, dust-free and drop-proof materials and structure, ensures not only feels good, but also durable!

Ultra HD 55" high brightness display

Ultra-long datalink FHSS spread spectrum technology, full-angle gain antenna, measured pull distance 5-30 kilometers

Long endurance 10000mAh built-in battery, 6-20 hours endurance

Super Scalability S.BUS/PPM/PWM/serial port and other interfaces
Super open source Provide SDK and protocol documents

Super easy to use Android system for drones


Mdel H12 Channels 12
Working voltage 4.2V RF Power 20DB@CE
Frequency 2.400-2.483GHz Modulation Newest FHSS
Firmware APP Update online Weight 540g
Dimension 190*161*95mm Battery 10000mA
Duration 6~20(Hours) Charge Port TYPE-C
Application Helicopter, Fixed wing, Multi-rotor, Unmanned vehicle, Unmannedoat
Receiver Specifications
Model R12 Size 51*41*13mm
RF Power 140mA@5V Weight 14g
Working voltage 4.5~5.5V Channels 12








1920X1080 high brightness display

H12 supports digital camera, serial port transparent transmission, sbus and other richful interfaces, provides development kits, SDK and technical support, supports video suspension, supports mainstream flight control ground stations, QGC, and wireless RTSP video streaming sharing.


Powerful datalink transmission

The dual antenna signals complement each other, ultra-high sensitivity, ultra-long distance, and advanced frequency hopping algorithms, which greatly increase the weak signal communication capability.While receiving remote control signals, reserved Tx, Rx and return flight data to the ground remote control. Maximize the use of 2.4G wireless bandwidth to solve the shortcomings of instability and non-interference in frequency bands of 433 and 915 in small drones and crowded spaces.


Android app of device helper

Use H12Tool to quickly switch hand mode, adjust channel forward and reverse, rudder volume, channel binding, out of control protection value, SBUS, PPM output and data transmission baud rate and other data.

Provides one-key parameter adjustment function, one-key configuration for different manufacturers and models, and can be called at any time after one-time adjustment and saving.

Upgrade firmware over the air through the device helper APP.


Ground station APP

Ground Station has undergone a lot of optimization based on QGC, a better interactive interface, a larger controllable map field of viewing, the aircraft implements intelligent waypoint planning, automatic execution, automatic follow up, and one-click home, highly provides working effectiveness in professional fields.
