100-240V 3A UAV Parts , 200W Lithium Battery Charger

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: D2
Minimum Order Quantity: 1set
Price: Negotible
Packaging Details: Carton
Delivery Time: 20days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month
Name: 1~6S Lithium Battery Charger Support Battery Type: LiFe/Lilon/LiPo/Lihv LiMH/Cd Pb
Input Voltage: 100~240V Charge Current: 0.1~12A*2
Discharge Current: 0.1~3A*2 Max Charge Power: 200W
High Light:

240V 3A UAV Parts


240V UAV Parts


240v ISO9001 200W Lithium Battery Charger

Dual Smart Charger for 1~6S Lithium Battery Charger Power 200W Charge Current 12A*2 Discharge Current 3A*2

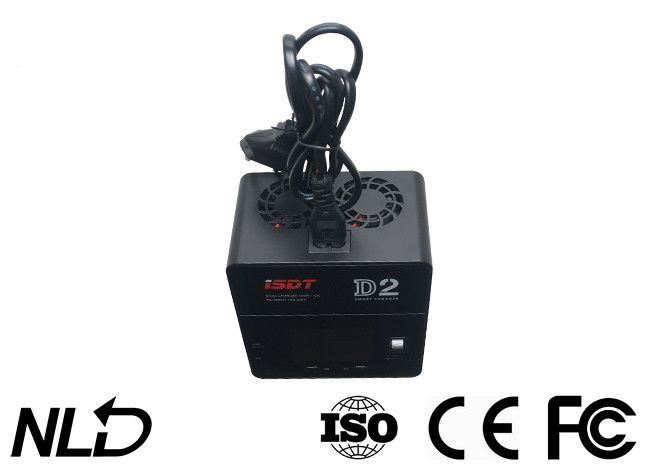

100-240V 3A UAV Parts , 200W Lithium Battery Charger 0


Input Voltage: AC 100~240V Supported Batt. Type: LiFe/Lilon/LiPo/LiHv (1~6S)
Charge Current: 0.1~12.0A*2 NiMH/Cd(1~16S)
Discharge Current: 0.1~3.0A*2 Pb(1~12S)
Max Charge Power: 200W Display: 2.4"  320x240 IPS LCD
Max Discharge Power: 5W*2 Operating Temperature: 0~40°C
Balance Current: 1A/Cell*2 Storage Temperature: -20~60°C
Balance Cells: 1~6S*2 Dimensions: 120x108x70mm
  Weight: 510g

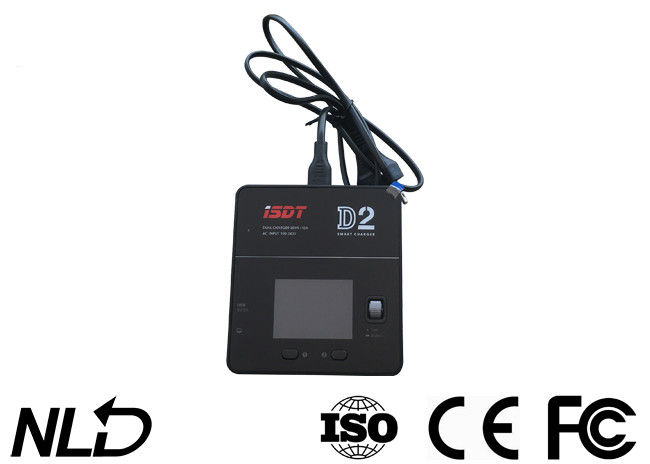

100-240V 3A UAV Parts , 200W Lithium Battery Charger 1

1. AC input 2. USB port 3. Update port 4. Balance port for channel 1
5. Battery port for channel 1 6. Battery port for channel 2 7. Balance port for channel 2 8. Channel 1 select button
9. Channel 2 select button 10. 2.4" IPS display 11. Speed shuttle key


How to Confirm Charging Current
It is very important to know the maximum charging current of the battery as excessive current could influence the life span of battery and/or cause damages. In addition, excessive current can cause heating and/or explosion of the battery during the charging process.
The charging and discharging capacity of battery is usually marked with C value. Multiplying the charging C value and battery capacity equals to the maximum charging current supported by the battery. For example, for a 1000 mAh battery with a charging capacity of 5C, the maximum charging current would be 1000*5=5000mA; therefore, the maximum charging current is 5A.
For a lithium battery, if it is impossible to confirm the supported charging C value, please set the charging current below 1C for the sake of its (lithium battery) safety.
The reference relation between C value and charging time: charging time ≥60 minutes/ charging C value (it therefore needs around 60~70 minutes to complete charging with 1C). Due to differences in battery conversion eciency, the period to complete the charging might be
Warnings and Safety Tips
The following safety tips are essentially important. Please strictly follow the manual’s instructions in operation to guarantee safety. Improper operation or incorrect working parameter settings may cause damages to the charger and battery and/or result to a fire.
Do not use the charger in an unattended manner; in case of any functional abnormity, please stop using it and refer to the manual.
Keep the charger away from dust, humidity, rain and high temperature, as well as avoid direct exposure to the sun and intense vibration.
Make sure input voltage for D2 is AC 100-240V.
Please place the charger on a heat-resisting, non-flammable and insulating surface. Do not use it by placing it on the car’s seats, carpet or other similar places. Keep inflammable and explosive objects away from operation areas of the charger.
Make sure the heat emission hole at the bottom of the charger is uncovered while in use, and ensure the cooling fan smoothly extracts heat.
Please fully understand the charging and discharging characteristics as well as the battery’s specifications. Additionally, set up proper charging parameters in the charger. Incorrect setting of parameters can cause damage to the charger and battery and/or result to disastrous consequences such as fire or explosion.
When charging or discharging is completed, please press the speed shuttle key to terminate current task, and remove the battery when the charger shows the standby screen.
