| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | NIB-402 |
| Minimum Order Quantity: | 1set |
| Price: | Negotible |
| Packaging Details: | Aluminum Box |
| Delivery Time: | 20days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 100sets/month |
| Name: | Tethered Drone | Flight Control: | PX4 |
|---|---|---|---|
| Payload: | 1.5kgs | Takeoff Weight: | 4kgs |
| Size: | 460x460x250mm | Cable Length: | 50m |
| High Light: | 50m PX4 Long Flight Drone,50m Cable long flight drone,50m 1080P HD long flying drone |
||

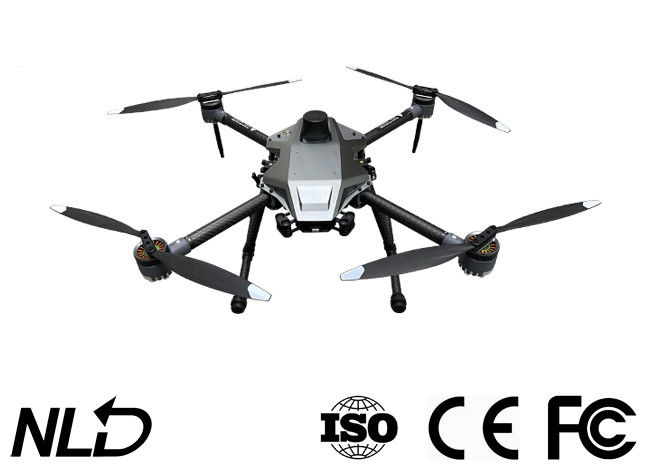

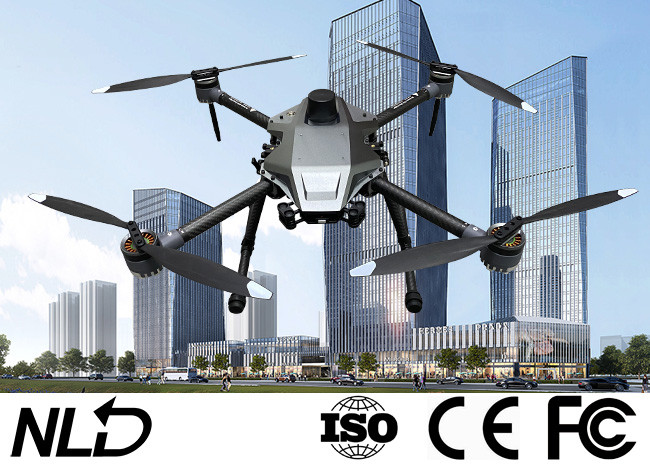

Long Flight Time Tethered Industrial Grade Drone Power Supply System Cable length 50m, Output Power 2500W
Configuration
| Drone Frame | 4-rotor drone frame | 1 |
| Flight control | PX4 | 1 |
| Remote controller |
Highlight tablet with Android system / Industrial-grade radio anti-interference ability Remote data transmission and image transmission three in one 1080P HD image transmission / Support Ethernet/HDMI video input |
1 |
| Li-battery | Super Lip Battery 12000mah | 1 |
| Propeller | 2sets each set 4pcs | 8 |
| Charger | Smart charger | 1 |
| Tools | 1 | |
| Aluminum box | 1 |
Introduction
| NIB-402 quad rotor industry drone is suitable for smart cities, police safety, road traffic, environmental protection and water conservancy, power line inspection, emergency rescue, oil pipeline inspection, surveying and other fields. | |||
| Aircraft size | 460x460x250mm | Long battery life | 25min |
| Weight | 2.4kgs | Payload | 1.5kgs |
| Max takeoff weight | 4kgs | FPV camera | 1080P |
| Work temperature | -10~50℃ | Max wind speed | 15m/s |
Power Supply System
Standard list:
Sky terminal module
Ground retaining box * 1
Sky side module * 1
The system perfectly solves the three limitations of UAV in the multi-rotor industry:
Flight time ----- After connecting to the system, the multi-rotor UAV can complete the fixed-point high-altitude hovering flight tasks that need long-term continuous operation in specific scenes without the limitation of battery capacity.
Safety ----- In special areas such as no-fly zones, crowds, and flammable and explosive zones, tethered drones can be used to maximize mission performance while minimizing risk.
Easy ----- It is easy to operate tethered drones with simple flying skills.
Features:
No need to change the drone, directly install the sky module can be used.
Rainproof cover design, no fear of inclement weather.
Automatic cable pickup.
Pull rod box design, easy to move.
Ground retaining box parameters:
| Cable length | 50m |
| Cable collection type | Automatic + Manual |
| Dimension | 568 x 467 x 360mm |
| Weight | 25kg |
| Output power | 2500w |
| Input interface | Supports 220V mains input |
| Work temperature | -20°C ~ +55°C |
| Hovering time | > 24h |
Sky terminal module parameter:
| Shell material | Aeronautical aluminium alloy |
| Dimension | 130 x 85 x 75mm |
| Weight | 350g |
| Rated power | 1500w |
Remote controller
Using the new long-distance image transmission system, with the latest anti-interference radio frequency algorithm, the image remote control distance is as far as 8km, allowing you to explore a wider space without worrying about the flying distance during flight operations.
Industrial equipment level protection.
