Triple Redundancy X8 V8 UAV Parts , I8 UAV Flight Controller

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: K++ V2
Name: Flight Control For Agriculture IMU: Triple Redundancy
Barometer: Dual Redundancy Power Interface: Backup
High Light:

V8 UAV Parts


X8 UAV Parts


I8 UAV Flight Controller

K++ Flight Control Triple Redundancy IMU Dual Redundant Barometers Dual CPU Configuration, Backup Power Interface

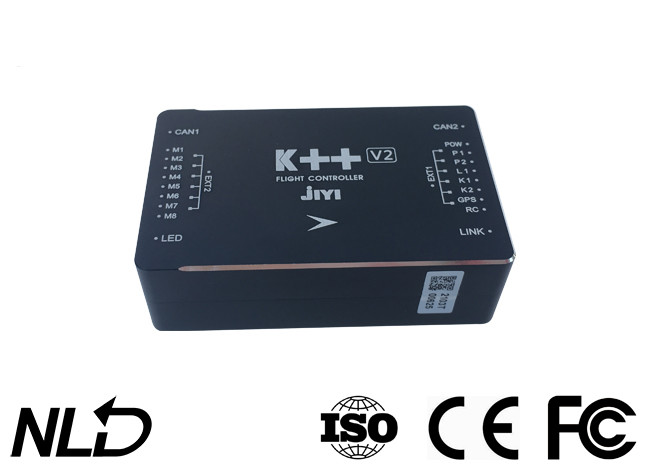

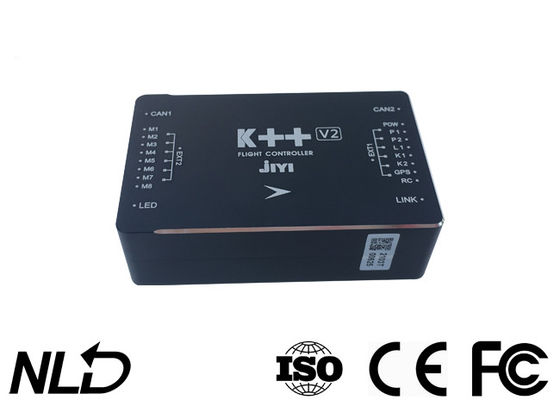

Triple Redundancy X8 V8 UAV Parts , I8 UAV Flight Controller 0


Precise control

The flight accuracy of the route is increased by 25%

The vertical control accuracy is increased by 20%

The trajectory is more precise and the flight is smoother

Strong shock resistance

Double shock absorption structure design

Responding to various complex vibration effects

The aging of the frame can also fly stable

Reduce the investment in after-sales maintenance

Multiple redundant backup

Triple redundancy imu

Dual redundant barometers

Flying is safer

Noise reduction and power saving

The motor noise is three times smaller

Save 5~15% electricity

The flying sound is even smaller

No calibration

Industrial sensor configuration

One time calibration

No imu calibration for life

Attitude control

Double the stability of attitude control

More stable control

Better wind resistance

Dual CPU configuration

Dual CPU configuration

More powerful processing functions

Support up to 1000Hz ESC control

Backup power

Main control supports backup power interface

More reliable power supply



Supported models


IY6, Y6,I6, V6 Six-rotor

V8,I8, X8,IX8 Eight-rotor

Recommended battery type 3S-12S lithium polymer battery
External receiver type SBUS receiver
Support JIYI products K- BOX,IOT ,RTK, binocular obstacle avoidance, ground imitation radar Integrated remote control, FPV camera, flow meter, liquid level meter
Assistant software system configuration requirements Windows 7 /8/10
Hovering accuracy horizontal direction : ±1.5m Vertical direction : ±0.5m
Maximum tilt angle 30°
Maximum yaw speed 150°/s
Maximum vertical speed 6m/s
Maximum wind resistance wind: 4 gust: 5
Power consumption <5W
Working voltage range FC 4.8V-5.3V

Input 1L1V-50V (3S-12SLiPo recommended)

Maximum output current 3A@5V


Input 11.1V-50V (3S-12SLiPo recommended)

Maximum output current 3A@5V

Voltage 3S-12S
Working temperature -10℃-6O℃
Storage temperature -25℃-6O℃
colour black

Total net weight: 321gFC:87g

PMU: 41g

PMU2 (UPS) : 44g

GPS : 45g

LED: 14g


FC : 72.6*48*22.8mm

PMU: 53.4*34.4*14.5mm

PMU2(UPS) : 53.4*34.4*14.5mm

GPS : D62*14.3mm


Weight ofthe whole box 803g
Box size 256*176*55mm

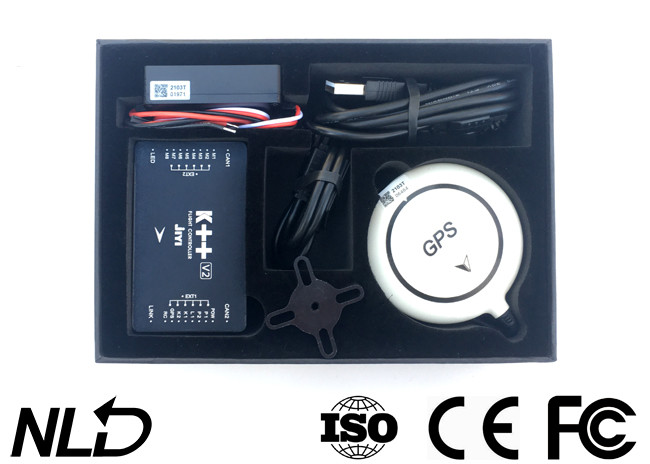

Standard list
Flight control 1 PMU 1
GPS bracket 1 USB cable 1
Dupont cable 2
