X8 UAV Parts

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: X6-2
Minimum Order Quantity: 2set
Price: Negotible
Packaging Details: Carton
Delivery Time: 20days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month
Name: X8 Power System Combo Motor: 100KV 8120 Brushless Motor
Propeller: 2911 ESC: Peak Current 100A Max
Battery: Recommended 6~12S Weight: 1040g
High Light:

ISO9001 X8 UAV Parts

,

ISO9001 100KV UAV Parts

,

FCC 2911 Propeller

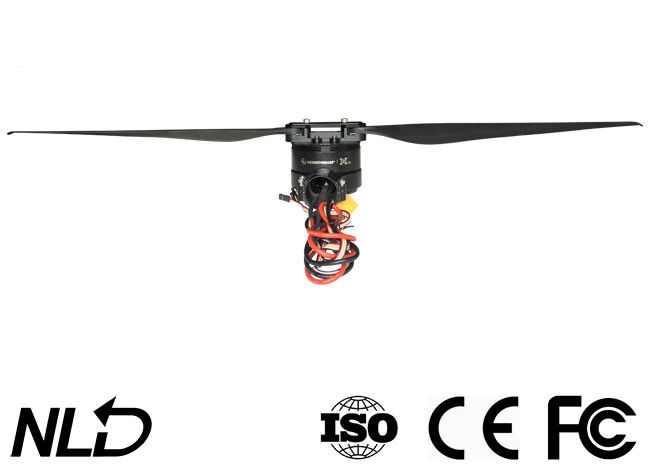

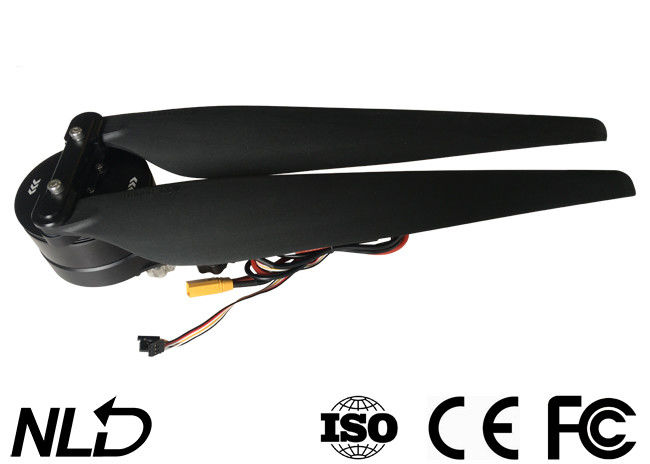

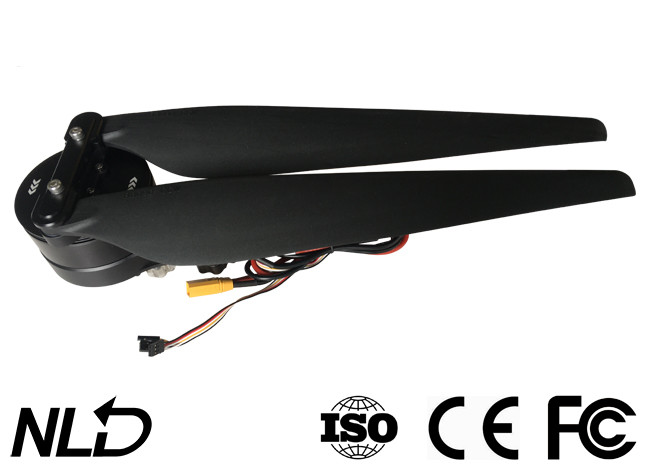

X8 8120 Brushless Motor 100KV with 80A ESC, 2911 Propeller, Carbon Fiber Tube Arm 30/35mm, Weight 1040g

X8 UAV Parts 0

Modular Design Easy to Maintain

The X8 propulsion system features a modular design. When it is damaged, you can change the damaged part like
blades (single or two), the propeller adapter, or the integrated power combo (ESC+motor) easily and quickly.



Regular Firmware Updates
Free of Charge

You can upgrade the ESC with the Hobbywing USB LINK software, a LCD program box (item sold separately) and a laptop. Hobbywing updates its ESC firmware regularly giving you upgraded features more often when available.



Super Impact Resistance

The high-strength CNC-machined aluminum alloy frame combined with the optimized structure design protect the motor components effectively, make the motor really impact-resistant, and greatly reduce the possibility of structure deformation/malfunction caused by drop or hit.



Integrated & Ready-to-use Propulsion System

The X6 propulsion system, which integrates motor, ESC, propeller and motor mount (with the optional 30-to-28 tube adapter, it’s compatible with 28mm&30mm diameter carbon fiber arm tubes) together, is easy to mount and use.
Note: with the foldable 2388 propeller, the propulsion system is capable of carrying the load of 3~5KG (that is 18~30KG for a hexacopter ).



FOC-based PMSM Algorithm Perfect Propulsion System

The FOC (Field Oriented Control)-based PMSM (Permanent Magnet Synchronous Motor) algorithm, an optimized algorithm for improving the collaborative performance of the ESC, motor & propeller, makes the motor-propeller more balanced and creates a propulsion system features high stability, reliability and efficiency.
Note: comparing with the BLDC motors, the PMSM has a lot of advantages like low noise, small size, high power density, low pulsating torque, and high control precision.



Super Waterproof

The X8 propulsion system is waterproof to IPX7 standard. It’s applicable to almost all the harsh working conditions (for agricultural applications) like rainwater, pesticides, salt spray, high temperature, sand and dust. Combined with the outlets at the bottom of the motor mount.
(note: patented design), you can directly rinse the system with fresh water after use.



High-brightness LED Indicator

The X8 propulsion system also contains a high-brightness LED indicator, you can choose the light color or disable it. It can provide the information about the working status of the system and send a warning when any abnormal issue occurs, that significantly improves the safety of the system.



High Thrust & Efficiency Propeller

The 3090 propeller made of special high-strength carbon fiber is solid and light, and guarantees great consistency and excellent dynamic balance. The optimized aerodynamic shape and unique blade tip design combined with the optimized electromagnetic design adopted by the motor and the high efficiency FOC (Field Oriented Control) algorithm implemented by the ESC guarantee the high thrust & efficiency of the propulsion system.



X8 UAV Parts 1

Motor 1 ESC 1
Propeller 1set Motor Mount 1
Screws 1set LED Set 1
Tube Adapter 1 from 30mm to 35mm



Specifications

Max. Thrust 15.3kg/Axis (48V, Sea Level )

Recommended LiPo Battery 12S LiPo

Recommended Takeoff Weight 5-kg/Axis(48V,Sea Level)

Combo Weight 1040g

Waterproof Rating IPX7

Operating Temperature -20℃~65℃



Motor

Stator Size: 81*20mm

KV Rating 100KV

O.D of Carbon Fiber Tube φ30mm/φ35mm (*Tube Adapter will be Needed)

Bearing NSK Ball Bearing (Waterproof)



ESC

Recommended LiPo Battery 6-12S LiPo PWM Input Signal Level 3.3v/5v (Compatible )
Throttle Signal Frequency 50-500Hz Operating Pulse Width 1100~1940μs
Max. Input Voltage 52.2V Max. Input Current (Cont.) 80 A(w/ Good Heat Dissipation)
BEC Built in Max. Peak Current (10s) 100 A (w/ Good Heat Dissipation )
Nozzle Mounting Holes φ28.4mm-2*M3



Propeller

Diameter×Pitch 2911

Weight 180g



Introduction

The X8 brushless power system is a power system capable of carrying a load of 5~7kg (per
rotor) for agricultural drones. It can provide the thrust of up to 15.3kg and match 30/35mm
carbon fiber tube arms. It’s waterproof an dustproof to IPX7 standard and resistant to
rainwater, pesticides, salt spray, sand, dust, mud, sandy soil, high temperature and impact. It
also features the algorithm used for optimizing the FOC ESC & Motor system and making
the system more balanced, multiple protections like power-on self detection, power-on
abnormal voltage, over-current and motor lock-up, and the real-time data output function.



Attention

• Always keep your dr one away from crowd, high-voltage power lines and obstacles, fly your
drone in accordance with relevant safety regulations.
• Never get close to the high-speed r otating propeller & motor, otherwise you may get hurt.
• Check if all the parts ar e in good condition befor e use. If there exists any damaged part,
please contact the factory for replacement.
• Check if any scr ew for connecting the parts is loose and the motors ar e horizontal before
each flight.
• The bore diameter of the arm for the X8 power system is 35mm, if you w ant to use the
30mm tube, then install the tube adapter (included in the pr oduct box) into the pr ojecting
tube on the motor mount first.
• You can change the light color of the LED set. In that case, you need to disassemble the
light cover and slide the DIP switches accordingly.
• You can rinse the motor with fr esh water after each flight to keep it clean.



Installation of the Power System

• The whole power system has been assembled befor e leaving the factory, it’s ready-to-use
and you can directly mount it on your agricultural drone as per the rotation direction
(CW/CCW) marked on the motor.
• The bore diameter (of the arm) is 35mm, if you want to use the 30mm tu be, then tube
adapter will be needed.
• The (Black/Red/White) tri-color cable is for outputting data & updating ESC firmware,
the (White/Black) bi-color cable is the throttle signal cable, and the yellow wire is the RPM
signal output wire.
• The data signal wir e is for outputting thr ottle input, throttle output, motor RPM, input
current, output current, input voltage, capacitor temperature, MOS temperature, and etc.
• The throttle range of the ESC is fixed at 1100~1940μs.
