Single Axis Gimbal 720p Camera Powerline Drone Gps

Basic Information
Place of Origin: China
Brand Name: BOYU
Certification: ISO9001 CE FCC
Model Number: NPA-805H
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Aluminum Box
Delivery Time: 20 days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month.
Type: Powerline Drone Maximum Flight Distance: 2-4km
Flight Mode: Manual Control; ATT; GPS Battery: 16000mAh 6S
Flight Height: 0-1000m (adjustable) Diameter Of Traction Rope: 2-4mm
High Light:

720p camera powerline drone


single axis gimbal powerline drone


gps power line uav

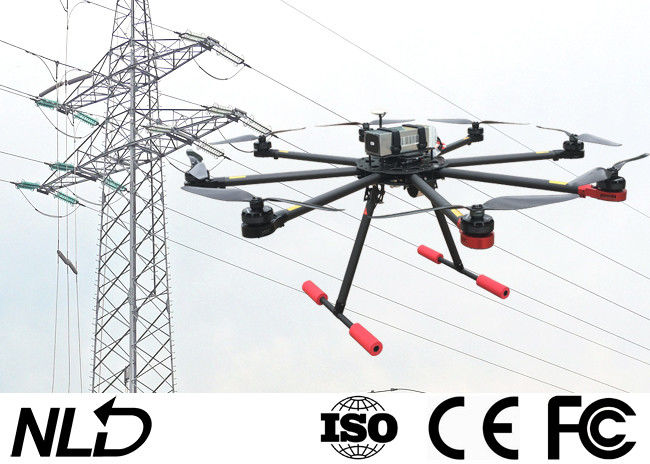

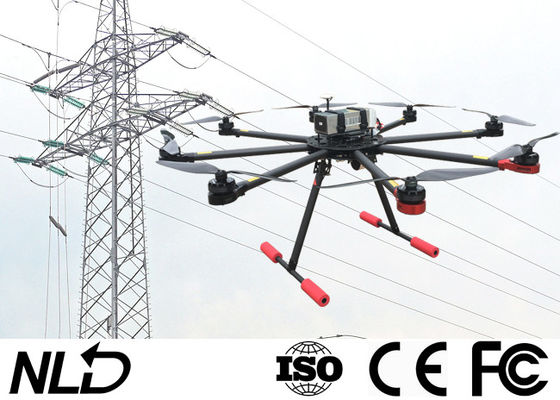

NPA-805H Powerline Drone with Single Axis Gimbal 720P Camera and GPS


Quick Details:

Axle distance/Height 1080mm/450mm Camera Single Axis Gimbal 720P
Fail-Safe with GPS with
Maximum tension 8kg No-load endurance 25-30min
Maximum take-off weight 14kg Load endurance 12-18min
Flying speed 0~15m/min Flight mode Manual control; ATT; GPS
Empty weight 4kg Battery 16000mAh 6S
Maximum flight distance 2-4km Flight height 0-1000m (adjustable)
Working Temperature -5℃---50℃ Diameter of traction rope 2-4mm

Functions: GPS positioning, full-auto return, semi-auto return, runaway protection, headless mode, heading lock, low-voltage protection alarm, battery power backhaul, national exclusive high beam function, OSD flight data real-time backhaul, etc.


Single Axis Gimbal 720p Camera Powerline Drone Gps 0

Powerline drone is suitable for handling all kinds of electric power emergencies.
In the construction process of many power line construction, it is often restricted by terrain and environmental characteristics, such as the process of line must cross some rivers, lakes, industrial and commercial areas, residential areas, roads, railways, or hills, canyons, forestry and seedling areas and so on. These factors cause the construction cost to increase geometrically, the construction progress has to delay or even interrupt, and the construction quality can not be guaranteed. The electric wire uav can effectively protect crops and seedlings from the suffering of logging, and the residential buildings need not be removed and dismantled. The construction personnel no longer have to travel long distances and cross obstacles, which saves a lot of economic compensation, greatly speeds up the construction progress and reduces the surface damage of the wire.


Advantages of using powerline drone:
In the construction process of state Grid overhead engineering, unavoidable situations such as bushes and primitive forests are often encountered, which undoubtedly adds a lot of difficulty to the construction of overhead engineering. However, with the power overhead UAV, it can easily fly over the trees and drop the guidance rope to the ground.
In power lines of rivers and lakes, in the process of traditional wiring can only by the tug will pull rope drag through the water, the first thing to closure of navigation was carried out on the construction of the water, the construction of the closure of navigation will give countries and caused a lot of economic losses, and if use lines of unmanned aerial vehicle (uav), so that guide rope can easily from flying over the water, avoid the closure of navigation.
In the process of line transformation, it is necessary to cross a new line on the basis of a power line. In order to ensure the safety of the construction personnel, the traditional construction can only power off the original line first and then construct it. If the line is set by UAV, the power failure can be avoided, which brings great convenience to our life.
