| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 |
| Model Number: | NPA-805H |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Box |
| Delivery Time: | 15~25 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100sets/month. |
| Axle Distance: | 1080mm | Fail-Safe: | With |
|---|---|---|---|
| Maximum Tension: | 8kg | Maximum Take-off Weight: | 14kg |
| Flying Speed: | 0-15m/min | Empty Weight: | 4kg |
| High Light: | GPS positioning powerline inspection drone,headless mode powerline inspection drone,15m/Min drone power line inspection training |
||

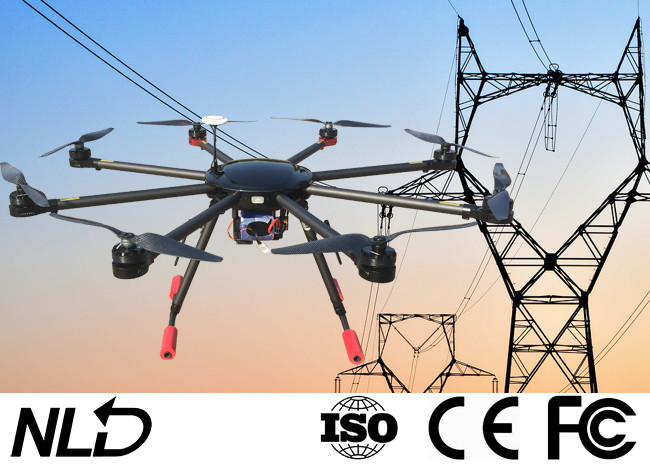

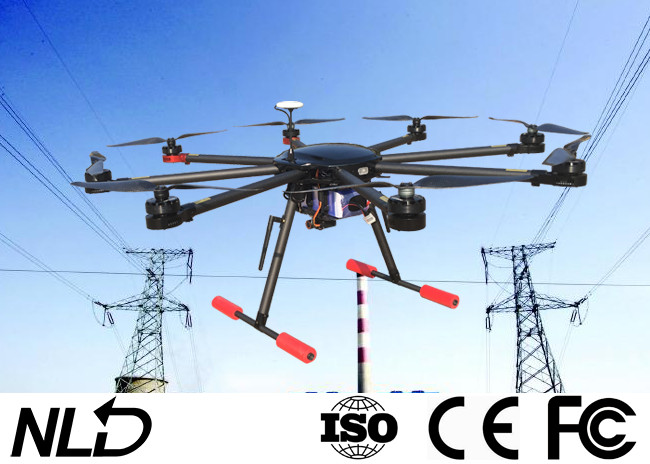

NPA-805H Powerline Drone For Power Line Inspection With GPS
| Model | NPA-805H | NPA-605H |
| Axle distance | 1080mm | 960mm |
| Fail-Safe | with | with |
| Maximum tension | 8kg | 5kg |
| Maximum take-off weight | 14kg | 10.4kg |
| Flying speed | 0-15m/min | 0.15m/min |
| Empty weight | 4kg | 3.4kg |
| Maximum flight distance | 2-4km | 2-4km |
| Working Temperature | -5℃-50℃ | -5℃-50℃ |
| Height | 450mm | 400mm |
| GPS | with | with |
| No-load endurance | 25-30min | 25-30min |
| Load endurance | 12-18min | 12-15min |
| Flight mode | Manual control; ATT; GPS | Manual control; ATT; GPS |
| Battery | 16000mAh 6S | 16000mAh 6S |
| Flight height | 0-1000m (adjustable) | 0-1000m (adjustable) |
| Diameter of traction rope | 2-4mm | 2-4mm |
| Functions: GPS positioning, full-auto return, semi-auto return, runaway protection, headless mode, heading lock, low-voltage protection alarm, battery power backhaul, national exclusive high beam function, OSD flight data real-time backhaul, etc. | ||
Characteristics
1. Low requirements on topography,no limit on altitude,no problem in high altitude area;
2. High efficiency and high attendance rate, short adjustment time when taking off
3. The aircraft is light and flexible with little vibration;
4. Environmentally friendly and meets the requirements of national energy conservation and environmental protection;
5. Safer and can resist six levels of wind;
6. Easy to maintain, and low cost on use and maintenance;
7. More efficient, drag 3.5mm, 12 kgs of rope to 1000 meters.(Four-axis drag 2.0mm);
8. Payload of 2.0 dupont rope that can fly for 25 to 30 minutes;
9. Free operation training, welcome to our company to participate in and learn simple UAV maintenance technical service.
Application
1.The trees in the virgin forests often encounter bushes, virgin forests, etc. during the construction of the national grid. This will definitely affect the progress of the construction. When passing through the virgin forest, the trees cannot be felled. This undoubtedly adds a lot of difficulty to the construction of the project, and with the lined drone, it is easy to fly over the trees and cast a guide rope to the ground.
2.In the traditional wire-laying operation on the Yangtze River, the tow rope can only be towed by the tugboat over the water surface. The construction water surface must be sealed first. The closure of the navigation will also cause many economic losses to the country and the construction party. The personnel stood on the ship and remotely dragged the helicopter of the guide rope so that the guide rope could fly over the Yangtze River and avoid sealing.
3.In the construction will also encounter swamps, lakes, farmland, highways, mountains, etc., when people are unable to achieve the construction of the line, the line of drones also show their talents, complete the task.
4.The situation of charging across the power usually exists in the process of circuit reconstruction. It is necessary to straddle a new line on the basis of a power-on line. In order to ensure the safety of construction workers, traditional construction can only be used first. After the line is powered off and then constructed, the overhead drone can be used to avoid power outages.
