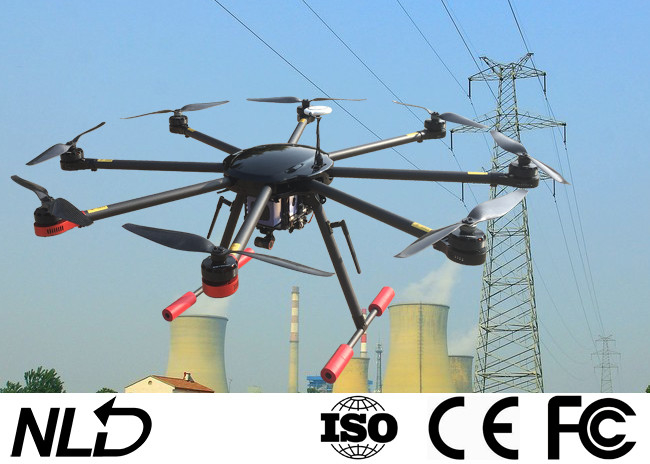

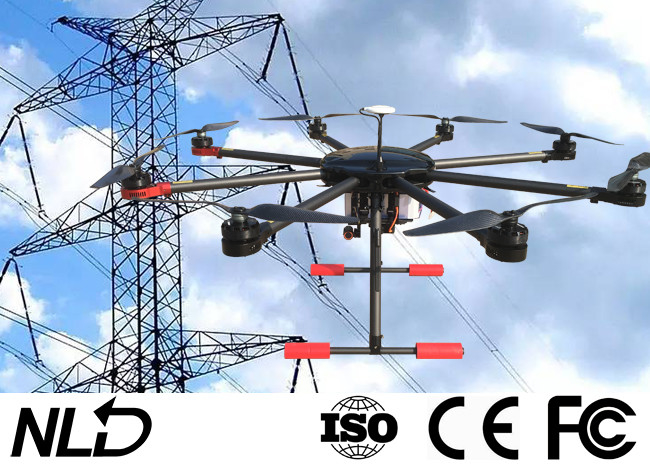

NPA-805H Powerline Drone Inspection With Camera Maximum Take Off Weight 14kg

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001
Model Number: NPA-805H
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Box
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Maximum Take-off Weight: 14kg Maximum Tension: 8kg
Empty Weight: 4kg Flying Speed: 0-15m/min
No-load Endurance: 25-30min Height: 450mm
High Light:

height 450mm powerline drone inspection


adjustable drone powerline inspection training

NPA-805H Powerline Drone With Camera Maximum Take-off Weight 14kg




Axle distance 1080mm
Fail-Safe with
Maximum tension 8kg
Maximum take-off weight 14kg
Flying speed 0-15m/min
Empty weight 4kg
Maximum flight distance 2-4km
Working Temperature -5℃-50℃
Height 450mm
GPS with
No-load endurance 25-30min
Load endurance 12-18min
Flight mode Manual control; ATT; GPS
Battery 16000mAh 6S
Flight height 0-1000m (adjustable)
Diameter of traction rope 2-4mm


Use Background
In the construction process of many power lines, it is often restricted by terrain and environmental characteristics. For example, the wiring process must cross some rivers, lakes, industrial and commercial areas, residential areas, roads, railways, or hills, canyons, forestry. Seedlings and so on. These factors have led to a geometric increase in construction costs, construction schedules have to be delayed or even interrupted, and construction quality cannot be guaranteed. Power lined drones can effectively protect crops and seedlings from deforestation. Residential buildings do not need to be demolished and demolished. Construction workers no longer travel long distances and overcome obstacles, saving a large number of economic compensation due to them, and greatly speeding up construction progress. To reduce wire surface damage. The 8-wing power lined drone technology has reached a stage of full maturity. It has achieved thousands of aerial wiring operations and has rich experience in aerial wiring.


NPA-805H Powerline Drone Inspection With Camera Maximum Take Off Weight 14kg 0



Drone with DJI flight control system

1 set


Dual channel charger

1 set


Professional remote control NIRC1

1 set


16000mah high quality battery

2 pcs


6.5” screen mobile phone



Battery voltage capacity checker

1 set


Tool kits

1 set


Aviation aluminum box

1 pcs


Spare screws

1 pack


Backup battery strap

4 pcs


Spare propeller

8 pcs


1. The above configuration remote control, battery, charger are brand accessories, better quality and more powerful. Equipped with brand battery, Dji Flight control system. If the amount of engineering is large and the drone needs to work for a long time, you can contact the procurement of batteries at any time in the later stage.

2. The drone function of our company covers all the functions in the market. It can be used in special situations such as crossing the railway line at night. Features include but are not limited to: GPS positioning, semi-automatic return, fully automatic return, headless mode, locked heading, low voltage protection alarm, out of control return, on-board electrical display, camera OSD return.
