| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 |
| Model Number: | NPA610 |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Box |
| Delivery Time: | 15~25 days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 100sets/month. |
| Motor Wheelbase: | 1200mm | Working Time: | 30~50min |
|---|---|---|---|
| Max Takeoff Weight: | 25kg | Payload: | 0~5kg |
| HD Camera: | 1080P | Image Transmission Distance: | 10~15km |
| High Light: | Power Inspection agricultural drones industry,ISO9001 agricultural drones industry,6 Wind resistance agricultural drones industry |
||

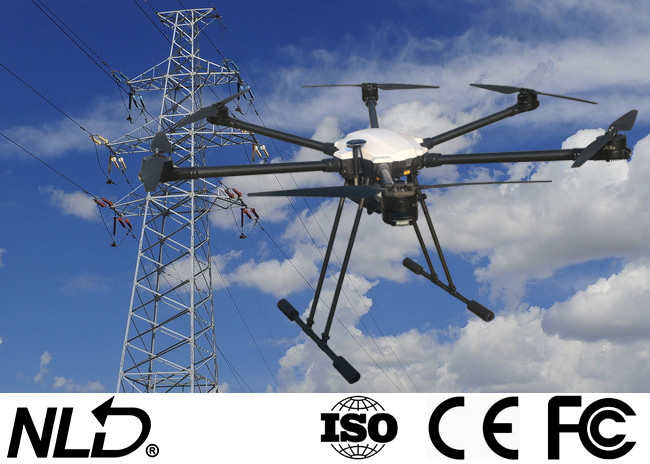

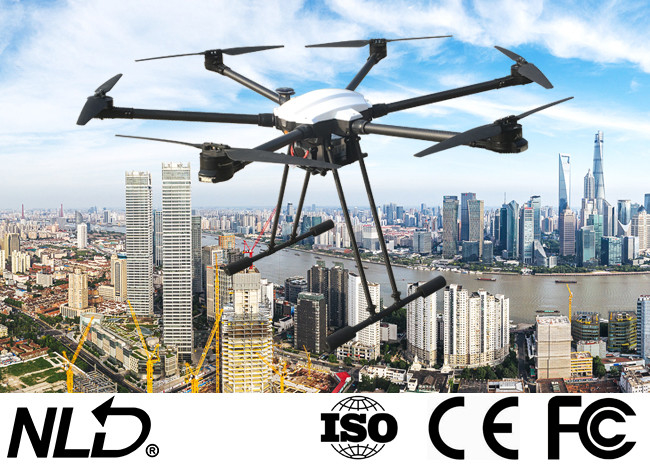

Industrial Grade Drone With 1080P HD Camera For Power Inspection
Introduction
| NPA-610 for power line, Flight control 3 redundant accelerometers and gyroscopes, it can work for full construction section, long time flying suitable for smart cities, police safety, road traffic, environmental protection and water conservancy, power line inspection, emergency rescue, oil pipeline inspection, surveying and other fields. | |||
| Motor wheelbase | 1200mm | Working time | 30~50min |
| Max takeoff weight | 25kg | Payload | 0~5kg |
| HD Camera | 1080P | Image transmission distance | 10~15km |
| Horizontal speed | 0~15m/s | Wind resistance | 6 |
Suspension components
NGC-C4K: 4K HD optical zoom gimbal
Lightweight Gimbal weight 286g
High resolution, zoom
12 million pixels, up to 4K recording
14 times zoom (3.5 times optical * 4 times digital)
High stability Jitter Angle: ±0.01°
One-key to center
Double-click the target, center zoom function
GPS information record
Superimpose GPS information display and save to subtitle file
Available SDK
Sky data interface and ground station SDK is available
Object Tracking
| General Parameter | |
| Product | NGC-C4K: 4K HD optical zoom gimbal |
| Working voltage | 12V-25V |
| Power | 6W |
| Weight | 275g |
| Size | 96*79*120mm |
| Interface Type | Network interface |
| Control display mode | Windows system PC; Android phone, tablet |
| Environment parameter | |
| Working environment temp. | -10℃ ~ 60℃ |
| Storage environment temp. | -20℃ ~70℃ |
| Gimbal parameter | |
| Jitter Angle | ±0.01° |
| Installation method | Detachable |
| Controllable rotation range | Pitch/Tilt: +70°- -110°; Yaw/Pan: ±300° |
| Structure design scope Roll | Pitch/Tilt: +75°- -100°; Yaw/Pan: ±310°; roll: +90°- -50° |
| Maximum control speed | Pitch/Tilt: 120°/s; Yaw/Pan: 180°/s |
| Camera parameter | |
| Sensor | CMOS: 1/2.3″; 12.71 million total pixels; maximum resolution 4152*3062 |
| Lens |
3.5x optical zoom lens F 3.85~13.4mm Minimum shooting distance: 1mm~3mm (near focus ~ far focus) Field of view (horizontal): 82~25° |
| Image storage format | JPEG |
| Video storage format | MP4 |
| Working method | Video, photo |
| Fog penetration | Electronic fog penetration |
| Exposure mode | Automatic exposure and manual exposure |
| Resolution |
25fps(3840*2160) 25fps(1920*1080) Maximum capture resolution: (4024*3036) |
| Minimum illumination | Color: 0.5Lux/F2.4 |
| 2D noise reduction | √ |
| 3D noise reduction | √ |
| Shutter speed | 1/3- 1/30000s |
| Exposure | Automatic support |
| OSD | √ |
| Pointing zoom | √ |
| Pointing zoom range | 1~3.5 times optical |
| One-click zoom to single image | √ |
| Support memory card type | Micro SD card 128G (maximum) |
