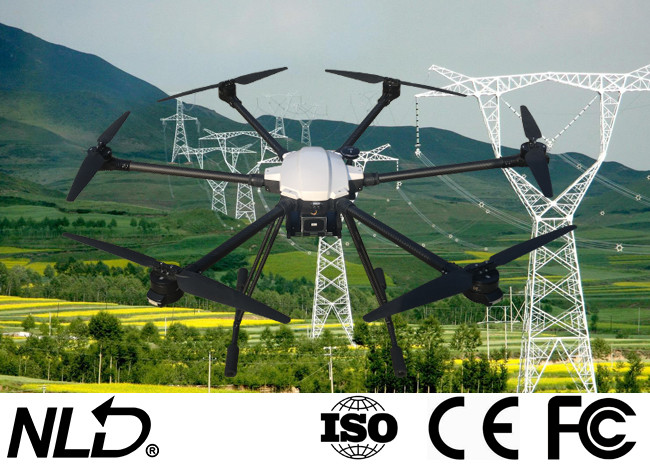

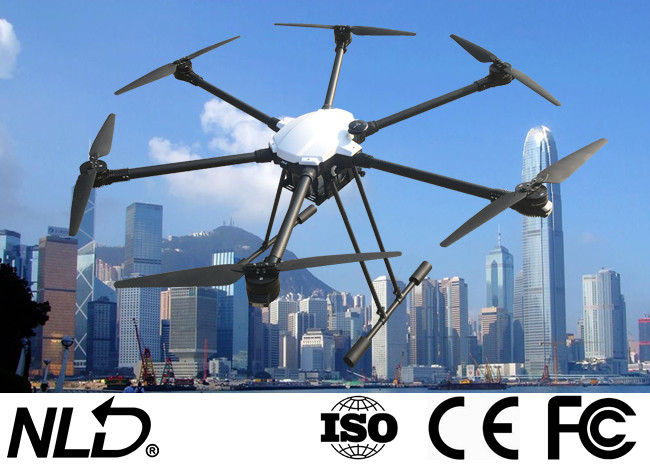

0-5kg Payload Industrial Grade Drone For Aerial Emergency Surveillance Patrol

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001
Model Number: NPA610
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Box
Delivery Time: 15~25 days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month.
Working Time: 30~50min Payload: 0~5kg
Motor Wheelbase: 1200mm Horizontal Speed: 0~15m/s
Image Transmission Distance: 10~15km Type: Industrial Drone
High Light:

ISO9001 Precision Industrial Grade Drone


Aerial Emergency Surveillance Patrol Industrial Grade Drone


15m/s industry spec drones

Industrial Grade Drone 0-5kg Payload For Aerial Emergency Surveillance Patrol


NPA-610 for power line, Flight control 3 redundant accelerometers and gyroscopes, it can work for full construction section, long time flying suitable for smart cities, police safety, road traffic, environmental protection and water conservancy, power line inspection, emergency rescue, oil pipeline inspection, surveying and other fields.


0-5kg Payload Industrial Grade Drone For Aerial Emergency Surveillance Patrol 0


Remote controller

1080P digital HD image transmission

  • NIRC10-3HDS integrated digital image transmission system, supports HDMI and network port two video source input, supports more video devices such as cameras, PTZ, pods, built-in HD FPV APP, supports video floating window function, can be displayed on any ground station APP Image, support video window scaling of any size, support the original QGroundControl video display function, open the video SDK for video integrated development.

Ultra long transmission distance

  • Using the new long-distance image transmission system, with the latest anti-interference radio frequency algorithm, the image remote control distance is as far as 10km, allowing you to explore a wider space without worrying about the flying distance during flight operations.

Industrial equipment level protection

  • Unmanned aerial vehicles work in harsh outdoor conditions. The NIRC10-3HDS is protected from dust and splashes on the fuselage, control switches, and peripheral interfaces to ensure stable and smooth operation of the equipment in harsh environments.

Highlight HD display

  • The 5.5-inch high-brightness high-definition display can clearly view real-time display information under strong light conditions.

Removable high-performance lithium battery

  • The high-performance lithium battery, low internal resistance, 6 hours long battery life, and stable battery curve provide stable power for the iUAV OS system, and can quickly replace the battery to ensure continuous operation


Suspension components


10x optical zoom +Thermal imaging dual-optical three-axis gimbal

N2TC-T320 is a zoom dual-light integrated system that integrates a 10x optical zoom camera, thermal imager, and high-precision professional three-axis stabilizing pod.The pod adopts a high-precision encoder FOC control scheme, which has high stability, small size and weight. Light and powerful features; the visible light camera uses a low-illuminance sensor with 4 million effective pixels; the thermal imaging uses a 320x240 resolution detector with a baffle design. The system supports HDMI picture-in-picture output, local TF storage, dual-channel simultaneous recording, pseudo-color switching, temperature measurement, and multiple picture-in-picture modes.


Functions & Features

  1. 10 times visible light + thermal imager Ø
  2. Three-axis stabilization pod
  3. Multiple thermal imaging pseudo-color modes
  4. UART or SBUS command control
  5. Multiple picture-in-picture mode, single HDMI output
  6. OSD menu adjustment parameters
  7. Real-time switching in zero seconds
  8. Single TF card,Two-channel simultaneous recording
