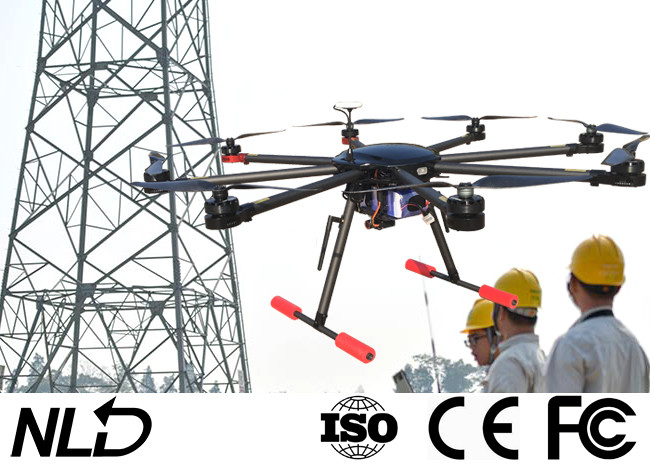

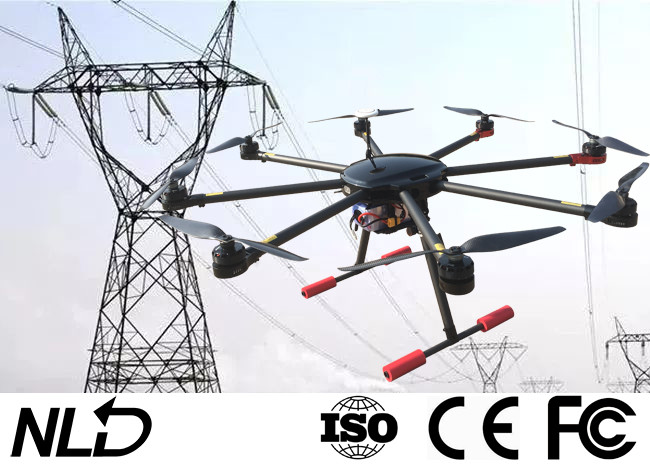

Manual control Powerline Drone With Single Axis Gimbal 720P Camera And Fail - Safe

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NPA-805H
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Box
Delivery Time: 15~25 days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month.
Type: Powerline Drone Axle Distance/Height: 1080mm/450mm
No-load Endurance: 25-30min Maximum Take-off Weight: 14kg
Maximum Flight Distance: 2-4km Battery: 16000mAh 6S
High Light:

Manual control Powerline Drone


GPS Powerline Drone 720p camera

Powerline Drone With Single Axis Gimbal 720P Camera And Fail-Safe


Axle distance/Height 1080mm/450mm Camera Single Axis Gimbal 720P
Fail-Safe with GPS with
Maximum tension 8kg No-load endurance 25-30min
Maximum take-off weight 14kg Load endurance 12-18min
Flying speed 0~15m/min Flight mode Manual control; ATT; GPS
Empty weight 4kg Battery 16000mAh 6S
Maximum flight distance 2-4km Flight height 0-1000m (adjustable)
Working Temperature -5℃---50℃ Diameter of traction rope 2-4mm


Functions: GPS positioning, heading lock, low-voltage protection alarm, semi-auto return, runaway protection, full-auto return, headless mode, battery power backhaul, OSD flight data real-time backhaul, national exclusive high beam function, etc.


Use a background

In the construction process of many power lines, terrain and environmental characteristics are often limited. For example, the wiring process must traverse some rivers, lakes, industrial and commercial areas, residential areas, roads, railways, or hills, canyons, forests. Seedling and so on. These factors lead to a geometric increase in construction costs, construction progress has to be delayed or even interrupted, construction quality can not be guaranteed. Power line drones can effectively protect crops and seedlings from logging. Residential buildings do not need to be demolished and demolished. Construction workers no longer travel long distances and overcome obstacles, thus saving substantial financial compensation and greatly speeding up construction. Reduce wire surface damage. 8 wing power line uav technology has reached its full maturity stage. It has completed thousands of overhead wiring operations and has rich experience in overhead wiring.


  • High efficiency and high attendance rate, short adjustment time when taking off
  • Environmentally friendly and meets the requirements of national energy conservation and environmental protection;
  • Low requirements on topography,no limit on altitude,no problem in high altitude area;
  • Easy to maintain, and low cost on use and maintenance;
  • Payload of 2.0 dupont rope that can fly for 25 to 30 minutes;
  • More efficient, drag 3.5mm, 12 kgs of rope to 1000 meters.(Four-axis drag 2.0mm);
  • The aircraft is light and flexible with little vibration;
  • Safer and can resist six levels of wind;
  • Free operation training, welcome to our company to participate in and learn simple UAV maintenance technical service.


Manual control Powerline Drone With Single Axis Gimbal 720P Camera And Fail - Safe 0


FPV Camera NC02 Dobule axis

General Parameter
Product Digital camera
Working voltage 5V
Camera lens 1/2.7 sersor EFL=2.4mm
Pixel 200w
Weight 51g
Size 57.5*49*47.1mm
Interface Type Network interface
Control display mode Windows system PC; Android phone, tablet
Environment parameter
Working environment temp. -10℃ ~ 50℃
Gimbal parameter
Gimbal Double axis
Controllable rotation range Pitch: 100° Roll: 40°
Camera parameter
Resolution Video 1080P 25fps Photo 640x360
Working method Video, photo
Support memory card type Micro SD card 128G (maximum)
