| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | NSA-410 |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Aluminum Box |
| Delivery Time: | 15~25 days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 100sets/month. |
| Type: | NSA-410 Fertilizer Spraying Drone | Hovering Accuracy Horizontal: | +/- 1.5m |
|---|---|---|---|
| Hovering Accuracy Vertical: | +/- 0.5m | Electronic Speed Control: | 80A |
| Paddle: | 3090 | Expand Size: | 1780*1780*567mm |
| High Light: | Agricultural Fertilizer Drone,10L Fertilizer Spraying Drone,Fertilizer Spraying Drone with Feed Tank |
||

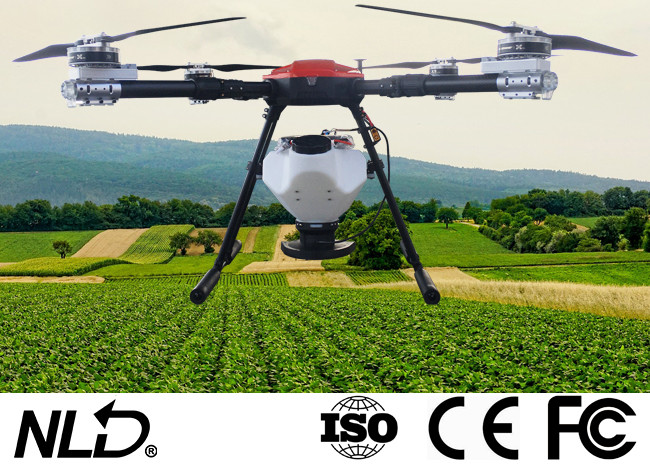

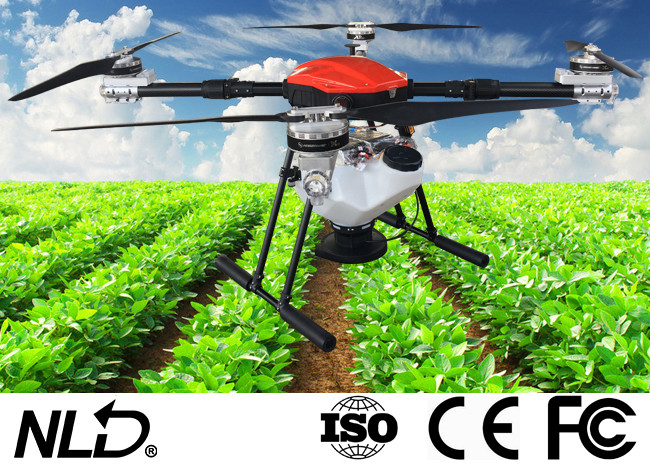

Fertilizer Spraying Drone NSA-410 Feed Tank 10L Agricultural Fertilizer Drone
| Description | NSA410 | NSA422 |
| Aircraft Frame | 4 rotors | 4 rotors |
| Flight Controller (RC) | √ | √ |
| GPS Dot Device | √ | √ |
| Motor | 4*100KV | 4*110KV |
| Electronic Speed Control (ESC) | 4*80A | 4*120A |
| Foldable propeller | 4*3090 | 4*3411 |
| Pesticide Tank | 10L | 22L |
| Spreading System | Motor + door opening + lack of material detection | |
| Remote Controller | Remote control + digital transmission 5.5” screen + Android + ground workstation | |
| Charger (NFC15) | 650w 15A dual channel | |
| Battery | 2*22000mAh | 2*22000mAh |
| Aluminum Case | √ | √ |
| Model | NSA410 | NSA422 |
| Rotor | 4 | 4 |
Hovering accuracy | +/- 1.5m | +/- 1.5m |
Hovering accuracy | +/- 0.5m | +/- 0.5m |
| Wind resistance | 4～5 | 4～5 |
| Motor | 4*100KV | 4*110KV |
| Electronic Speed Control | 80A | 120A |
| Motor applicable temperature | -20～50℃ | -20～50℃ |
| Paddle | 3090 | 3411 |
| Feed Tank | 10L | 22L |
| Take-off Capacity | 28kg | 38kg |
| Flying Time (with payload) | 10~15min | 10~15min |
| Flying distance | 5000m | 5000m |
| Working distance | 2000m | 2000m |
| Flying Speed | 0~10m/s | 0~10m/s |
| Spreading Width | 3~6m | 3~6m |
| Spread Distance | 2~5m | 2~5m |
| Solid particles | 0.5~6mm | 0.5~6mm |
| Expand Size | 1780*1780*567mm | 1848*1848*628mm |
| Wheelbase | 1362mm | 1416mm |
| Folded Size | 700*658*567mm | 648*671*628mm |
| Battery / Quantity | 6S/22000mAh / 2pcs | 6S/22000mAh / 2pcs |
| FPV Camera | Optional | Optional |
| Obstacle avoidance radar | Optional | Optional |
| Terrain following radar | Optional | Optional |
| RTK centimeter positioning | Optional | Optional |
Spreading Tank
The spreader can adjust the size of the outlet valve and the speed of the spreading turntable, so as to accurately control the discharge volume and the discharge speed. At the same time, the spreader is equipped with a stirring device to prevent the discharge from being blocked, improving the accuracy and reliability of the spreading operation.
Other accessories
Ground Defense Radar
Ground defense radar adopts millimeter wave radar technology. Through the continuous scanning of radar, the UAV can sense the terrain changes in the flight direction, and timely adjust the flight height according to the terrain and crop height, so as to realize ground defense flight and ensure uniform spraying in flight. Ground defense radar has stable detection performance and good environmental practicability, strong anti-jamming ability, not affected by light, long detection distance, and has the characteristics of all-weather and all-day work.
