| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | NSA-410 |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Aluminum Box |
| Delivery Time: | 15~25 days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 100sets/month. |
| Type: | Remote Control Agriculture Drone | Material: | Carbon Fiber + Aviation Aluminum |
|---|---|---|---|
| Motor Applicable Temperature: | -20～50℃ | Expand Size: | 1780*1780*567mm |
| Solid Particles: | 0.5~6mm | Flying Speed: | 0~10m/s |
| High Light: | Agriculture Spraying Drone Remote Control,4*100KV Motor Fertilizer Spraying Drone,6mm Fertilizer Spraying Drone |
||

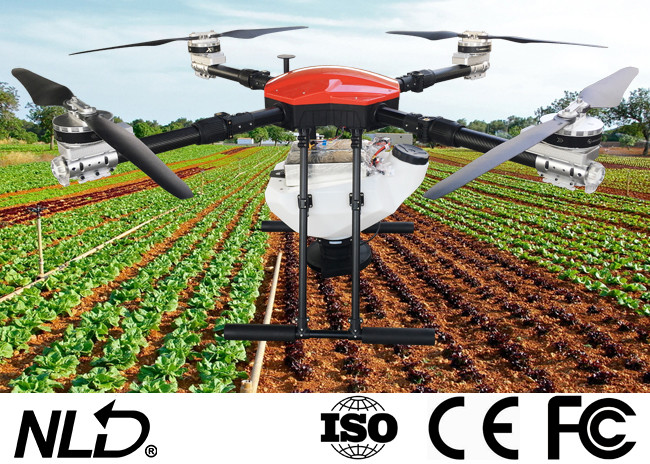

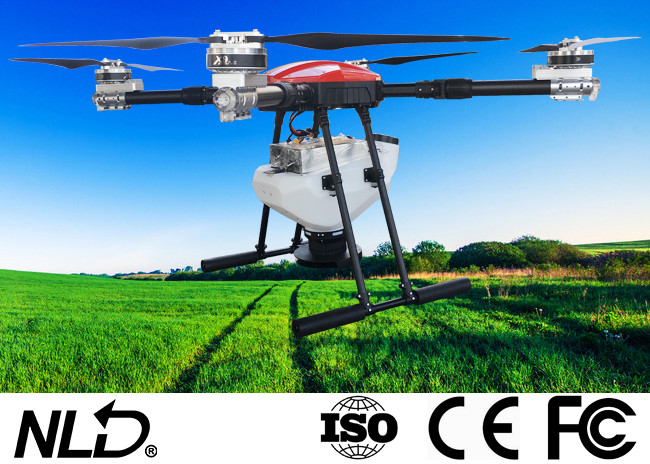

Fertilizer Spraying Drone Remote Control Agriculture Drone With 4*100KV Motor
| Model | NSA410 |
| Rotor | 4 |
|
Hovering accuracy horizontal |
+/- 1.5m |
|
Hovering accuracy vertical |
+/- 0.5m |
| Wind resistance | 4～5 |
| Motor | 4*100KV |
| Electronic Speed Control | 80A |
| Motor applicable temperature | -20～50℃ |
| Paddle | 3090 |
| Feed Tank | 10L |
| Take-off Capacity | 28kg |
| Flying Time (with payload) | 10~15min |
| Flying distance | 5000m |
| Working distance | 2000m |
| Flying Speed | 0~10m/s |
| Spreading Width | 3~6m |
| Spread Distance | 2~5m |
| Solid particles | 0.5~6mm |
| Expand Size | 1780*1780*567mm |
| Wheelbase | 1362mm |
| Folded Size | 700*658*567mm |
| Battery / Quantity | 6S/22000mAh / 2pcs |
| FPV Camera | Optional |
| Obstacle avoidance radar | Optional |
| Terrain following radar | Optional |
| RTK centimeter positioning | Optional |
Advantage
1. High efficiency of UAV operation: on average, UAV operation takes only 2 ~ 4 minutes per mu. Compared with traditional manual fertilization, the efficiency is improved by nearly 30 ~ 60 times, which not only has high efficiency, but also saves labor and reduces cost.
2. Safer UAV operation: UAV flying prevention operation realizes the separation of human, fertilizer and medicine. Through flying prevention and plant protection, the flying hand can operate remotely, avoiding the risk of close contact with pesticides and fertilizers.
3. Weight loss and efficiency enhancement are more environmentally friendly: UAV operation is in line with the promotion of national water and fertilizer integration, and adopts foliar topdressing, spraying evenly, avoiding direct contact with soil, saving water and environmental protection.
4. Achieve accurate operation, avoid repeated spraying, missing spraying and ineffective spraying, and ensure the accurate use of fertilizer.
Other accessories
Obstacle Avoidance Radar
Obstacle avoidance radar is mainly used to measure the relative distance between the UAV and the obstacle in front of the flight, so as to effectively avoid the obstacle. Obstacle avoidance radar adopts 24GHZ radar technology, which can work all-weather under the environment of strong light, high temperature, fog, dust, wind and night. Its sensitivity is high, the detection distance is long, the signal transmission is fast and stable, and it can detect a diagonal pull of more than 1cm Electric wires, small trees with 10cm trunks, 1.7m high people and 15cm electric poles, have a good obstacle avoidance function for high-speed running drones, and are very suitable for plant protection drones to operate in complex outdoor environments.
Characteristic:
1. High sensitivity
2. Far detection distance
3. Signal transmission is fast and stable
4. All day work
5. Strong environmental adaptability
