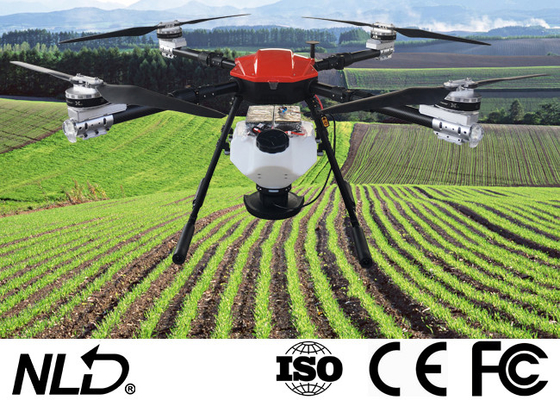

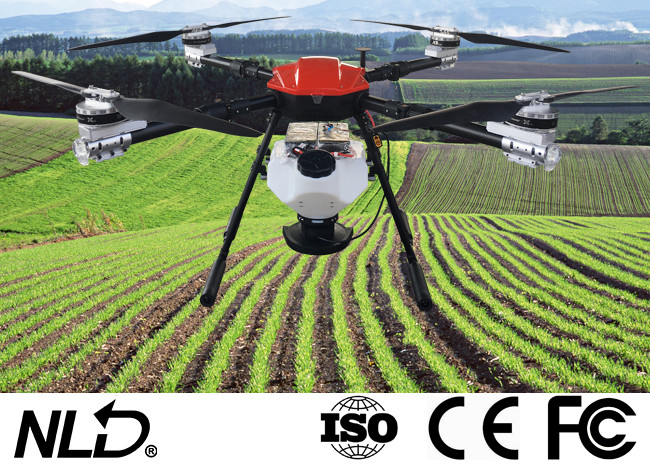

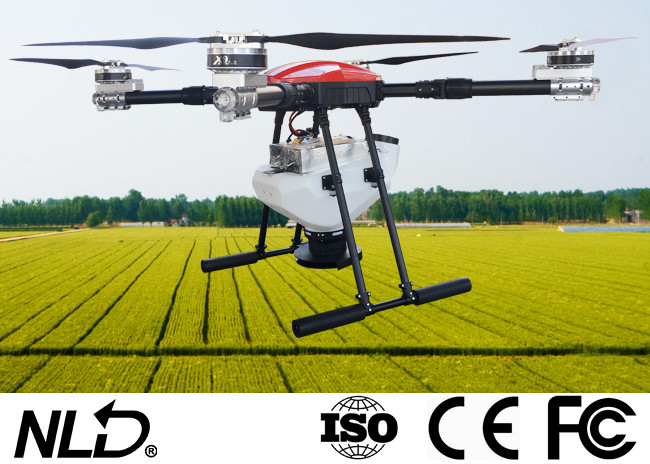

22L Agriculture Fertilizer Spraying Drone With GPS 22000mAh Battery

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NSA-422
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Aluminum Box
Delivery Time: 15~25 days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month.
Type: Agriculture Fertilizer Drone With GPS Material: Carbon Fiber + Aviation Aluminum
Take-off Capacity: 38kg Wind Resistance: 4~5
Electronic Speed Control: 120A Feed Tank: 22L
High Light:

22L Agriculture Fertilizer Spraying Drone

,

Fertilizer Spraying Drone With GPS

,

22000mAh Battery Fertilizer Spraying Drone

Fertilizer Spraying Drone Agriculture Fertilizer Drone With GPS And 6S/22000mAh Battery



Model NSA422
Rotor 4

Hovering accuracy

horizontal

+/- 1.5m

Hovering accuracy

vertical

+/- 0.5m
Wind resistance 4~5
Motor 4*110KV
Electronic Speed Control 120A
Motor applicable temperature -20~50℃
Paddle 3411
Feed Tank 22L
Take-off Capacity 38kg
Flying Time (with payload) 10~15min
Flying distance 5000m
Working distance 2000m
Flying Speed 0~10m/s
Spreading Width 3~6m
Spread Distance 2~5m
Solid particles 0.5~6mm
Expand Size 1848*1848*628mm
Wheelbase 1416mm
Folded Size 648*671*628mm
Battery / Quantity 6S/22000mAh / 2pcs
FPV Camera Optional
Obstacle avoidance radar Optional
Terrain following radar Optional
RTK centimeter positioning Optional



Description NSA422
Flight Controller (RC)
GPS Dot Device
Motor 4*110KV
Electronic Speed Control (ESC) 4*120A
Foldable propeller 4*3411
Spreading System Motor + door opening + lack of material detection
Remote Controller Remote control + digital transmission 5.5” screen + Android + ground workstation
Charger (NFC15) 650w 15A dual channel
Battery 2*22000mAh
Aluminum Case



22L Agriculture Fertilizer Spraying Drone With GPS 22000mAh Battery 0



Remote controller

1080P digital HD image transmission

  • NIRC10-3HDS integrated digital image transmission system, supports HDMI and network port two video source input, supports more video devices such as cameras, PTZ, pods, built-in HD FPV APP, supports video floating window function, can be displayed on any ground station APP Image, support video window scaling of any size, support the original QGroundControl video display function, open the video SDK for video integrated development.

Ultra long transmission distance

  • Using the new long-distance image transmission system, with the latest anti-interference radio frequency algorithm, the image remote control distance is as far as 10~20km, allowing you to explore a wider space without worrying about the flying distance during flight operations.

Removable high-performance lithium battery

  • The high-performance lithium battery, low internal resistance, 6 hours long battery life, and stable battery curve provide stable power for the iUAV OS system, and can quickly replace the battery to ensure continuous operation

Highlight HD display

  • The 5.5-inch high-brightness high-definition display can clearly view real-time display information under strong light conditions.

Industrial equipment level protection

  • Unmanned aerial vehicles work in harsh outdoor conditions. The NIRC10-3HDS is protected from dust and splashes on the fuselage, control switches, and peripheral interfaces to ensure stable and smooth operation of the equipment in harsh environments.
