| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | NSA-610 |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Aluminum Box |
| Delivery Time: | 15~25 days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 100sets/month. |
| Type: | Agricultural Fertilizer Spraying Drone | Hovering Accuracy Vertical: | +/- 0.5m |
|---|---|---|---|
| Flying Time (with Payload): | 10~15min | Solid Particles: | 0.5~6mm |
| Remote Controller: | Remote Control + Digital Transmission 5.5” Screen + Android + Ground Workstation | Battery / Quantity: | 6S/22000mAh / 2pcs |
| High Light: | Flying Distance 5000m Fertilizer Spraying Drone,6 Rotors Agricultural Fertilizer Spraying Drone,Fertilizer Spraying Drone Remote control |
||

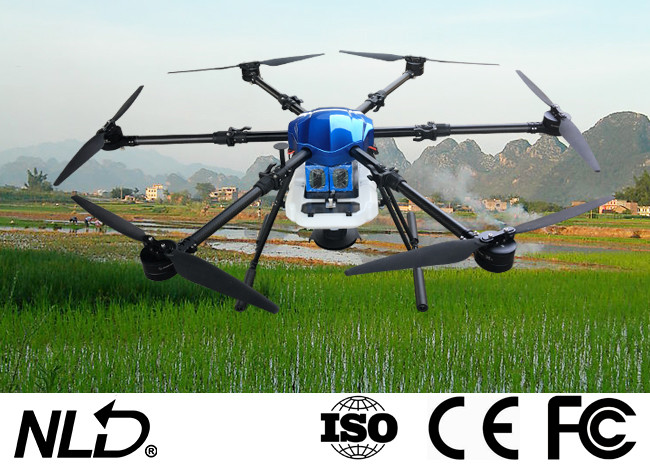

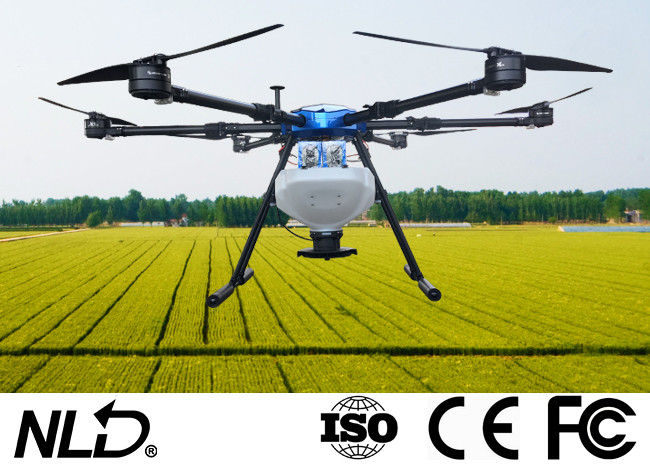

NSA-610 6 Rotors Agricultural Fertilizer Spraying Drone Flying Distance 5000m
| Description | NSA610 | NSA622 |
| Aircraft Frame | 6 rotors | 6 rotors |
| Flight Controller (RC) | √ | √ |
| GPS Dot Device | √ | √ |
| Motor | 6*180KV | 6*100KV |
| Electronic Speed Control (ESC) | 6*80A | 6*80A |
| Foldable propeller | 6*2388 | 6*3090 |
| Pesticide Tank | 10L | 22L |
| Spreading System | Motor + door opening + lack of material detection | |
| Remote Controller | Remote control + digital transmission 5.5” screen + Android + ground workstation | |
| Charger (NFC15) | 650w 15A dual channel | |
| Battery | 2*22000mAh | 2*22000mAh |
| Aluminum Case | √ | √ |
| Model | NSA610 | NSA622 |
| Rotor | 6 | 6 |
Hovering accuracy | +/- 1.5m | +/- 1.5m |
Hovering accuracy | +/- 0.5m | +/- 0.5m |
| Wind resistance | 4～5 | 4～5 |
| Motor | 6*180KV | 6*100KV |
| Electronic Speed Control | 80A | 80A |
| Motor applicable temperature | -20～50℃ | -20～50℃ |
| Paddle | 2388 | 3090 |
| Feed Tank | 10L | 22L |
| Take-off Capacity | 30kg | 42kg |
| Flying Time (with payload) | 10~15min | 10~15min |
| Flying distance | 5000m | 5000m |
| Working distance | 2000m | 2000m |
| Flying Speed | 0~10m/s | 0~10m/s |
| Spreading Width | 3~6m | 3~6m |
| Spread Distance | 2~5m | 2~5m |
| Solid particles | 0.5~6mm | 0.5~6mm |
| Expand Size | 1992*1992*562mm | 2428*2428*600mm |
| Wheelbase | 1407mm | 1648mm |
| Folded Size | 945*848*562mm | 1102*979*600mm |
| Battery / Quantity | 6S/22000mAh / 2pcs | 6S 22000mAh / 2pcs |
| FPV Camera | Optional | Optional |
| Obstacle avoidance radar | Optional | Optional |
| Terrain following radar | Optional | Optional |
| RTK centimeter positioning | Optional | Optional |
APP Ground Workstation
1. Android mobile phone ground workstation, Control and adjust drone’s flying parameter, provide google map, check FPV video.
2. Support hand held GPS dot device,RTK dot device,Drone GPS dot and Map for choosing, set up Automatic, semi-automatic AB working mode, flying height, spray mode, flight line spacing, flying speed, Terrain following, automatic obstacle avoidance, course adjustment, fail-sail back.
3. Query job record, flight time, spray width, dose etc.
Integrated power system
1. Support system upgrade
2. Sturdy, reliable and impact resistant
3. Highlight the LED display
4. High lift, high efficiency propeller
5. Intelligent multiple redundancy protection, running data real-time output
6. Modular design, easy maintenance
8. The PMSM algorithm based on FOC is optimized to create a perfect dynamic system
