Flying 60 Minutes Industrial Grade Drone For Power Line

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NPA-630
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Aluminum Box
Delivery Time: 15~25 days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month.
Type: Industrial Grade Drone For Power Line Max Flying Time: 60minutes
Working Time: 30~60min With 0~12kgs Payload Max Takeoff Weight: 50kg
Payload: 0~12kg HD Camera: Zoom 14x
High Light:

Wind resistance industry drone


Flying 60 Minutes industry drone


Power Line industry UAV

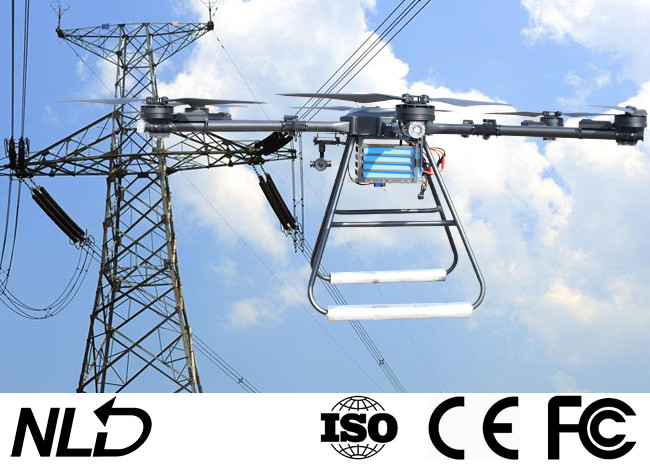

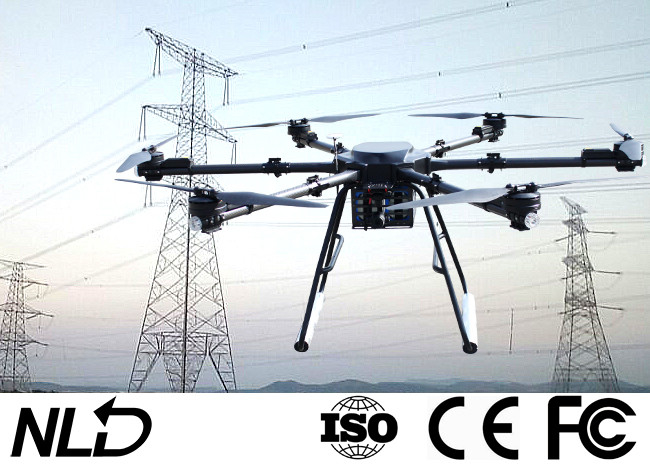

Industrial Grade Drone NPA-630 Power line Drone Flying 60 Minutes


NPA-630 for power line, it can work for full construction section, long time flying suitable for smart cities, police safety, road traffic, environmental protection and water conservancy, power line inspection, emergency rescue, oil pipeline inspection, surveying and other fields.


Max flying time >60minutes Working time 30~60min with 0~12kgs payload
Max takeoff weight 50kg Payload 0~12kg
HD Camera Zoom 14x Image transmission distance 10km
Horizontal speed 0~15m/s Wind resistance 6


Flying 60 Minutes Industrial Grade Drone For Power Line 0


Suspension components

NGC-C4K: 4K HD optical zoom gimbal


Gimbal weight 286g

►High resolution, zoom

12 million pixels, up to 4K recording

14 times zoom (3.5 times optical * 4 times digital)

►High stability

Jitter Angle: ±0.01°

►One-key to center

Double-click the target, center zoom function

►GPS information record

Superimpose GPS information display and save to subtitle file

Available SDK

Sky data interface and ground station SDK is available

►Object Tracking


General Parameter
Product NGC-C4K: 4K HD optical zoom gimbal
Working voltage 12V-25V
Power 6W
Weight 275g
Size 96*79*120mm
Interface Type Network interface
Control display mode Windows system PC; Android phone, tablet
Environment parameter
Working environment temp. -10℃ ~ 60℃
Storage environment temp. -20℃ ~70℃
Gimbal parameter
Jitter Angle ±0.01°
Installation method Detachable
Controllable rotation range Pitch/Tilt: +70°- -110°; Yaw/Pan: ±300°
Structure design scope Roll Pitch/Tilt: +75º- -100°; Yaw/Pan: ±310°; roll: +90°- -50°
Maximum control speed Pitch/Tilt: 120°/s; Yaw/Pan: 180°/s
Camera parameter
Visible 30x optical zoom lens
Sensor CMOS: 1/2.3″; 12.71 million total pixels; maximum resolution 4152*3062

3.5x optical zoom lens F 3.85~13.4mm

Minimum shooting distance: 1mm~3mm (near focus ~ far focus)

Field of view (horizontal): 82~25°

Image storage format JPEG
Video storage format MP4
Working method Video, photo
Fog penetration Electronic fog penetration
Exposure mode Automatic exposure and manual exposure



Maximum capture resolution: (4024*3036)

Minimum illumination Color: 0.5Lux/F2.4
2D noise reduction
3D noise reduction
Shutter speed 1/3- 1/30000s
Exposure Automatic support
Pointing zoom
Pointing zoom range 1~3.5 times optical
One-click zoom to single image
Support memory card type Micro SD card 128G (maximum)
