| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | NPA-630 |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Aluminum Box |
| Delivery Time: | 15~25 days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 100sets/month. |
| Working Time: | 30~60min With 0~12kgs Payload | Image Transmission Distance: | 10km |
|---|---|---|---|
| Payload: | 0~12kg | Max Flying Time: | >60minutes |
| Charger: | Dual Channel Smart Charger | Li-battery: | Super Lip Battery 12S 30000mAh |
| High Light: | 12kg Payload Industrial Grade Drone,HD Camera Industrial Grade Drone,Aerial Emergency Surveillance Patrol industrial UAV |
||

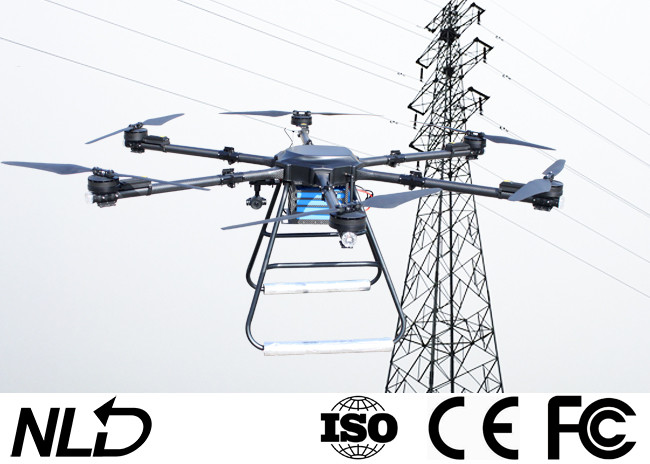

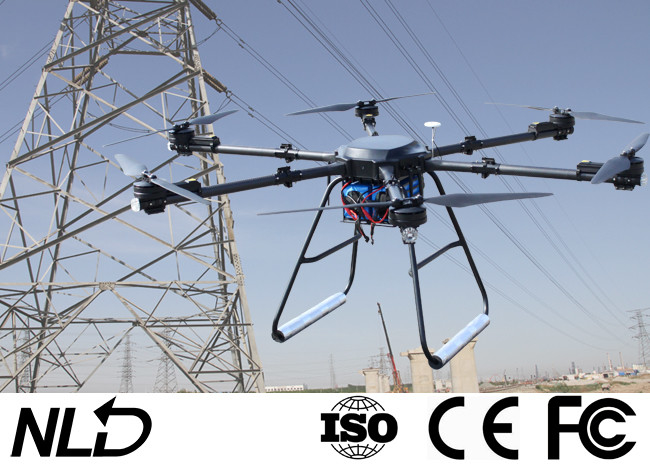

Industrial Grade Drone For Aerial Emergency Surveillance Patrol With Camera
Quick Details:
|
APP Ground Workstation |
|
|
Support hand held GPS dot device,RTK dot device,Drone GPS dot and Map for choosing, set up Automatic, semi-automatic AB working mode, flying height, spray mode, flight line spacing, flying speed, Terrain following, automatic obstacle avoidance, course adjustment, fail-sail back. |
|
Android mobile phone ground workstation, Control and adjust drone’s flying parameter, provide google map, check FPV video. |
|
Query job record, flight time, spray width, dose etc. |
Suspension components
NC01 FPV Camera
| General Parameter | |
| Product | Digital camera |
| Working voltage | 5V |
| Working current | 180mA |
| Weight | 67g |
| Size | 71*51*48mm |
| Interface Type | Network interface |
| Control display mode | Windows system PC; Android phone, tablet |
| Environment parameter | |
| Working environment temp. | -10℃ ~ 50℃ |
| Gimbal parameter | |
| Gimbal | Single axis |
| Controllable rotation range | Pitch: +10°- -90° |
| Camera parameter | |
| Resolution | 720P |
| Working method | Video, photo |
| Support memory card type | Micro SD card 128G (maximum) |
Remote controller
720/1080P digital HD image transmission
NIRC10-3HDS integrated digital image transmission system, supports HDMI and network port two video source input, supports more video devices such as cameras, PTZ, pods, built-in HD FPV APP, supports video floating window function, can be displayed on any ground station APP Image, support video window scaling of any size, support the original QGroundControl video display function, open the video SDK for video integrated development.
Industrial equipment level protection
Unmanned aerial vehicles work in harsh outdoor conditions. The NIRC10-3HDS is protected from dust and splashes on the fuselage, control switches, and peripheral interfaces to ensure stable and smooth operation of the equipment in harsh environments.
Ultra long transmission distance
Using the new long-distance image transmission system, with the latest anti-interference radio frequency algorithm, the image remote control distance is as far as 8km, allowing you to explore a wider space without worrying about the flying distance during flight operations.
Removable high-performance lithium battery
The high-performance lithium battery, low internal resistance, 6 hours long battery life, and stable battery curve provide stable power for the iUAV OS system, and can quickly replace the battery to ensure continuous operation.
Highlight HD display
The 5.5-inch high-brightness high-definition display can clearly view real-time display information under strong light conditions.
