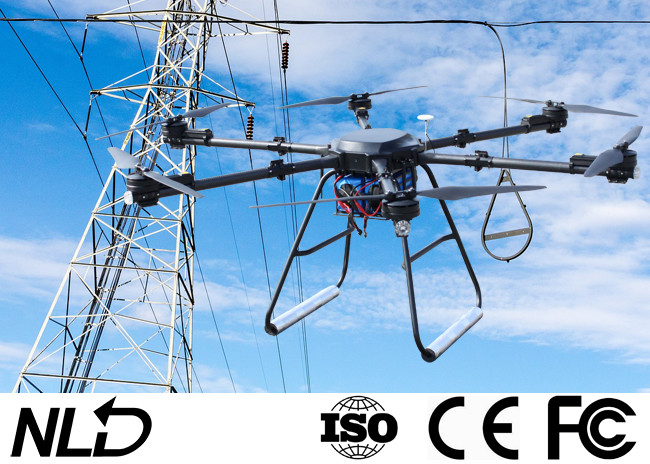

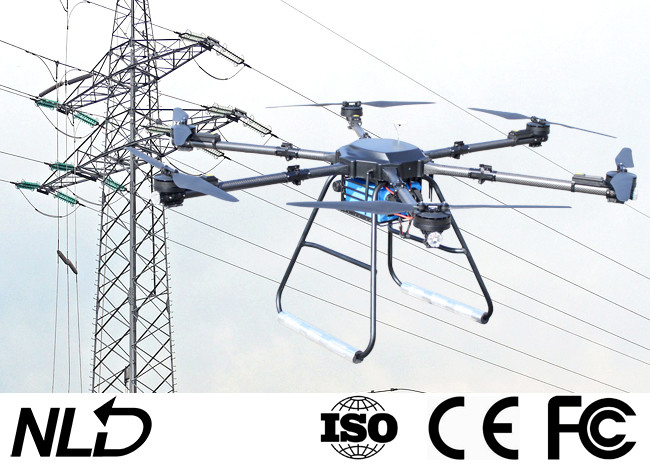

Wind Resistant Industrial Inspection Drones With Highlight Tablet For River Conservancy Inspection

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NPA-630
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Aluminum Box
Delivery Time: 15~25 days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month.
Type: Industrial Grade Drone For River Conservancy Inspection Flight Control: Three-axis Sensor / Three-axis Accelerometer
Li-battery: Super Lip Battery 12S 30000mAh Max Takeoff Weight: 50kg
Working Time: 30~60min With 0~12kgs Payload Wind Resistance: 6
High Light:

Wind resistant industrial inspection drones

,

industrial inspection drones With Highlight Tablet

,

River Conservancy Inspection industry spec drones

Industrial Grade Drone With Highlight Tablet With Android System Remote Controller


ModelNPA-630
Max flying time>60minutes
Max takeoff weight50kg
HD CameraZoom 14x
Horizontal speed0~15m/s

Working time

30~60min with 0~12kgs payload

Payload

0~12kg

Image transmission distance

10km

Wind resistance

6

Applications

Aerial emergency surveillance patrol

Power inspection

River conservancy inspection

3D Sand Table Modeling of Emergency Disaster

Emergency communication network relay

Road patrol


Wind Resistant Industrial Inspection Drones With Highlight Tablet For River Conservancy Inspection 0


Suspension components

NGC-C4K: 4K HD optical zoom gimbal

Wind Resistant Industrial Inspection Drones With Highlight Tablet For River Conservancy Inspection 1

Lightweight
Gimbal weight 286g

High resolution, zoom
12 million pixels, up to 4K recording
14 times zoom (3.5 times optical * 4 times digital)

High stability
Jitter Angle: ±0.01°

One-key to center
Double-click the target, center zoom function

GPS information record
Superimpose GPS information display and save to subtitle file
Available SDK
Sky data interface and ground station SDK is available

Object Tracking

General Parameter

Product

NGC-C4K: 4K HD optical zoom gimbal

Weight

275g

Working voltage

12V-25V

Control display mode

Windows system PC; Android phone, tablet

Power

6W

Size

96*79*120mm

Interface Type

Network interface

Gimbal parameter

Jitter Angle

±0.01°

Controllable rotation range

Pitch/Tilt: +70°- -110°; Yaw/Pan: ±300°

Structure design scope Roll

Pitch/Tilt: +75°- -100°; Yaw/Pan: ±310°; roll: +90°- -50°

Maximum control speed

Pitch/Tilt: 120°/s; Yaw/Pan: 180°/s

Installation method

Detachable

Environment parameter

Storage environment temp.

-20℃ ~70℃

Working environment temp.

-10℃ ~ 60℃

Camera parameter

Visible 30x optical zoom lens

Sensor

CMOS: 1/2.3″; 12.71 million total pixels; maximum resolution 4152*3062

Image storage format

JPEG

Lens

3.5x optical zoom lens F 3.85~13.4mm
Minimum shooting distance: 1mm~3mm (near focus ~ far focus)
Field of view (horizontal): 82~25°

Fog penetration

Electronic fog penetration

Minimum illumination

Color: 0.5Lux/F2.4

Exposure mode

Automatic exposure and manual exposure

Video storage format

MP4

Shutter speed

1/3- 1/30000s

Working method

Video, photo

Resolution

25fps(3840*2160)
25fps(1920*1080)
Maximum capture resolution: (4024*3036)

Exposure

Automatic support

Pointing zoom range

1~3.5 times optical

Support memory card type

Micro SD card 128G (maximum)

2D noise reduction

3D noise reduction

Pointing zoom

OSD

One-click zoom to single image
