| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | XRotor X9 |
| Minimum Order Quantity: | 2 sets |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 15~25 days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 2000sets/month. |
| Type: | XRotor X9 Power System Combo | Max. Thrust: | 19.2kg/Axis (46V, Sea Level) |
|---|---|---|---|
| Recommended Takeoff Weight: | 7-9.5kg/Axis (46V, Sea Level) | Recommended LiPo Battery: | 12S (LiPo) |
| Operating Temperature: | -20-55°C | Combo Weight: | 1400g |
| High Light: | Waterproof Rating IPX7 Brushless Power System,Drone Brushless Power System,XRotor X9 Brushless Power System |
||

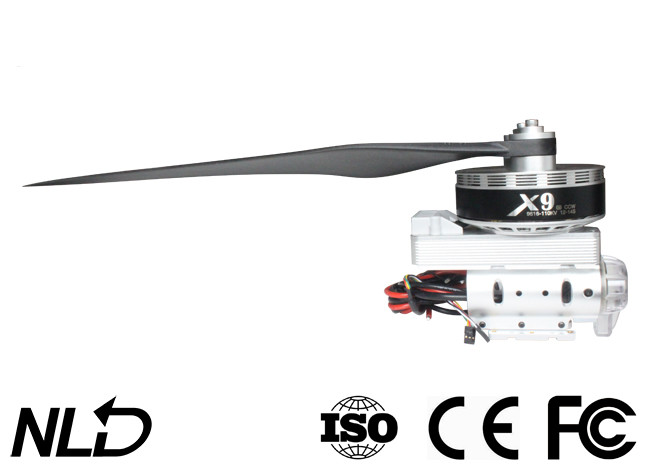

XRotor X9 Waterproof Rating IPX7 Brushless Power System for Drone
Introduction

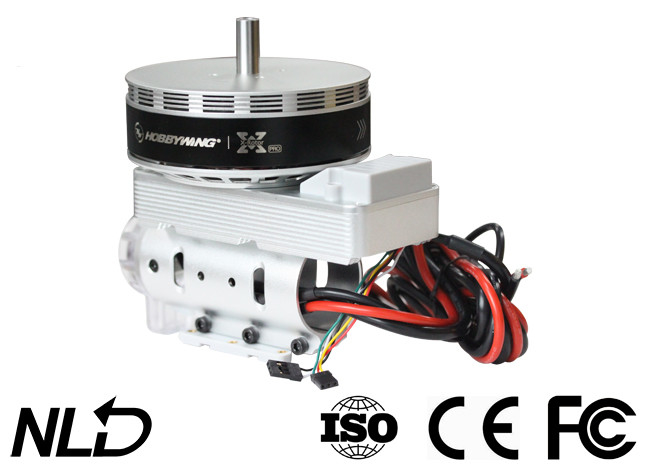

Integrated Structure
The x9B power system combo with an light-weight structure design integrates motor, ESC and motor mount together to make the installation & use simple and easy.
(Note: the carbon fber tube with a diameter of 40mm is needed here)
Super Waterproof
The x9B power system combo upgrades its waterproof design by adopting an enclosed. motor and a fully-sealed ESC with waterproof & anti-corrosive connect. It’s waterproof to lPX7 standard and applicable to different working/weather conditions
Super Big Load
The maximum thrust per axis can reach 22.5kg when pairing the x9B power system combo which features a FOC (Field Oriented Control) ESC with a 34-inch fold. able propeller; this combo is applicable to (7-9.5kg/axis) heavy-duty drones like a quadcopter with a load of 16kg.
More Smart & Compatible
Smart upgrades allow the x9B power system combo to have a smoother operation and a better compatibility with various flight controllers.
Programmable items like motor direction, response rate, light color, brake guarantee a more stable and reliable performance.
Outstanding Heat-dissipating & Impact-resistant Design
The integrated design, which increases the area for heat conduction to allow the use of a higher power (/input), combined with the centrifugal fan on the motor rotor make the operation of the x9B power system combo more reliable. The impact-resistant design beneath the ESC absorbs impact to protect the motor & ESC and reduce damage to the combo caused by crashes.
Auxiliary Functional Screw Holes & Wire
The screw holes reversed (for installing and fixing nozzle) at the bottom of the x9B power system combo and the built-in brushed centrifugal nozzle ESC (which can be connected to the nozzle via the wire) simplifies the installation for more agricultural drones.
Specifications
| Product Name | XRotor 9 Power System Combo |
| Specifications | |
| Max. Thrust | 19.2kg/Axis (46V, Sea Level) |
| Recommended Takeoff Weight | 7-9.5kg/Axis (46V, Sea Level) |
| Recommended LiPo Battery | 12S (LiPo) |
| Operating Temperature | -20-55°C |
| Combo Weight | 1400g |
| Waterproof Rating | IPX7 |
| Motor | |
| KV Rating | 110 KV |
| Stator Size | 96* 16mm |
| Tube Diameter | φ40 |
| Bearing | Imported Waterproof Bearing |
| ESC | |
| Recommended LiPo Battery | 6-12S LiPo |
| PWM Input Signal Level | 3.3V/5V(Compatible) |
| Throttle Signal Frequency | 50-500Hz |
| Operating Pulse Width | 1100- 1940us(Fixed or cannot be Programmed) |
| Max. Input Voltage | 52.2V |
| Max. Input Current (Cont.) | 120A(w/ Good Heat Dissipation) |
| Max. Peak Current (10s) | 150A(w/ Good Heat Dissipation) |
| BEC | No |
| Mounting Holes for Nozzle | φ28.4mm-2*M3 |
| Propeller | |
| Diameter x Pitch | 34.7x11 inch |
