450mm Height Drone For Power Line Inspection High Voltage Line Inspection

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NPA-805H
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Box
Delivery Time: 15~25 days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month.
Type: Powerline Drone For Tower And High Voltage Line Axle Distance: 1080mm
Height: 450mm Camera: Single Axis Gimbal 720P
Maximum Tension: 8kg No-load Endurance: 25-30min
High Light:

Tower drone for power line inspection


450mm height drone for power line inspection


ATT drone stringing transmission lines

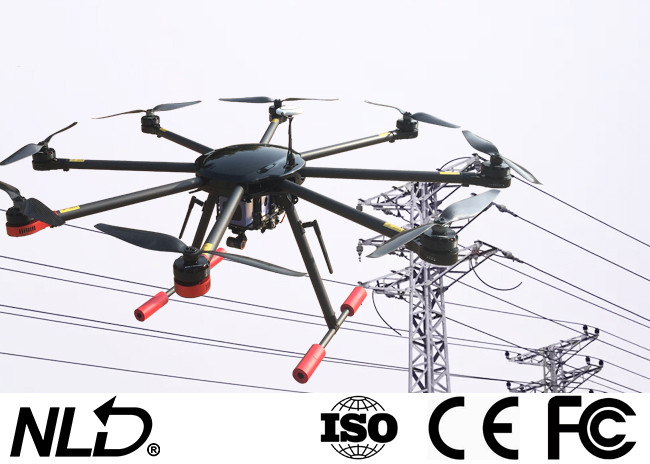

NPA-805H Powerline Drone for Tower and High Voltage Line Inspection


Model NPA-805H Height 450mm
Axle distance 1080mm Camera Single Axis Gimbal 720P
Fail-Safe with GPS with
Maximum tension 8kg No-load endurance 25-30min
Maximum take-off weight 14kg Load endurance 12-18min
Flying speed 0~15m/min Flight mode Manual control; ATT; GPS
Empty weight 4kg Battery 16000mAh 6S
Maximum flight distance 2-4km Flight height 0-1000m (adjustable)
Working Temperature -5℃---50℃ Diameter of traction rope 2-4mm
Functions: GPS positioning, full-auto return, semi-auto return, runaway protection, headless mode, heading lock, low-voltage protection alarm, battery power backhaul, national exclusive high beam function, OSD flight data real-time backhaul, etc.
1 Drone with DJI flight control system 1 set
2 Dual channel charger 1 set
3 Professional remote control 1 set
4 16000mah high quality battery 3 pcs
5 6.5” screen mobile phone 1 pcs
6 Battery voltage capacity checker 1 set
7 Tool kits 1 set
8 Aviation aluminum box 1 pcs
9 Spare screws 1 pack
10 Backup battery strap 4 pcs
11 Spare propeller 8 pcs


1. The above configuration remote control, battery, charger are brand accessories, better quality and more powerful. Equipped with brand battery, Dji Flight control system. If the amount of engineering is large and the drone needs to work for a long time, you can contact the procurement of batteries at any time in the later stage.

2. The drone function of our company covers all the functions in the market. It can be used in special situations such as crossing the railway line at night. Features include but are not limited to: GPS positioning, semi-automatic return, fully automatic return, headless mode, locked heading, low voltage protection alarm, out of control return, on-board electrical display, camera OSD return.
