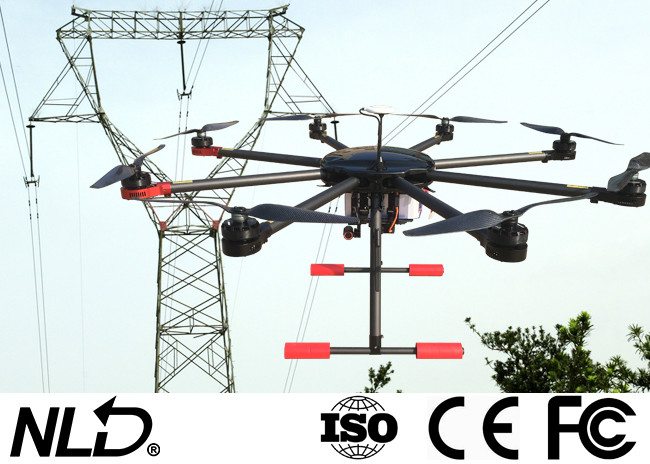

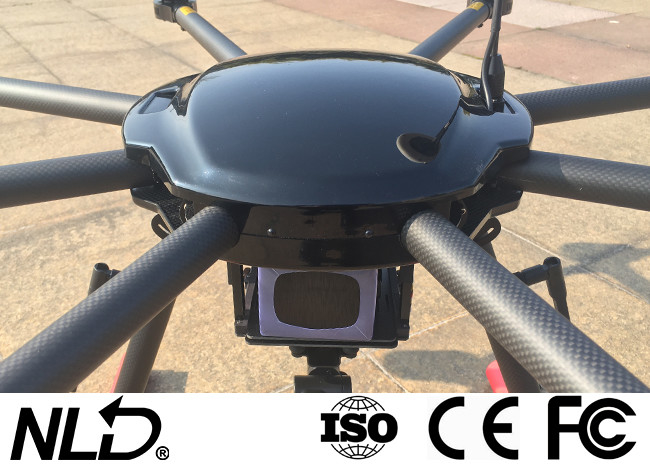

NPA-805H Transmission Line Inspection Drone With Single Axis Gimbal Camera 720P

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NPA-805H
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Box
Delivery Time: 15~25 days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month.
Type: Powerline Drone With Camera Camera: Single Axis Gimbal 720P
No-load Endurance: 25-30min Load Endurance: 12-18min
Flight Mode: Manual Control; ATT; GPS Flying Speed: 0~15m/min
High Light:

FCC transmission line inspection drone


transmission line inspection drone with Camera


GPS drones to inspect power lines

NPA-805H Powerline Drone with Single Axis Gimbal Camera 720P




Axle distance 1080mm
Height 450mm
Fail-Safe with
Maximum tension 8kg


Single Axis Gimbal 720P

Maximum take-off weight 14kg

Flight height

0-1000m (adjustable)

Flying speed 0~15m/min
Empty weight 4kg

Diameter of traction rope


No-load endurance


Load endurance


Maximum flight distance 2-4km


16000mAh 6S

Working Temperature -5℃---50℃



Flight mode

Manual control; ATT; GPS


GPS positioning, full-auto return, semi-auto return, runaway protection, headless mode, heading lock, low-voltage protection alarm, battery power backhaul, national exclusive high beam function, OSD flight data real-time backhaul, etc.
1 Drone with DJI flight control system 1 set
2 Dual channel charger 1 set
3 Professional remote control 1 set
4 16000mah high quality battery 3 pcs
5 6.5” screen mobile phone 1 pcs
6 Battery voltage capacity checker 1 set
7 Tool kits 1 set
8 Aviation aluminum box 1 pcs
9 Spare screws 1 pack
10 Backup battery strap 4 pcs
11 Spare propeller 8 pcs
NPA-805H Transmission Line Inspection Drone With Single Axis Gimbal Camera 720P 0


  1. The trees in the virgin forests often encounter bushes, virgin forests, etc. during the construction of the national grid. This will definitely affect the progress of the construction. When passing through the virgin forest, the trees cannot be felled. This undoubtedly adds a lot of difficulty to the construction of the project, and with the lined drone, it is easy to fly over the trees and cast a guide rope to the ground.
  2. In the traditional wire-laying operation on the Yangtze River, the tow rope can only be towed by the tugboat over the water surface. The construction water surface must be sealed first. The closure of the navigation will also cause many economic losses to the country and the construction party. The personnel stood on the ship and remotely dragged the helicopter of the guide rope so that the guide rope could fly over the Yangtze River and avoid sealing.
  3. In the construction will also encounter swamps, lakes, farmland, highways, mountains, etc., when people are unable to achieve the construction of the line, the line of drones also show their talents, complete the task.
  4. The situation of charging across the power usually exists in the process of circuit reconstruction. It is necessary to straddle a new line on the basis of a power-on line. In order to ensure the safety of construction workers, traditional construction can only be used first. After the line is powered off and then constructed, the overhead drone can be used to avoid power outages.
