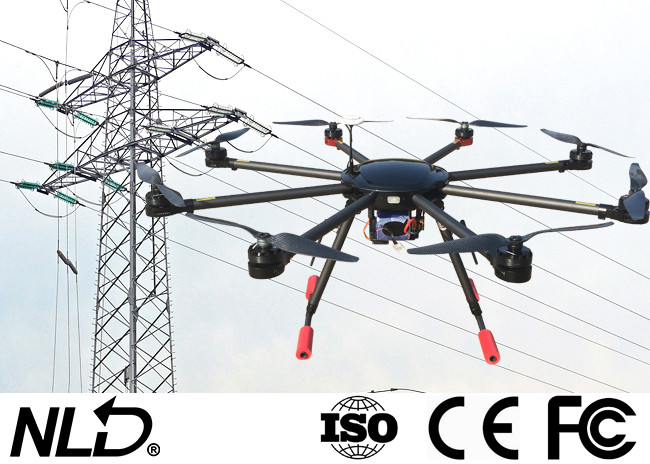

15m/Min Flying Speed Powerline Drone For Transmission High Voltage Line

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NPA-805H
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Box
Delivery Time: 15~25 days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month.
Type: Powerline Drone For Transmission High Voltage Line Maximum Take-off Weight: 14kg
Axle Distance: 1080mm Flying Speed: 0~15m/min
Battery: 16000mAh 6S Diameter Of Traction Rope: 2-4mm
High Light:

uav power line inspection


15m/Min Flying speed Powerline Drone


Powerline Drone for High Voltage Line

Powerline Drone Maximum Tension 8kg For Transmission High Voltage Line

Product parameters
Maximum tension8kg
Working Temperature-5℃---50℃
Empty weight4kg
Axle distance1080mm
Maximum flight distance2-4km
No-load endurance25-30min
Load endurance12-18min
Flight height0-1000m (adjustable)
Flying speed0~15m/min
Maximum take-off weight14kg
Flight modeManual control; ATT; GPS
Diameter of traction rope2-4mm
CameraSingle Axis Gimbal 720P
Battery16000mAh 6S

GPS positioning, full-auto return, semi-auto return, runaway protection, headless mode, heading lock, low-voltage protection alarm, battery power backhaul, national exclusive high beam function, OSD flight data real-time backhaul, etc.


1Drone with DJI flight control system1 set
2Tool kits1 set
3Professional remote control1 set
4Dual channel charger1 set
5Battery voltage capacity checker1 set
66.5” screen mobile phone1 pcs
7Aviation aluminum box1 pcs
8Spare screws1 pack
916000mah high quality battery3 pcs
10Backup battery strap4 pcs
11Spare propeller8 pcs
  • The above configuration remote control, battery, charger are brand accessories, better quality and more powerful. Equipped with brand battery, Dji Flight control system. If the amount of engineering is large and the drone needs to work for a long time, you can contact the procurement of batteries at any time in the later stage.
  • The drone function of our company covers all the functions in the market. It can be used in special situations such as crossing the railway line at night. Features include but are not limited to: GPS positioning, semi-automatic return, fully automatic return, headless mode, locked heading, low voltage protection alarm, out of control return, on-board electrical display, camera OSD return.



1. Low requirements on topography,no limit on altitude,no problem in high altitude area;
2. High efficiency and high attendance rate, short adjustment time when taking off
3. The aircraft is light and flexible with little vibration;
4. Environmentally friendly and meets the requirements of national energy conservation and environmental protection;
5. Safer and can resist six levels of wind;
6. Easy to maintain, and low cost on use and maintenance;
7. More efficient, drag 3.5mm, 12 kgs of rope to 1000 meters.(Four-axis drag 2.0mm);
8. Payload of 2.0 dupont rope that can fly for 25 to 30 minutes;
9. Free operation training, welcome to our company to participate in and learn simple UAV maintenance technical service.
